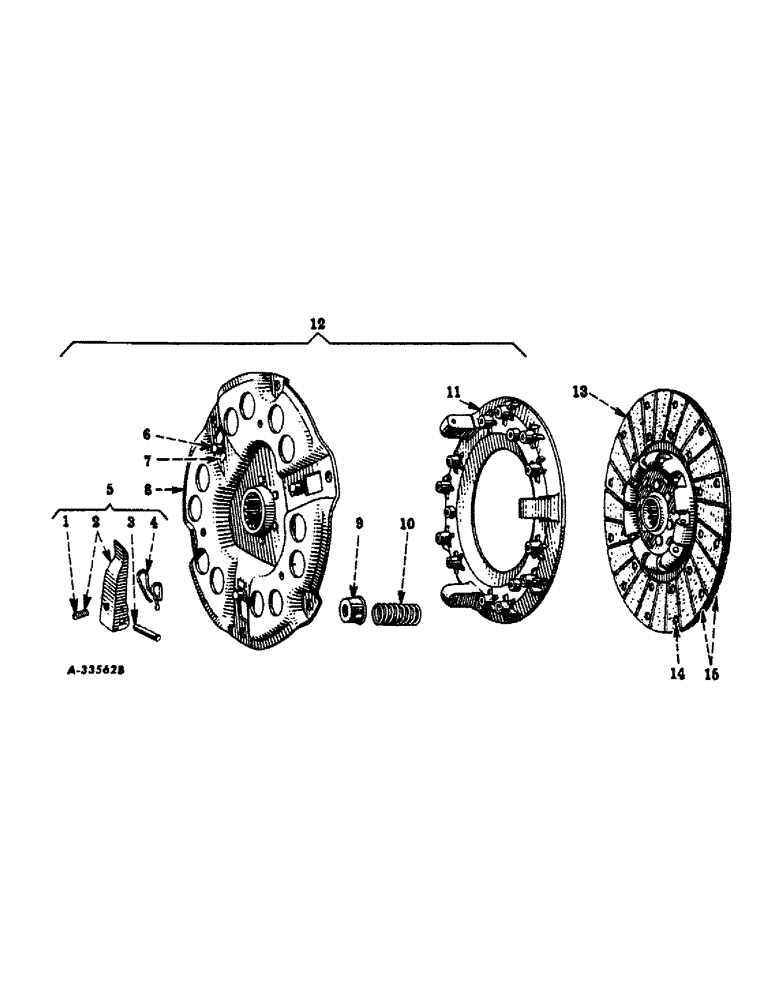

Запчасти Case IH 560 (125) - CLUTCH, CLUTCH, IH, 560 SERIES (03.1) - CLUTCH

389772A1

REMAN-CLUTCH KIT

Contains Plessure Plate, Release Bearing, Clutch Disc & Pilot Bearing

1шт.

389772A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

1

358307R1

SPARE PART SCREW, lever adjusting

3шт.

2

359015R11

SPARE PART LEVER, w/nut and screw assembly, clutch release

3шт.

3

358298R1

PIN

PIN, lever

3шт.

372420R1

SPARE PART PIN, 3/32 x 5/8" annealed cotter

3шт.

4

367899R1

SPARE PART SPRING, lever

3шт.

5

359041R93

ARM

PACKAGE ASSEMBLY, lever

1шт.

6

358294R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

353313R1

CLIP

CLIP, lever spring

3шт.

8

359122R94

PLATE

PLATE ASSEMBLY, back

1шт.

9

358292R1

SPARE PART CUP, clutch pressure spring

12шт.

10

369231R2

VALVE SPRING

SPRING, clutch pressure (10-1/2" coils) (regular duty)

12шт.

10

369232R92

SPARE PART PACKAGE, clutch pressure spring (consists of twelve springs, 369231R2) (regular duty)

1шт.

10

367256R92

SPARE PART PACKAGE, clutch pressure spring (consists of twelve springs) (heavy duty)

1шт.

11

358289R2

SPARE PART PLATE, pressure

1шт.

12

359121R98

COVER ASSY

PLATE ASSEMBLY, clutch pressure (optional with 360079R94)

1шт.

12

359121R98R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate, 12 in

1шт.

12

359121R98C

CORE-CLUTCH PLATE

Return Part Number

1шт.

13

375564R92

DISC

DISC ASSEMBLY, clutch driven (regular duty) (semi-metallic)

1шт.

13

384395R94R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 11Tooth hub, 1 13/64 in. OD of splines, 4 paddle

1шт.

13

384395R94C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

405299R92R

REMAN-CLUTCH PLATE

Reman - Clutch Plate - 12 in. FA, 17Tooth Hub, 12 springs, 1311 - 1518 plate load Remanufactured, Clutch Plate - 12 in, 17 Tooth hub

1шт.

13

405299R92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

13

375451R91

DISC

DISC ASSEMBLY, clutch driven (heavy duty) (full metallic)

1шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

RIVET, clutch facing

26шт.

15

375565R92

PACKAGE

FACING SET, clutch (consists of two facings, w/twenty six rivets, 37508D) (semi-metallic)

1шт.
