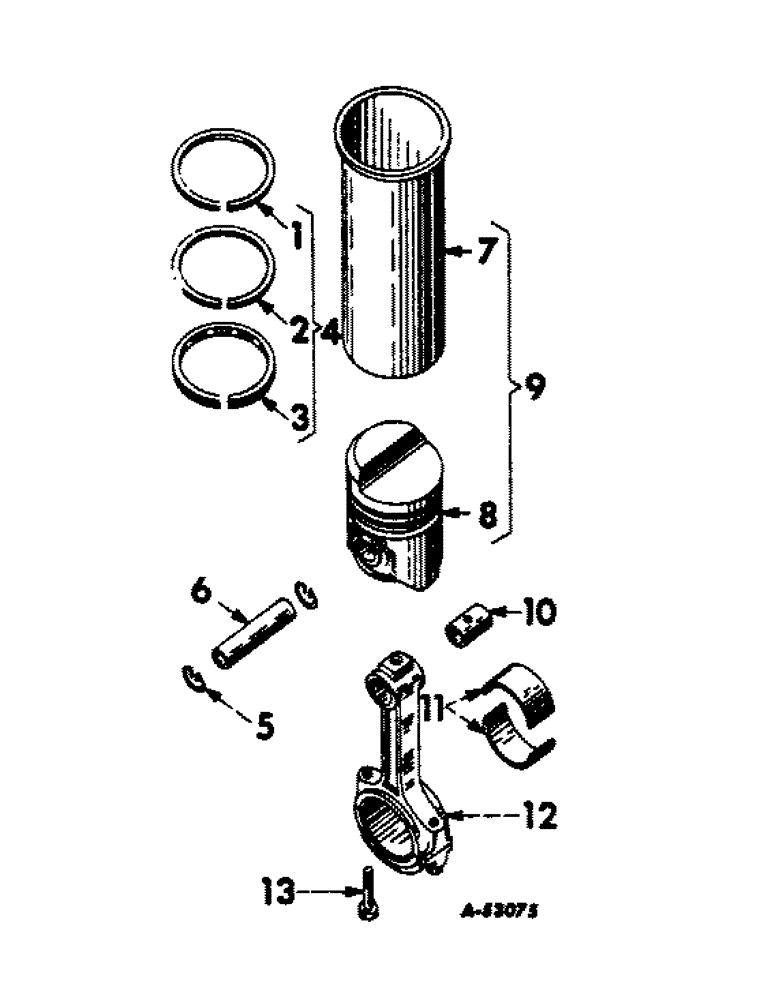

Запчасти Case IH 560 (021) - CARBURETED ENGINE, CONNECTING RODS AND SLEEVE SETS (01) - ENGINE

1

366266R1

RING

compression piston (top or first groove)

6шт.

2

366268R1

RING

compression piston (second groove)

6шт.

3

366269R91

RING, oil piston (third or bottom groove)

6шт.

4

367649R91

RING SET, pisotn (consists of twelve compression and six oil regulating rings)

1шт.

5

19517D

SPECIAL RING

RING, piston pin retaining

12шт.

6

278271R1

PISTON PIN

PIN, piston (standard)

6шт.

6

278326R1

PIN

piston (.005" oversize)

6шт.

7

SLEEVE, cylinder (order sleeve, piston and rings assembly, for proper fuel and altitude)

6шт.

8

PISTON, (order sleeve, piston and rings assembly, for proper fuel and altitude)

6шт.

9

367639R91

SLEEVE SET, crankcase (consists of six sleeves 367640R91) (gasoline-standard altitude)

1шт.

9

371833R91

PISTON ASSY.

SLEEVE SET, crankcase (consists of six sleeves, 372084R91) (gasoline-high altitude)

1шт.

9

371090R91

SLEEVE SET, crankcase (consists of six sleeves 371092R91) (LP gas)

1шт.

9

367640R91

PISTON ASSY.

SLEEVE ASSEMBLY, cylinder (gasoline-standard altitude), composed of (1) ring 366268R1, (1) pin 278271R1, (1) piston 367642R1 (NSS), (2) ring 19517D, (1) ring 366266R1, (1) ring 366269R91, (1) sleeve 367645R1 (NSS)

6шт.

9

372084R91

PISTON

SLEEVE ASSEMBLY, cylinder (gasoline-high altitude), composed of (1) pin 278271R1, (1) piston 372078R1 (NSS), (2) ring 19517D, (1) ring 366266R1, (1) ring 366268R1, (1) ring 366269R91, (1) sleeve 367245R1 (NSS)

6шт.

9

371092R91

PISTON

SLEEVE ASSEMBLY, cylinder (LP gas), composed of (1) pin 278271R1, (1) piston 371094R1 (NSS), (2) ring 19517D, (1) ring 366266R1, (1) ring 366268R1, (1) ring 366269R91, (1) sleeve 367645R1 (NSS)

6шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSEMBLY, connecting rod (2 halves) (standard)

6шт.

11

367632R11

BEARING ASSY

BEARING ASSEMBLY, connecting rod (2 halves) (.002" undersize)

6шт.

11

376666R11

BEARING ASSY

ASSEMBLY, connecting rod (2 halves) (.010" undersize)

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSEMBLY, connecting rod (1 halves) (.020" undersize)

6шт.

11

367631R11

BEARING ASSY

ASSEMBLY, connecting rod (2 halves) (.030" undersize)

6шт.

11

367630R91

BEARING SET, connecting rod (standard) (consists of six bearings, 367408R11)

1шт.

11

377285R91

KIT

BEARING SET, connecting rod (.002" undersize) (consists of six bearings, 367632R11)

1шт.

11

376665R91

BEARING

SET, connecting rod (.010" undersize) (consists of six bearings, 376666R11)

1шт.

11

376667R91

KIT

BEARING SET, connecting rod (.020" undersize) (consists of six bearings, 376668R11)

1шт.

11

372443R91

KIT

BEARING SET, connecting rod (.030" undersize) (consists of six bearings, 367631R11)

1шт.

12

367406R12

ROD

w/two bolts, 316366R1 and bushing, 364913R1, assembly, connecting

6шт.

13

316366R1

BOLT,3/8" - 24 x 2"

connecting rod

12шт.
