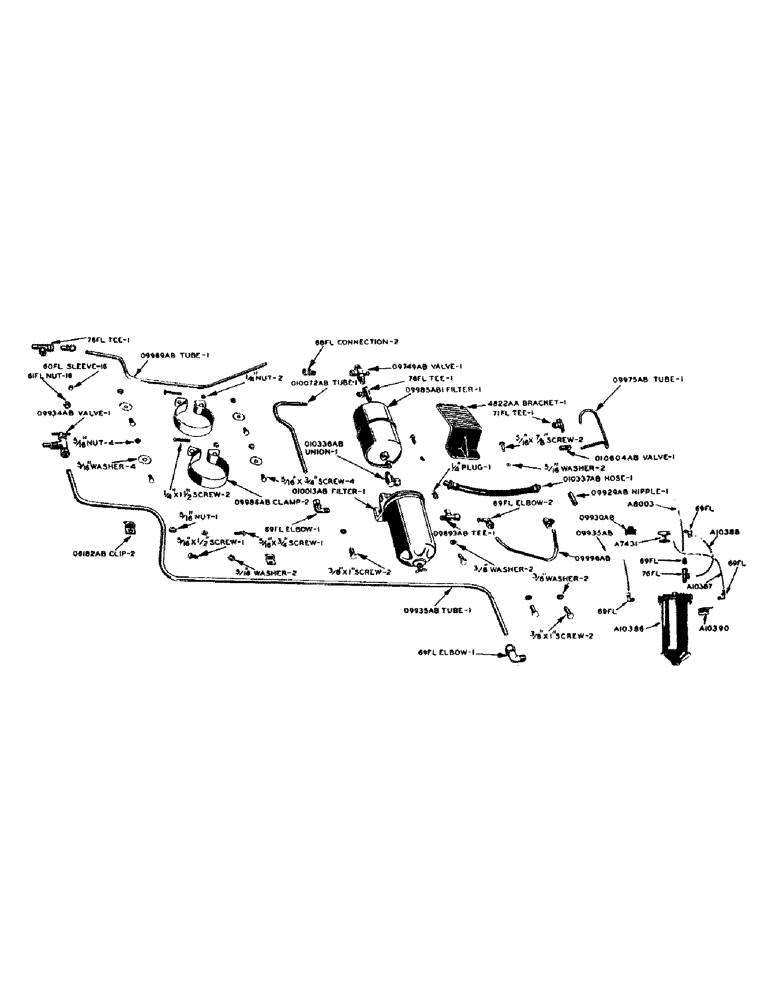

Запчасти Case IH 600-SERIES (022) - POWRCEL DIESEL ENGINE, FUEL TUBES AND FILTERS, FIRST STAGE FUEL FILTER AND TUBES (02) - ENGINE

A7431

VALVE

NEEDLE VALVE - fuel filter by-pass

1шт.

IMPERIAL FLEX ELBOW, no. 69FL (1/4" tube size x 1/8" P.T.) connects valve to bleeder by-pass tube

1шт.

A10386

SPARE PART

FILTER - first stage fuel

1шт.

1/4" X 3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

A10387

TUBE

- first stage filter to fuel pump (3/8" tubing) w/60FL sleeve and 61FL nut

1шт.

IMPERIAL FLEX 45 DEGREE ELBOW NO. 94FL (3/8" tube size x 1/4" P.T.) connects tube to fuel pump

1шт.

A13088

CAP

TUBE - first stage filter by-pass (1/4" tubing) w/60FL sleeve and 61FL nut

1шт.

IMPERIAL FLEX TEE #76FL (1/4" tube size x 1/8" P.T.)

1шт.

A10390

BRACKET

- first stage fuel oil filter

1шт.

3/8" X 7/8" N.C. HEX. HD. CAP SCREW

2шт.

O9929AB

X

NIPPLE - brass pipe (1/4" x 1-1/2" long) connects O9930AB tee to fuel pump

1шт.

O9930AB

X

TEE - (1/4") brass female, for fuel pump

1шт.

O9935AB

TUBE - fuel tank to first stage filter (3/8" tubing) w/60FL sleeve and 61FL nut

1шт.

O9893AB

TEE - (1/4") for second stage filter and tubes

1шт.

1/4" SQ. HD. PIPE PLUG, second stage fuel filter and tubes

1шт.

O9996AB

TUBE - fuel pump to second stage filter (5/16") w/60FL sleeve and 61FL nut

1шт.

O10013AB

FILTER - second stage fuel (Model B6-1984)

1шт.

3/8" X 1" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, second stage fuel filter and tubes

2шт.

O10072AB

TUBE - second stage filter to final stage filter w/60FL sleeve and 61FL nut, tubes

1шт.

IMPERIAL FLEX TEE NO. 76FL (5/16" tube size x 1/4" P.T.) connects tube to top of final stage filter, second stage

1шт.

IMPERIAL FLEX ELBOW, no. 69FL (5/16" tube size x 1/4" P.T.) connects tube to second stage filter

1шт.

O9749AB

VALVE - relief (American Bosch no. VA7928A), final stage fuel filter and tubes

1шт.

O9985AB1

FILTER - final stage fuel and tubes

1шт.

O9986AB

CLAMP - final stage filter and tubes

2шт.

5/16" X 3/4" N.F. HEX. HD. CAP SCREW W/HEX. NUT, final stage fuel filter and tubes

4шт.

5/16" NO. 4018-24 SHAKEPROOF EXTERNAL-INTERNAL LOCKWASHER, final stage fuel filter and tubes

4шт.

1/4" X 1-1/2" N.C. RD. HD. MACH. SCREW W/HEX. NUT, final stage fuel filter and tubes

2шт.

O9989AB

TUBE - leak-off, relief valve to fuel tank (5/16" tubing) w/60FL sleeve and 61FL nut, final stage filter

1шт.

IMPERIAL FLEX CONNECTION, no. 68FL (5/16" tube size x 1/4" P.T.) Use on both end of tube, final stage fuel filter

2шт.

O10337AB

X

HOSE - final stage filter to fuel pump

1шт.

O10338AB

UNION

- 90 degree adapter, connects O10337AB hose to final stage filter and tubes

1шт.

4822AA

BRACKET - final stage filter and tubes

1шт.

5/16" X 7/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER, final stage fuel filter and tubes

2шт.
