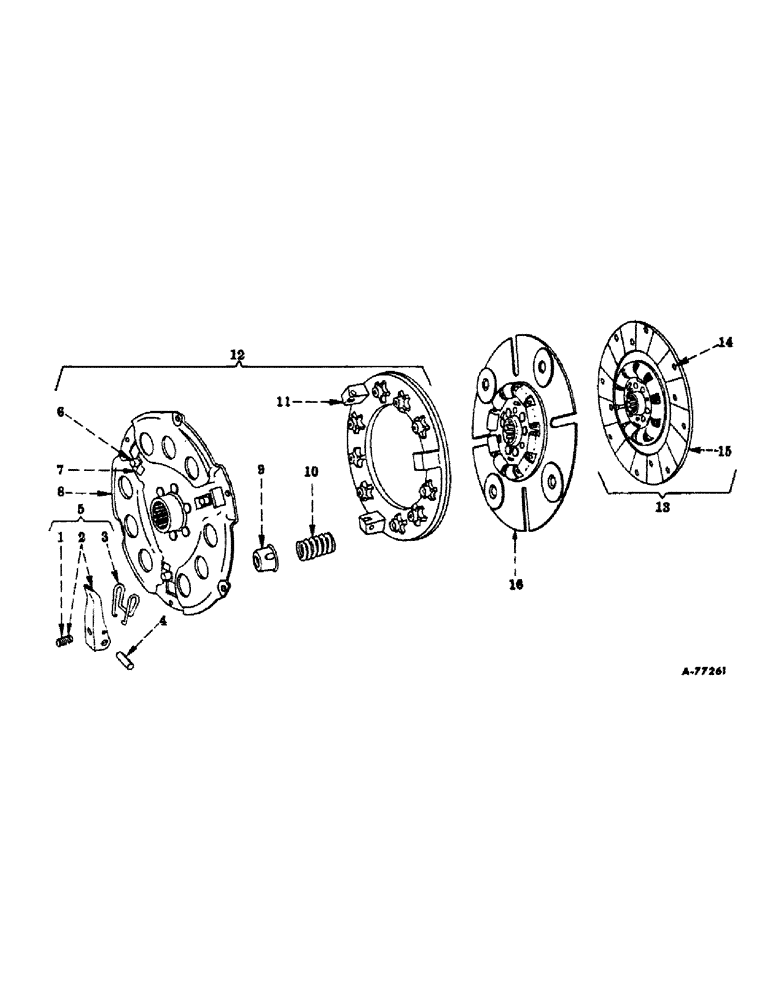

Запчасти Case IH 606 (096) - CLUTCH, CLUTCH, 10-1/2 INCH, I.H. (03.1) - CLUTCH

1

358307R1

SPARE PART SCREW, lever adjusting

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

NUT, Jam, 7/16"-20, G5

3шт.

2

376362R11

FINGER

LEVER W/NUT AND SCREW ASSEMBLY, clutch release

3шт.

3

376361R1

SPRING

SPRING, lever

3шт.

It is recommended that these parts be replaced in complete sets.

1шт.

4

358298R1

PIN

PIN, lever

3шт.

372420R1

SPARE PART PIN, 3/32 x 5/8" anl cotter

3шт.

5

376127R91

KNOB

PACKAGE ASSEMBLY, lever

1шт.

6

360854R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

353313R1

CLIP

CLIP, lever spring

3шт.

8

360851R93

BACKING PLATE

PLATE ASSEMBLY, back

1шт.

9

358292R1

SPARE PART CUP, clutch pressure spring (9 for regular duty; 6 for heavy duty)

1шт.

10

369229R2

VALVE SPRING

SPRING, clutch pressure (regular duty)

9шт.

10

380663R2

SPARE PART SPRING, clutch pressure (heavy duty)

6шт.

11

360848R2

PLATE

PLATE, pressure

1шт.

12

376360R92

PLATE

PLATE ASSEMBLY, clutch pressure (regular duty) (optional with 385936R91)

1шт.

12

380661R92

PLATE

PLATE ASSEMBLY, clutch pressure (heavy duty) (optional with 380665R92)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

375556R92

DISC

DISC W/FACING ASSEMBLY, clutch driven (regular duty) (semi-metallic) (order 384633R91)

1шт.

13

375857R91

DISC

DISC W/FACING ASSEMBLY, clutch driven (heavy duty) (full-metallic)

1шт.

14

61176V

RIVET

RIVET, clutch facing

12шт.

15

375558R92

FACING

FACING SET, clutch (consists of two facings w/twelve rivets, 61176V) (semi-metallic) (order 384633R91)

1шт.

16

384633R91

CLUTCH & DISC ASSY,263.65mm OD

DISC ASSEMBLY, clutch driven (Dyna-Life) (regular duty)

1шт.

16

384633R91R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 10 1/2 in., 10 Tooth Hub, 4 Paddle Disc Assembly

1шт.

16

384633R91C

CORE-CLUTCH DISC

Return Part Number

1шт.

388918R91

STRIPPER PACKAGE

PACKAGE, dvna-life clutch conversion (consists of disc 384633R91)

1шт.
