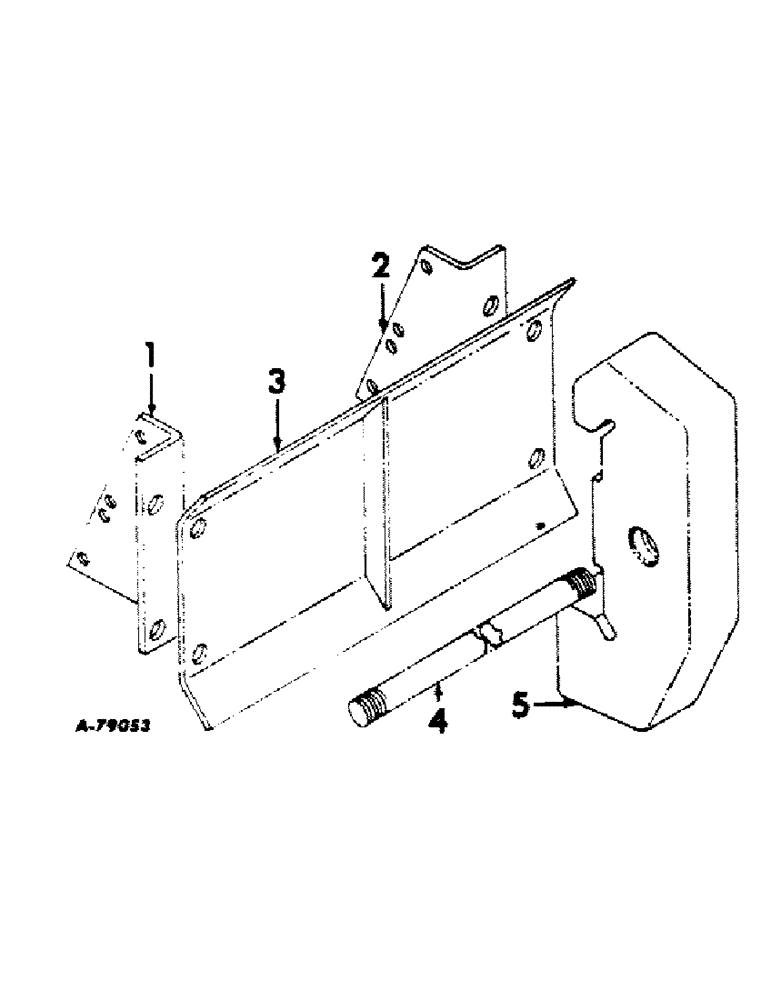

Запчасти Case IH 606 (172) - MISCELLANEOUS EQUIPMENT, FRONT END WEIGHT BRACKET & WEIGHTS, FOR USE ON TRACTORS EQUIPPED W/BACKHOE Miscellaneous Equipment

ATTACHMENT, front end weight (381229R91) (Also order the following parts (1) bracket 385533R1, (1) bracket 385534R1, (4) nuts 220081)

1шт.

1

385534R1

BRACKET, front and weight RH (not included in front end weight attachment)

1шт.

2

385533R1

BRACKET, front end weight LH (not included in front end weight attachment)

1шт.

220081

NUT

3/4" hex (not included in front end weight attachment)

4шт.

3

381214R11

PLATE, front weight mounting

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, 3/4 x 1-1/4" cap

4шт.

4

381217R1

SHAFT, front weight cross tie

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

427691

NUT

7/8" C-Z sq

1шт.

5

381216R1

WEIGHT

front end

8шт.

19628R91

NIPPLE, LUBE

FITTING, 1/8-27 taper drive thd lub (front axle pivot pin)

1шт.
