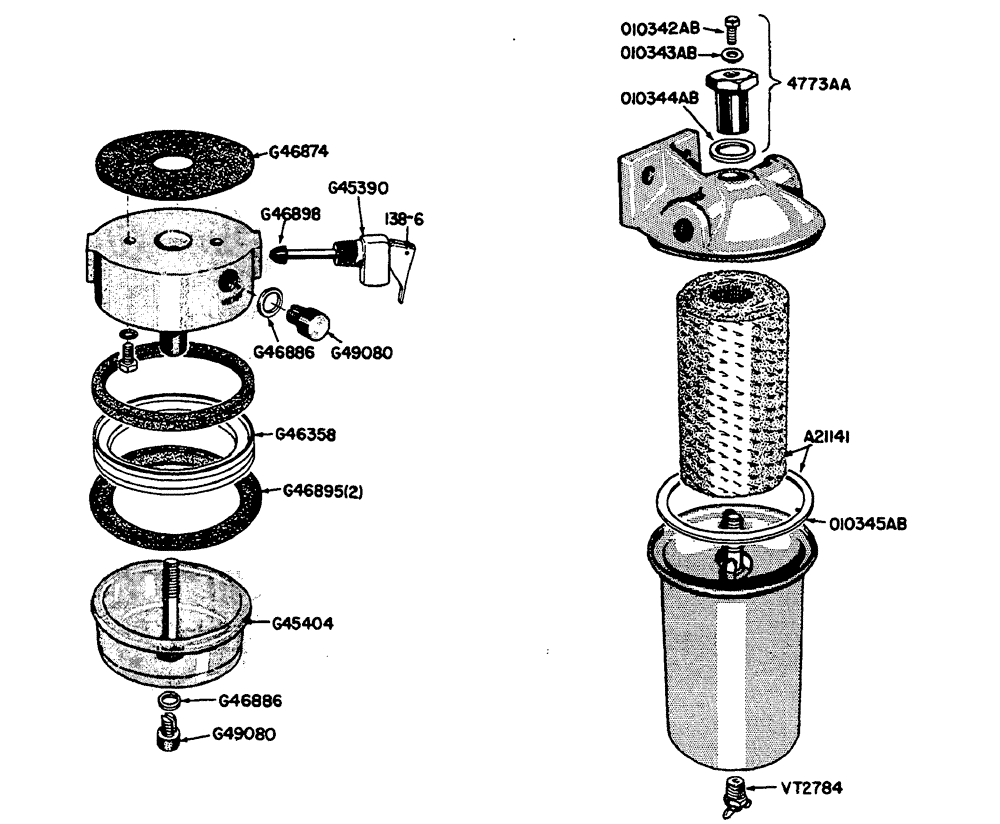

Запчасти Case IH 630 (038) - PARTS FOR FUEL BOWL AND FIRST STAGE FILTER (03) - FUEL SYSTEM

G45390

VALVE - shut-off, complete (includes seal and roll pin)

1шт.

G45404

BOWL

- sediment (includes screw, seal and retaining washer)

1шт.

G46358

ADAPTER -, Serial Range: bowl-body

1шт.

G46874

GASKET

- bowl assembly to tank (Not part of G45396)

1шт.

G46886

O-RING

GASKET - air vent and drain plug

2шт.

G46895

GASKET

- bowl and adapter

2шт.

G46898

SEAL - rubber, shut-off valve plunger

1шт.

G49080

PLUG

SCREW - air vent and drain plug

2шт.

138-6

LOCK PIN,1/16" x 1/2", Slotted

ROLL PIN - shut-off lever (1/16" x 1/2")

1шт.

A21141

FILTER, ELEMENT

ELEMENT - (includes 010345AB gasket), parts for G45359 first stage filter

1шт.

4773AA

NUT - clamp, parts for G45359 first stage filter

1шт.

010342AB

VALVE - bleeder, parts for G45359 first stage filter

1шт.

010343AB

GASKET - bleeder valve, parts for G45359 first stage filter

1шт.

O10344AB

X

GASKET - clamp nut, parts for G45359 first stage filter

1шт.

010345AB

GASKET - filter body, parts for G45359 first stage filter

1шт.

VT2784

X

DRAIN cock, parts for G45359 first stage filter

1шт.
