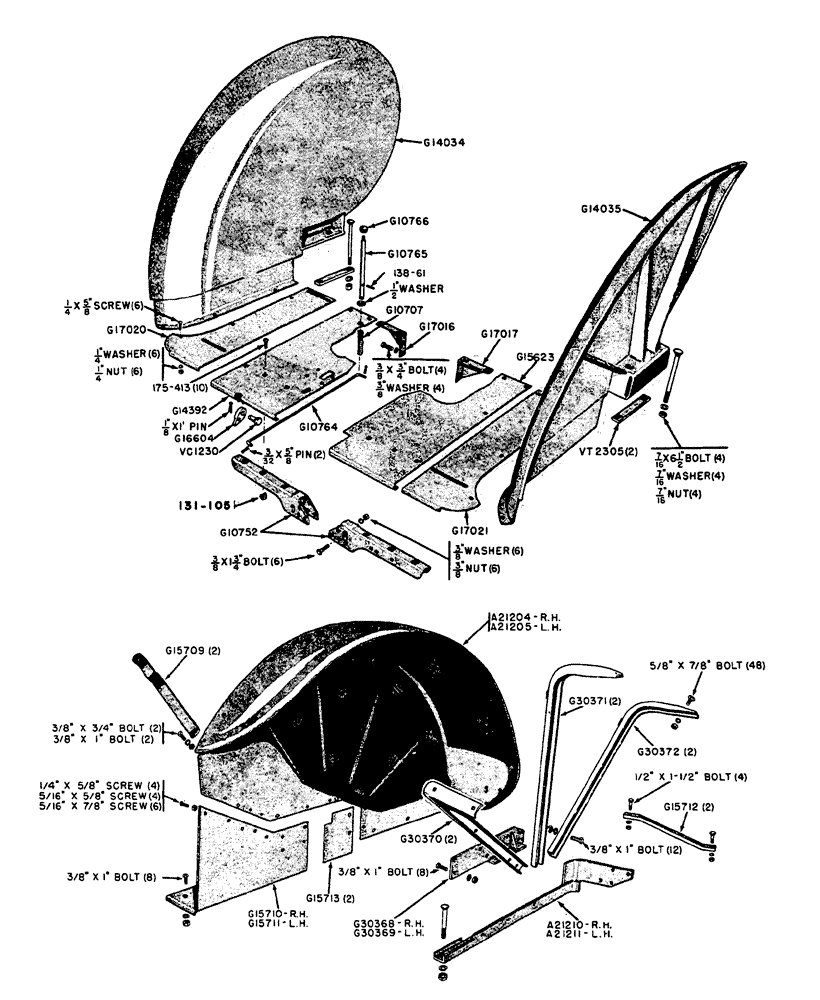

Запчасти Case IH 630 (130) - STEP PLATES AND FENDERS (09) - CHASSIS

G10707

VALVE SPRING

brake release lever

1шт.

G10752

SPARE PART front, step plate

2шт.

3/8" x 1-3/4" N.C. hex hd. bolt w/hex nut and lockwasher

6шт.

G10764

DRAG LINK

connecting, Serial Range: lever-pawl

1шт.

3/32" x 5/8" cotter pin (132-25)

2шт.

G10765

LEVER

SPARE PART hand, brake release

1шт.

1/2" plain washer

1шт.

G10766

KNOB

brake release lever

1шт.

G14034

FENDER - R.H.

1шт.

G14035

FENDER - L.H.

1шт.

G14392

PLATE - step, R.H. inside

1шт.

G15623

PLATE - step, L.H. inside

1шт.

G16604

BRAKE LINE

PANEL - lock

1шт.

G17016

SUPPORT - rear, R.H. step plate

1шт.

3/8" x 3/4" N.C. hex hd. bolt w/lockwasher

2шт.

G17017

SUPPORT - rear, L.H. step plate

1шт.

3/8" x 3/4" N.C. hex hd bolt w/lockwasher

2шт.

G17020

EXTENSION - R.H. step plate

1шт.

1/4" x 5/8" rd. hd. mach. screw w/hex nut and lockwasher

3шт.

G17021

EXTENSION - L.H. step plate

1шт.

1/4" x 5/8" rd. hd. mach. screw w/hex nut and lockwasher

3шт.

13J-105

NUT - step plates to supports (5/16" cage nut)

10шт.

VT2305

SPARE PART CLAMP - fender to axle housing

2шт.

7/16" x 6-1/2" carr bolt w/hex nut and lockwasher

4шт.

VC1230

SPARE PART PIN - pivot, brake pedal pawl

1шт.

1/8" x 1" cotter pin (132-48)

1шт.

138-61

LOCK PIN,1/8" x 1", Slotted

Brake release lever

1шт.

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

step plate to support (5/16" x 3/4" Philips truss hd.)

10шт.

A21204

FENDER - R.H., step plates and fenders (western special tractor)

1шт.

3/8" x 7/8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

3шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.

A21205

FENDER - L.H., step plates and fenders (western special tractor)

1шт.

3/8" x 7/8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

3шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.

A21210

ANGLE - support, R.H. fender, step plates and fenders (western special tractor)

1шт.

A21211

ANGLE - support, L.H. fender, step plates and fenders (western special tractor)

1шт.

G15709

BRACE - front, fender, step plates and fenders (western special tractor)

2шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher, step plates and fenders (western special tractor)

2шт.

3/8" x 3/4" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

G15710

EXTENSION - R.H. step plate, step plates and fenders (western special tractor)

1шт.

1/4" x 5/8" N.C. truss hd. mach screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

5/16" x 5/8" N.C. truss hd. mach screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

5/16" x 7/8" N.C. truss hd. mach screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

3шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

1шт.

G15711

EXTENSION - L.H. step plate, step plates and fenders (western special tractor)

1шт.

1/4" x 5/8" N.C. truss hd. mach. screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

5/16" x 5/8" N.C. truss hd. mach. screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

5/16" x 7/8" N.C. truss hd. mach. screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

3шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

1шт.

G15712

BRACE - rear fender, step plates and fenders (western special tractor)

2шт.

1/2" x 1-1/2" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.

G15713

SHIELD - lower, fender, step plates and fenders (western special tractor)

2шт.

5/16" x 1/2" N.C. truss hd. mach screw w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.

G30368

BASE - R.H. fender, step plates and fenders (western special tractor)

1шт.

5/8" x 8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

G30369

BASE - L.H. fender, step plates and fenders (western special tractor)

1шт.

5/8" x 8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

2шт.

G30370

SUPPORT - front, fender, step plates and fenders (western special tractor)

2шт.

5/16" x 7/8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

8шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.

G30371

SUPPORT - center, fender, step plates and fenders (western special tractor)

2шт.

5/16" x 7/8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

8шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.

G30372

SUPPORT - rear, fender, step plates and fenders (western special tractor)

2шт.

5/16" x 7/8" carr. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

8шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher, step plates and fenders (western special tractor)

4шт.
