(012) - RADIATOR AND CONNECTIONS

Запчасти Case IH 630 (012) - RADIATOR AND CONNECTIONS (02) - ENGINE

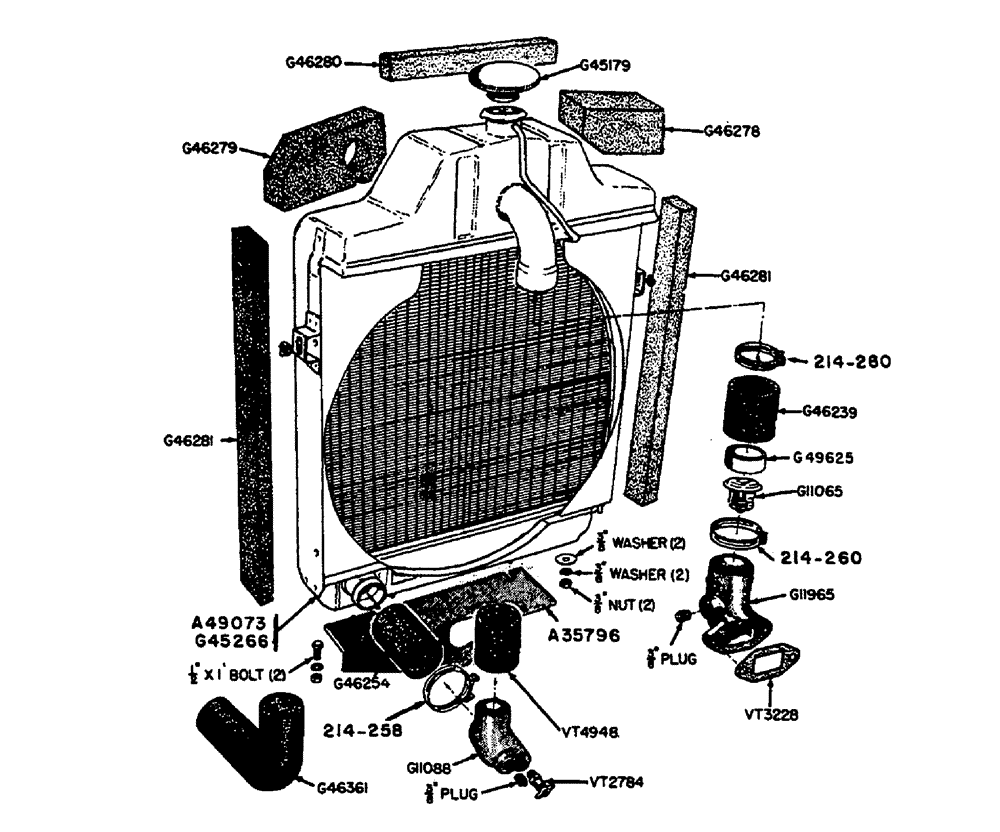

Схема запчастей Case IH 630 - (012) - RADIATOR AND CONNECTIONS (02) - ENGINE
vt3228
214-260
a49073
g46281
g46280
g11088
g49625
214-260
g46281
vt4948
g46239
214-258
g46361
g11965
g11065
g46254
g45179
g46278
g45266
vt2784
a35796
g46279
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G1154

ELBOW - lower (Use G11088)

1шт.

G2057

X

ELBOW - upper (Use G11965)

1шт.

G2058

X

ELBOW - upper (Use G11965)

1шт.

G11065

CASE

THERMOSTAT (177° to 182° F)

1шт.

G11088

ELBOW - lower (includes 3/8" pipe plug) (Before tractor #6169603)

1шт.

G11965

ELBOW

- upper (includes 3/8" pipe plug)

1шт.

3/8" x 1-1/8" N.C. hex hd. bolt w/lockwasher

2шт.

A35796

SUPPORT

BRACKET - radiator (includes air deflectors)

1шт.

1/2" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

G45179

CAP

- radiator

1шт.

G45266

RADIATOR - (less cap) w/dry clutch drive

1шт.

3/8" N.C. hex nut, lockwasher and plain washer

2шт.

A49073

RADIATOR (less cap) w/Case-O-Matic

1шт.

3/8" N.C. hex nut lockwasher and plain washer

2шт.

G45484

RESERVOIR

TANK - lower, Case-O-Matic radiator (Repairs only)

1шт.

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

G46254

HOSE

- lower elbow to radiator (1-3/4" I.D. x 3-1/4" long) Before tractor #6169603

1шт.

G46278

BAFFLE

- top R.H.

1шт.

G46279

BAFFLE

- top L.H.

1шт.

G46280

BAFFLE

- top center

1шт.

G46281

BAFFLE - side

2шт.

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower, Radiator to Water Pump (Tractor #6169603 and after) 1.75" ID x 5.13", SAE 20R4

1шт.

G49625

SUPPORT

PIPE - , hose clamp (inside G46239 hose)

1шт.

VT526

ELBOW - lower (Use G11088)

1шт.

VT2784

X

COCK drain - lower elbow (Before tractor #6169603)

1шт.

VT3228

X

GASKET - upper, Serial Range: elbow-head

1шт.

VT4948

X

HOSE - lower elbow to water pump (1-3/4" I.D. x 2" long) Before Tractor #6169603

1шт.

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- lower elbow (Tractor #6169603 and after (2) used) #28, 1.31/2.25 Type F Worm

4шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- upper hose to radiator #36, 1.81/2.75 Type F Worm

1шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- upper hose to elbow and thermostat #36, 1.81/2.75 Type F Worm

2шт.

217-103

COCK, DRAIN

DRAIN COCK - radiator (Imp #321E - 1/4" P.T.) Tractor #6169603 and after

1шт.
