(087) - POWER ADJUSTED REAR WHEEL GENERAL PURPOSE TRACTOR

Запчасти Case IH 630 (087) - POWER ADJUSTED REAR WHEEL GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

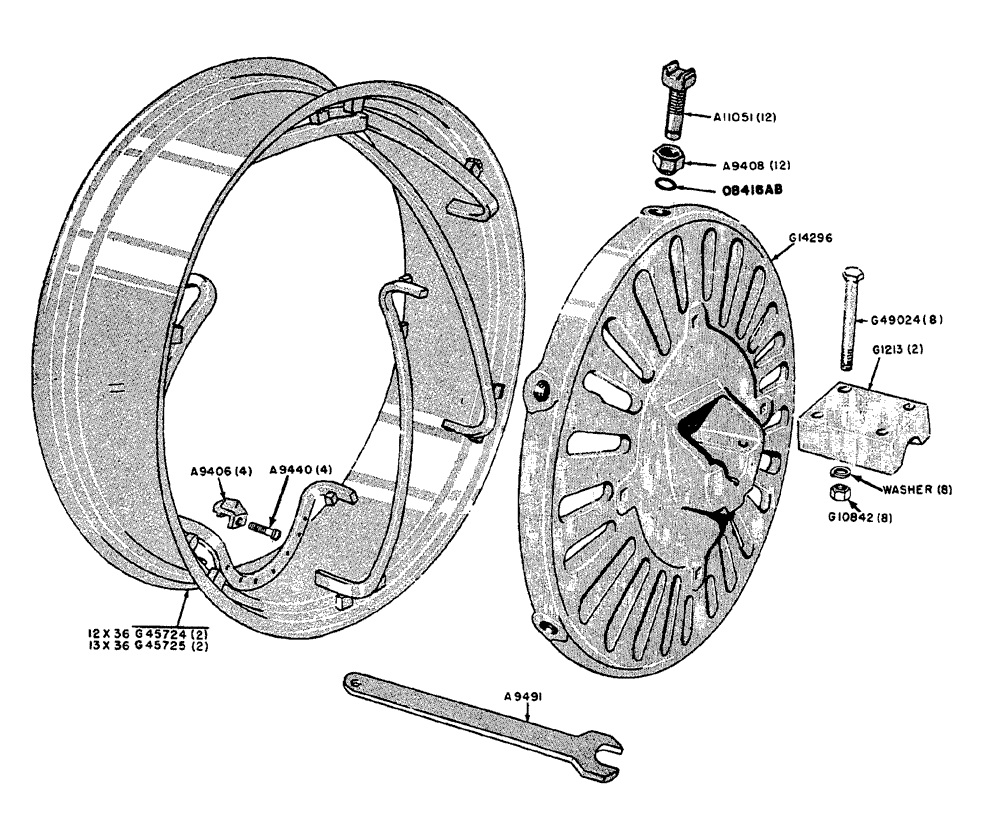

Схема запчастей Case IH 630 - (087) - POWER ADJUSTED REAR WHEEL GENERAL PURPOSE TRACTOR (06) - POWER TRAIN
g49024
a9406
a9440
g45725
g10842
08416ab
a9408
a9491
g45724
g1213
a11051
g14296
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9406

STOP

LUG, rim

4шт.

A9408

NUT

jack screw

12шт.

08416AB

"O" RING - jack screw

12шт.

A9440

STOP

SCREW - rim stop

4шт.

A9491

SPARE PART jack screw

1шт.

A11051

SCREW,Jack

jack (includes A9408 nut)

12шт.

G1213

SPARE PART CLAMP - wheel hub

2шт.

G1725

SPARE PART WHEEL, (Use G14296)

1шт.

G10842

NUT

hub bolt (3/4" N.T.)

8шт.

G14296

SPARE PART WHEEL, (includes matching clamp, bolts, nuts and lockwashers)

2шт.

G45724

RIM, (12.3" x 36" tire)

2шт.

G45725

RIM, (13.9" x 36" tire)

2шт.

G49024

SPARE PART wheel hub (3/4" x 5-3/4")

8шт.

3/4" I.T. Shakeproof lockwasher

8шт.
