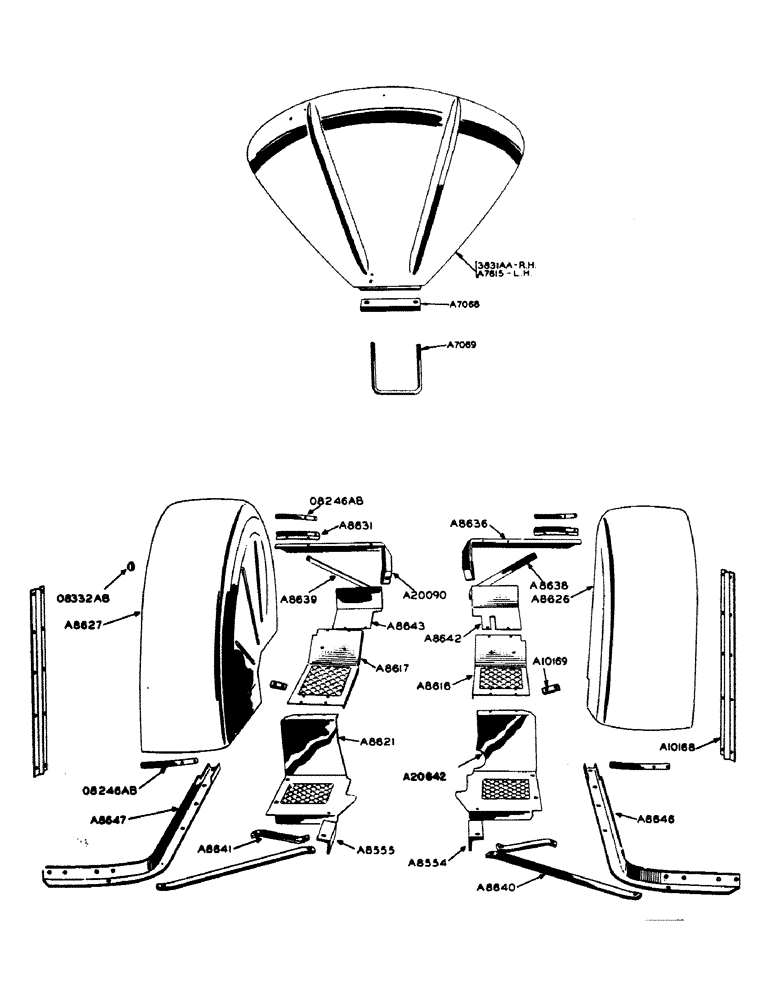

Запчасти Case IH 700 (140) - FENDERS, FOR ALL BUT ORCHARD AND SPECIAL TRACTORS (06) - POWER TRAIN

A7068

SPARE PART

SUPPORT, rear fender

2шт.

A7069

ARM

"U" BOLT, rear fender support

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher

4шт.

A7615

FENDER, L.H.

1шт.

3831AA

FENDER, R.H.

1шт.

A8554

SUPPORT, fender rear brace, R.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

A8555

SUPPORT, fender rear brace, L.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

A8616

PLATE, upper platform, R.H., and fenders, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. truss hd. mach. screw w/hex nut and lockwasher, fenders and platforms for Special tractors

5шт.

A8617

PLATE, upper platform, L.H., and fenders, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

3/8" X 1" N.C. truss hd. mach. screw w/hex nut and lockwasher, fenders and platforms for Special tractors

5шт.

A8621

PLATE, lower platform, L.H., and fenders, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

1шт.

A8626

FENDER, rear wheel, R.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

3шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

7шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

3шт.

A8627

FENDER, rear wheel, L.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms, for Special tractors

3шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms, for Special tractors

7шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms, for Special tractors

3шт.

A8631

SUPPORT, fender front, and platforms, for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

4шт.

A8636

ANGLE, fender front support, R.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.C. hex bolt w/lockwasher, fenders and platforms for Special tractors

2шт.

A8638

BRACE, fender front support, R.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/4" N.C. hex bolt w/lockwasher, fenders and platforms for Special tractors

1шт.

A8639

BRACE, fender front support, L.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/4" N.C. hex bolt w/lockwasher, fenders and platforms for Special tractors

1шт.

A8640

BRACE, fender, long, and platforms, for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

A8641

BRACE, fender, short, and platforms, for Special tractors

2шт.

A8642

SHEET, fender dust, R.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.C. truss hd. mach. screw w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

A8643

SHEET, fender dust, L.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.C. truss hd. mach. screw w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

A8646

ANGLE, fender rear support, R.H., and platforms, for Special tractors

1шт.

A8647

ANGLE, fender rear support, L.H., and platforms, for Special tractors

1шт.

A10168

REINFORCEMENT, fender, and platforms, for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

4шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

2шт.

A10169

FILLER PIECE REINFORCEMENT, fender, and platforms, for Special tractors

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms, for Special tractors

2шт.

A20090

ANGLE, fender front support, L.H., and platforms, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.C. hex bolt w/lockwasher, fenders and platforms for Special tractors

2шт.

A20642

PLATE, lower platform, R.H., and fenders, for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.C. carr. bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

1шт.

O8246AB

STRIP, fender reinforcement, and platforms, for Special tractors

4шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

8шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.F. hex bolt w/hex nut and lockwasher, fenders and platforms for Special tractors

8шт.

O8332AB

X

GROMMET, rubber, on L.H. fender, and platforms, for Special tractors

1шт.
