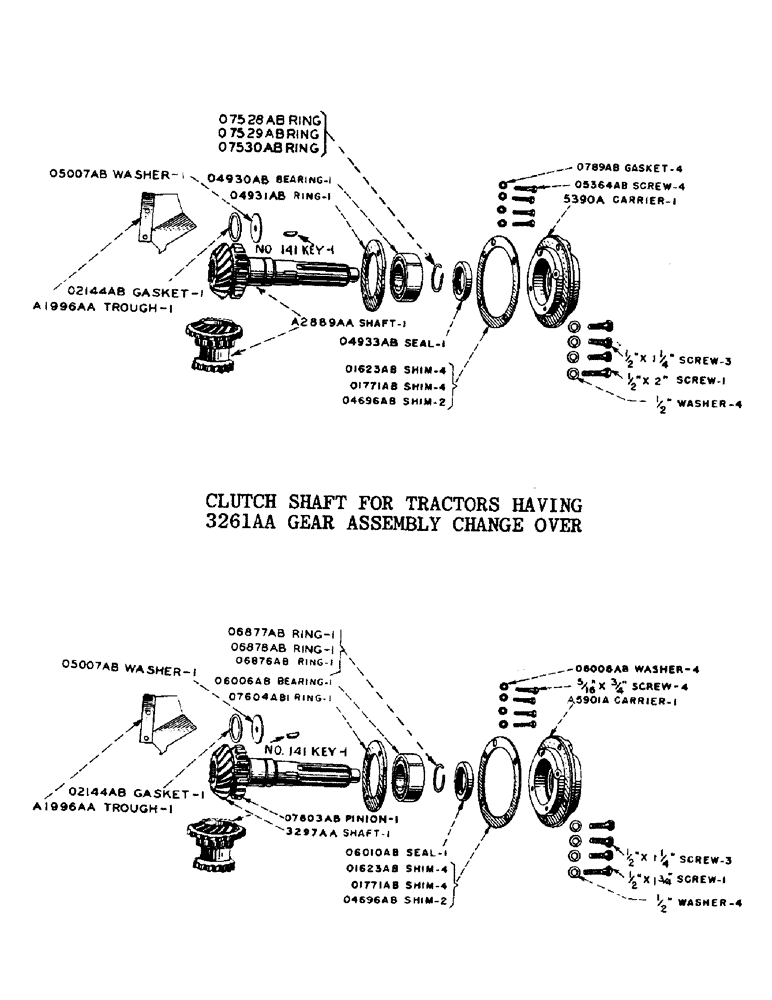

Запчасти Case IH DV-SERIES (056) - CLUTCH SHAFT, CLUTCH SHAFT FOR TRACTORS HAVING, 3261AA GEAR ASSEMBLY CHANGE OVER, D, DC, DO, DV (06) - POWER TRAIN

F60332

X

KEY, no. B Woodruff for O7603AB pinion

1шт.

5390A

CARRIER, clutch shaft bearing, prior to tractor no. 4805353 (D, DC, DO)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread (D, DC, DO)

3шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread (D, DC, DO)

1шт.

WASHER, 1/2" standard lock (D, DC, DO)

4шт.

5901A

CARRIER, clutch shaft bearing. Use A5901A

1шт.

A5901A

CARRIER, clutch shaft bearing, tractor no. 4805353 and after

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

3шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

1шт.

WASHER, 1/2" standard lock

4шт.

O7920A

BALL BEARING

BEARING, clutch shaft pilot, flywheel end. New departure no. 7505

1шт.

O789AB

GASKET

clutch shaft bearing retainer ring screw, prior to tractor no. 4805353 - See O6008AB (D, DC, DO)

4шт.

O1623AB

SHIM, clutch shaft bearing carrier - no. 30 gauge

4шт.

O1771AB

SHIM, clutch shaft bearing carrier, .005" thick

4шт.

O2144AB

X

GASKET, for O5007AB washer

1шт.

O2846AB

X

GASKET, oil trough carriage bolt (D, DO, DV)

1шт.

O4696AB

SHIM, clutch shaft bearing carrier, .003" thick

2шт.

O4930AB

BEARING, clutch shaft rear end - new departure no. 5210, prior to tractor no. 4805353 - See O6006AB (D, DC, DO)

1шт.

O4931AB

RING, retainer, clutch shaft bearing, prior tractor no. 4805353 - See O7604AB1 (D, DC, DO)

1шт.

O4933AB

X

SEAL, oil, clutch shaft, prior to tractor no. 4805353 - See O6010AB (D, DC, DO)

1шт.

O5007AB

WASHER, oil trough reinforcement (D, DO, DV)

1шт.

O5364AB

SCREW, fastens O4931AB retainer ring to 5390A bearing carrier, prior to tractor no. 4805353 (D, DC, DO)

4шт.

O6006AB

X

BEARING, clutch shaft rear end, new departure no. 5211 - tractor no. 4805353 and afteer - See O4930AB

1шт.

O6008AB

WASHER, clutch shaft bearing retainer ring lock, tractor no. 4805353 and after - See O789AB

4шт.

SCREW, 5/16" x 3/4" standard hex. head cap, N.C. thread

4шт.

O6010AB

OIL SEAL

SEAL, oil clutch shaft, tractor no. 4805353 and after - See O4933AB

1шт.

O6876AB

X

RING, snap, .096" thick, for 3261AA, 3285AA, 3297AA, or 3308AA clutch shaft

1шт.

O6877AB

X

RING, snap, .0975" thick, for 3261AA, 3285AA, 3297AA, or 3308AA clutch shaft

1шт.

O6878AB

X

RING, snap, .0990" thick, for 3261AA, 3285AA, 3297AA, or 3308AA clutch shaft

1шт.

O7528AB

X

RING, snap, .0800" thick, for A2889AA clutch shaft (D, DC, DO)

1шт.

O7529AB

RING, snap, .0815" thick, for A2889AA clutch shaft (D, DC, DO)

1шт.

O7530AB

RING, snap, .0830" thick, for A2889AA clutch shaft (D, DC, DO)

1шт.

O7603AB

PINION, power take-off drive. Tractor no. 4805353 and after, or for tractors having 3261AA gear assembly field change

1шт.

O7604AB1

X

RING, retainer, clutch shaft bearing, tractor no. 4805353 and after - See O4931AB

1шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.C. thread

4шт.

A1996AA

TROUGH, oil, transmission bevel gears (D, DO, DV)

1шт.

BOLT, 3/8" x 2" carriage, w/hex. nut. See O2846AB (D, DO, DV)

1шт.

A2889AA

SHAFT, clutch, with pinion and transmission bevel gear. Use 3261AA or 3297AA

1шт.

3261AA

SHAFT, clutch, with pinion, transmission bevel gear, and parts Consists of: 1 - 3297AA, 1 - B4717A, 1 - 5901A, 1 - O6006AB, 1 - O6010AB, 1 - O7603AB, 1 - O7604AB, 1 - no. B Woodruff key, and 4 - 5/16" x 3/4" cap screws. See note (D, DC, DO)

1шт.

3285AA

SHAFT, clutch, with pinion and transmission bevel gear. From tractor no. 4805353 to tractor no. 4818099. See note. (D, DC, DO)

1шт.

3297AA

SHAFT, clutch, with pinion and transmission bevel gear. (This is a matched set of gears used in 3261AA and should be ordered when 3261AA had been previously used.) See note (D, DC, DO)

1шт.

3308AA

SHAFT CLUTCH, with pinion and transmission bevel gear. Tractor no. 4818099 and after. See note

1шт.

KEY, no. 141 Woodruff for O1774AB clutch cone

1шт.
