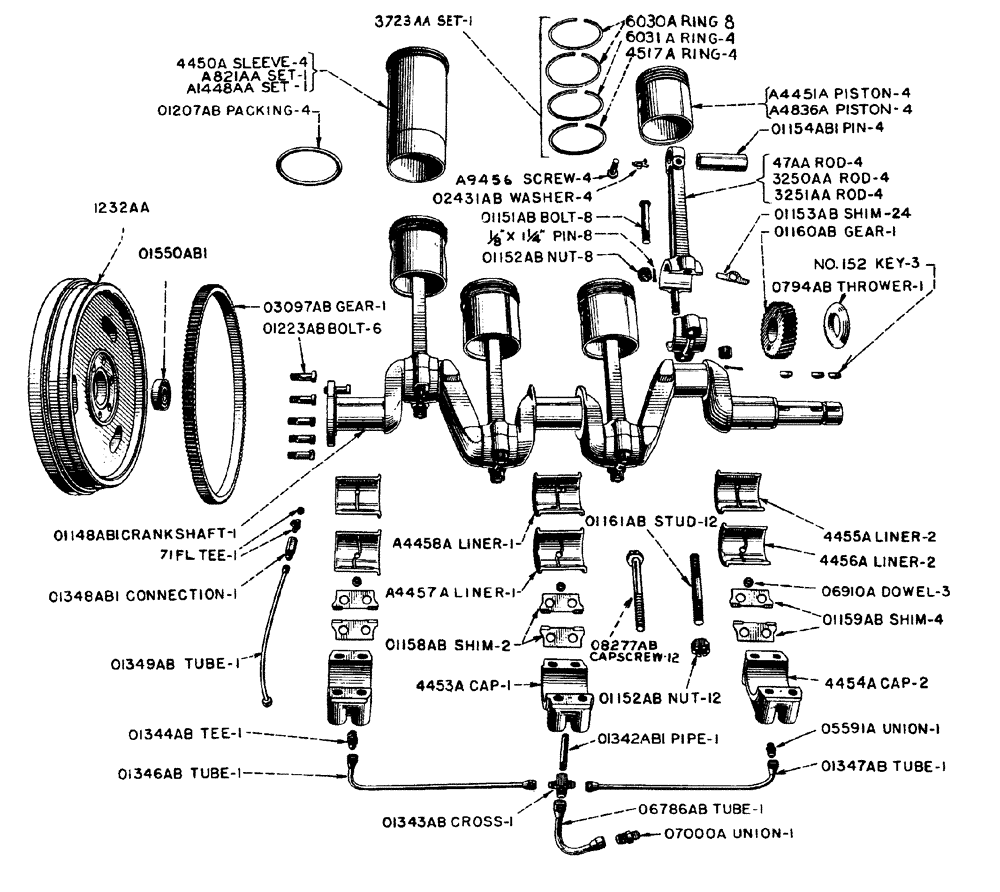

Запчасти Case IH LA-SERIES (002) - PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

a9456

A9456

SCREW,0.499" - 20 x 2 13/32"

clamp, piston pin

4шт.

4450a

A26013

SLEEVE

cylinder, piston

4шт.

a4451a

A4451A

PISTON

4шт.

Use as standard equipment with 51AA cylinder head for low cost fuel. With tractor No. 5408295 and after, A4451A pistons are used with 3943AA cylinder head as standard equipment for either gasoline or low cost fuel, and with 3947AA cylinder head as standard equipment for butane or for high altitudes for either gasoline or low cost fuel. (See A4836A, A821AA or A1448AA)

1шт.

4517a

4517A

RING piston, oil (See 3723AA and A8094)

4шт.

a4836a

A4836A

PISTON prior to tractor No. 5408295, A4836A pistons are used as standard equipment with 51AA cylinder head for gasoline, and for low cost fuel in high altitudes. (See A4451A, A1448AA and A821AA)

4шт.

6030a

6030A

RING piston, taper faced compression

8шт.

6031a

6031A

RING piston, continuous groove scraper

4шт.

01150ab

O1150AB

ROD connecting (Use 47AA)

1шт.

01151ab

O1151AB

BOLT connecting rod

8шт.

PIN cotter, connecting rod, 1/8" x 1-1/4"

8шт.

01152ab

O1152AB

NUT connecting rod bolt and main bearing stud

8шт.

01153ab

A26455

SHIM

connecting rod

24шт.

01154ab1

O1154AB1

PIN piston

4шт.

01207ab

A26479

O-RING,4.895" ID x OD x 0.385"

PACKING cylinder sleeve, piston

4шт.

02431ab

O2431AB

WASHER lock, piston pin clamp screw

4шт.

47aa

47AA

ROD connecting, complete with bolts, nuts and shims (See 3250AA and 3251AA)

4шт.

When piston rings are replaced, use A8094 set of 2-in-1 chrome replacement rings.

1шт.

a821aa

A821AA

SET of (4) cylinder sleeves with packing, A4451A pistons with rings and pins fitted for cylinder (See A1448AA)

1шт.

a1448aa

A1448AA

SET of (4) cylinder sleeves with packing, A4836AA pistons with rings and pins, fitted for cylinder (See A821AA)

1шт.

A1448AA, set of sleeves and pistons, must not be used with low cost fuel manifold except in high altitudes.

1шт.

3250aa

3250AA

ROD connecting, complete with bolts, nuts and shims, .010" undersize

4шт.

When piston rings are replaced, use A8094 set of 2-in-1 chrome replacement rings.

1шт.

3251aa

3251AA

ROD connecting, complete with bolts, nuts and shims, .020" undersize

4шт.

When piston rings are replaced, use A8094 set of 2-in-1 chrome replacement rings.

1шт.

When connecting rods require rebabbitting, they may be sent to the nearest CASE Branch in exchange for a rebabbitted rod, providing old rod is in otherwise good condition.

1шт.

a8094

A8094

RING

S, set of (16) Perfect Circle 2-in-1 chrome piston

1шт.

When piston rings are replaced, use A8094 set of 2-in-1 chrome replacement rings.

1шт.

3723aa

3723AA

PISTON RING SET

RING SET, (16) replacement, original equipment type (Consists of: 4 - 4517A, 8 - 6030A and 4 - 6031A rings) (See A8094)

1шт.

4453a

4453A

CAP crankshaft bearing, center

1шт.

4454a

4454A

CAP crankshaft bearing, front or rear

2шт.

4455a

4455A

LINER crankshaft bearing, front or rear, upper (Not fitted) (See 6020A)

2шт.

4456a

4456A

LINER crankshaft bearing, front or rear, lower (Not fitted) (See 6021A)

2шт.

a4457a

A4457A

LINER crankshaft bearing, center, lower (Not fitted)( See A6023A)

1шт.

a4458a

A4458A

LINER crankshaft bearing, center, upper (Not fitted) (See A6022A)

1шт.

4860a

4860A

FLYWHEEL crankshaft (Use 1232AA)

1шт.

6020a

6020A

LINER crankshaft bearing, front or rear, upper, .090" undersize (Not fitted) (See 4455A)

2шт.

6021a

6021A

LINER crankshaft bearing, front or rear, lower, .090" undersize (Not fitted) (See 4456A)

2шт.

a6022a

A6022A

LINER crankshaft bearing, center, upper, .090" undersize (Not fitted) (See A4458A)

1шт.

a6023a

A6023A

LINER crankshaft bearing, center, lower, .090" undersize (Not fitted) (See A4457A)

1шт.

06910a

O6910A

DOWEL crankshaft bearing

3шт.

0794ab

O794AB

THROWER oil, crankshaft, front

1шт.

01148ab1

O1148AB1

CRANKSHAFT

1шт.

KEY Woodruff, No. 152

3шт.

01152ab

O1152AB

NUT for 01161AB, crankshaft bearing cap stud

12шт.

01158ab

O1158AB

SHIM crankshaft center bearing

2шт.

01159ab

O1159AB

SHIM crankshaft front or rear bearing

4шт.

01160ab

O1160AB

GEAR crankshaft

1шт.

01161ab

O1161AB

STUD crankshaft bearing cap (Use O8277AB)

1шт.

01223ab

O1223AB

BOLT flywheel, crankshaft

6шт.

NUT hex, jam, crankshaft, N.F. thread, 5/8"

6шт.

WASHER standard lock, crankshaft, 5/8"

6шт.

01550ab1

O1550AB1

BEARING clutch shaft pilot, crankshaft (New Departure No. 7206)

1шт.

03097ab

A26699

GEAR, RING

GEAR ring, flywheel, crankshaft

1шт.

08277ab

O8277AB

SCREW crankshaft bearing cap

12шт.

1232aa

1232AA

FLYWHEEL crankshaft, with ring gear

1шт.

05591a

O5591A

UNION flared tube, oil line to crank bearings, 3/8" tube size x 1/4" pipe thread, for O1347AB

1шт.

05592a

O5592A

NUT flared tube, oil line to crank bearings, 3/8", for O1346AB and O1347AB tubes

4шт.

06942a

O6942A

NUT flared tube, oil line to crank bearings, 1/4", for O1349AB tube

2шт.

07000a

O7000A

UNION flared tube, oil line to crank bearings, 1/2" tube size x 3/8" pipe thread, for O6786AB tube

1шт.

07001a

O7001A

NUT flared tube, oil line to crank bearings, 1/2", for O6786AB tube

2шт.

01342ab1

O1342AB1

PIPE oil, crankshaft center bearing

1шт.

01343ab

O1343AB

CROSS at crankshaft center bearing oil pipe

1шт.

01344ab

O1344AB

TEE crankshaft rear bearing, oil, Start Serial: line

1шт.

01346ab

O1346AB

TUBE oil, crankshaft rear bearing

1шт.

01347ab

O1347AB

TUBE oil, crankshaft front bearing

1шт.

01348ab1

O1348AB1

CONNECTION oil gauge tube

1шт.

TEE flex, Imperial No. 71 FL, 3/16" tube size x 1/8" pipe thread. Replaces Dole A14 service tee, 3/16" tube size x 1/8" pipe thread

1шт.

01349ab

O1349AB

TUBE inner, to oil gauge

1шт.

06786ab

A27113

TUBE

oil pump to O1343AB distributor cross

1шт.
