(070) - REAR WHEEL FENDERS PRIOR TO TRACTOR NO. 5208165

Запчасти Case IH LA-SERIES (070) - REAR WHEEL FENDERS PRIOR TO TRACTOR NO. 5208165 (06) - POWER TRAIN

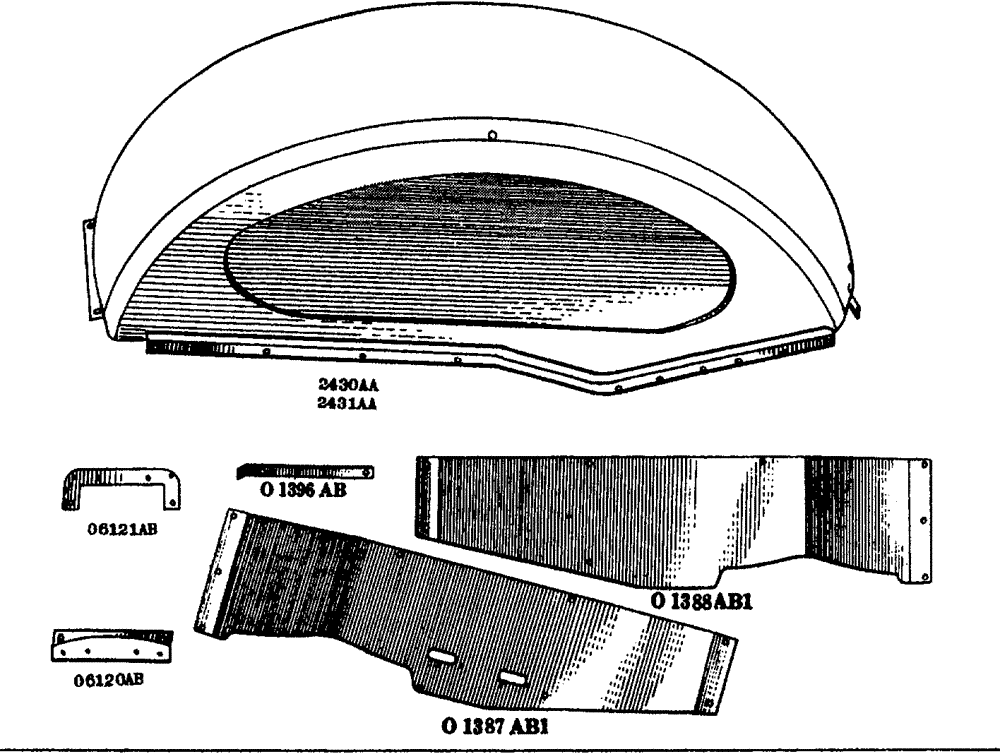

Схема запчастей Case IH LA-SERIES - (070) - REAR WHEEL FENDERS PRIOR TO TRACTOR NO. 5208165 (06) - POWER TRAIN
01396ab
01388ab1
2431aa
06121ab
01387ab1
06120ab
2430aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

01387ab1

O1387AB1

APRON fender, R.H. (See O6274AB and O7876AB)

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 3/4"

4шт.

SCREW cap, hex head, N.C. thread, 3/8" x 7/8"

3шт.

WASHER lock, standard, 3/8"

7шт.

01388ab1

O1388AB1

APRON fender, L.H. (See O6275AB and O7877AB)

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 3/4"

4шт.

SCREW cap, hex head, N.C. thread, 3/8" x 7/8"

3шт.

WASHER lock, standard, 3/8"

7шт.

01396ab

O1396AB

BRACE fender

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

2шт.

WASHER lock, standard, 1/2"

2шт.

01503ab

O1503AB

REINFORCEMENT fender apron

2шт.

SCREW cap, hex head, N.C. thread, 5/16" x 2"

2шт.

05132ab

O5132AB

PLATE extension, fender apron, for mechanical rear wheel brakes (Prior to tractor No. 4904771) (See O7878AB)

2шт.

SCREW cap, hex head, N.C. thread, 5/16" x 1/2"

2шт.

WASHER lock, standard, 5/16"

2шт.

06120ab

O6120AB

SUPPORT fender, front

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 7/8"

4шт.

WASHER lock, standard, 3/8"

4шт.

06121ab

O6121AB

SUPPORT fender, rear

1шт.

06222ab

O6222AB

MATTING apron, fender

2шт.

06274ab

O6274AB

APRON fender, R.H., for mechanical rear wheel brakes (Prior to tractor No. 4904771) (See O7876AB and 2729AA)

1шт.

06275ab

O6275AB

APRON fender, L.H., for mechanical rear wheel brakes (Prior to tractor No. 4904771) (See O7877AB)

1шт.

07876ab

O7876AB

APRON fender, R.H., for mechanical rear wheel brakes (Tractor No. 4904771 and after) (See O6274AB and 2729AA)

1шт.

07877ab

O7877AB

APRON fender, L.H., for mechanical rear wheel brakes (Tractor No. 4904771 and after) (See O6275AB)

1шт.

07878ab

O7878AB

PLATE extension, fender apron, for mechanical rear wheel brakes (Tractor No. 4904771 and after) (See O5132AB)

1шт.

2430aa

2430AA

FENDER R.H.

1шт.

BOLT 5/16" x 3/4" carr. with hex nut

4шт.

BOLT 5/16" x 1" carr. with hex nut

4шт.

WASHER lock, standard, 5/16"

8шт.

2431aa

2431AA

FENDER L.H.

1шт.

BOLT 5/16" x 3/4" carr. with hex nut

4шт.

BOLT 5/16" x 1" carr. with hex nut

4шт.

WASHER lock, standard, 5/16"

8шт.

2729aa

2729AA

APRON fender, R.H., with tool box support, for mechanical rear wheel brake (Prior to tractor No. 4904771) (See O6274AB and O7876AB)

1шт.
