(061) - PARTS FOR 3604AA MASTER CYLINDER

Запчасти Case IH LA-SERIES (061) - PARTS FOR 3604AA MASTER CYLINDER (07) - BRAKES

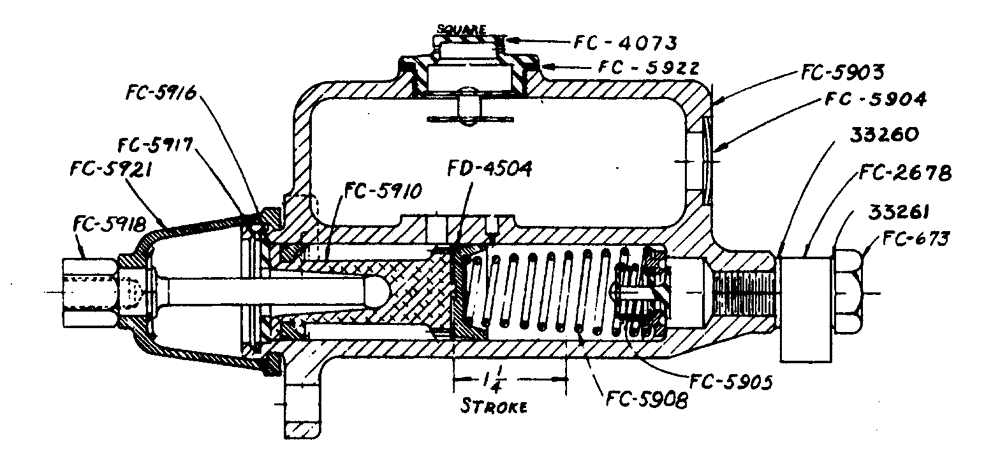

Схема запчастей Case IH LA-SERIES - (061) - PARTS FOR 3604AA MASTER CYLINDER (07) - BRAKES
33260
fc5910
fc5916
33261
fc5905
fc5922
fd4504
fc5917
fc5903
fc4073
fc5908
fc2678
fc5921
fc673
fc5904
fc5918
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33260

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET, under FC2678 fitting

1шт.

33261

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

under FC673 bolt

1шт.

fc673

FC673

BOLT

1шт.

fc2678

FC2678

FITTING

1шт.

fc4073

FC4073

PLUG filler

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5375

FC5375

KIT repair, master cylinder (Consists of: 1 - FC5905, 1 - FC5910, 1 - FC5917, 1 - FC5921 and 1 - FD4504)

1шт.

fc5903

FC5903

TANK supply

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5904

FC5904

PLUG Welch

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5905

FC5905

VALVE ASSEMBLY

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5908

FC5908

SPRING

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5910

FC5910

PISTON ASSEMBLY

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5916

FC5916

WASHER stop

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5917

FC5917

WIRE stop

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5918

FC5918

LINK

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5921

FC5921

BOOT

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fc5922

FC5922

GASKET filler plug

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

fd4504

FD4504

CUP

1шт.

Part of Master Cylinder Assembly P/N 3604AA

1шт.

3604aa

3604AA

CYLINDER, master (Wagner Electric Co. service No. FE1050)

1шт.

For service or parts on Wagner Electric Co., wheel or master cylinder, consult their nearest factory branch or distributor.

1шт.

Factory branches located at the following cities: Atlanta, Ga., Baltimore, Md., Boston, Mass., Buffalo, N.Y., Chicago, Ill., Cincinnati, O., Cleveland, O., Dallas, Texas, Denver, Colo., Detroit, Mich., Indianapolis, Ind., Kansas City, Mo., Los Angeles, Calif., Memphis, Tenn., Milwaukee, Wis., Minneapolis, Minn., Toronto, Ont., (Canada), New York, N.Y., Omaha, Neb., Philadelphia, Pa., Pittsburgh, Pa., Portland, Ore., St. Louis, Mo., San Francisco, Cal., Seattle, Wash., and Salt Lake City, Utah.

1шт.
