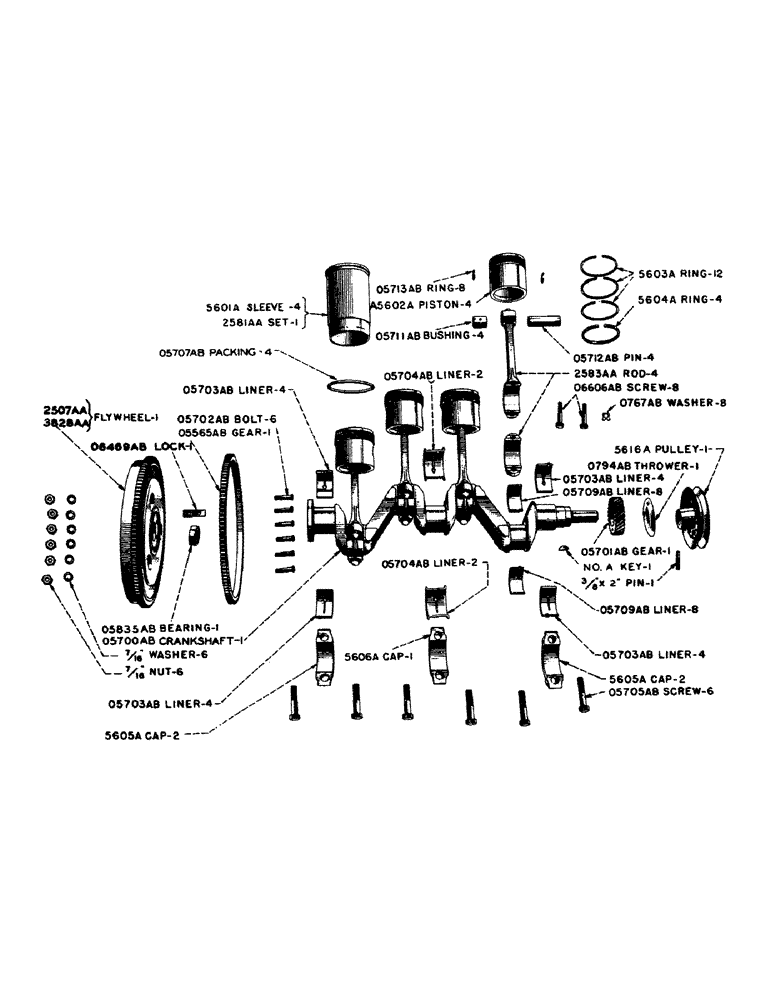

Запчасти Case IH S-SERIES (008) - PISTONS, CONNECTING RODS AND CRANKSHAFT, PISTONS AND CONNECTING RODS, S, SC, SO (02) - ENGINE

5601A

SLEEVE, cylinder, See 2581AA

4шт.

5602A

PISTON, Use A5602A

1шт.

A5602A

PISTON

4шт.

5603A

RING, piston, compression. Use in new engines and on new piston and sleeve sets. See 5604A and 3722AA.

12шт.

5604A

RING, piston, oil. See 5603A and 3722AA

4шт.

O767AB

X

WASHER, connecting rod screw lip

8шт.

O5707AB

X

PACKING, cylinder sleeve

4шт.

O5708AB

ROD, connecting. Use 2583AA

1шт.

O5709AB

X

LINER, connecting rod bearing. Standard size. See O6919AB, O6920AB, O7809AB or O8467AB

8шт.

O5710AB

SCREW, connecting rod cap. Use O6606AB with O767AB

1шт.

O5711AB

BUSHING, connecting rod

4шт.

O5712AB

X

PIN, piston

4шт.

O5713AB

X

RING, piston pin retainer

8шт.

O6606AB

X

SCREW, connecting rod cap

8шт.

O6919AB

LINER, connecting rod bearing, .010" undersize. See O5709AB, O6920AB, O7809AB or O8467AB

8шт.

O6920AB

LINER, connecting rod bearing, .020" undersize. See O5709AB, O6919AB, O7809AB or O8467AB

8шт.

O7809AB

BEARING LINER

LINER, connecting rod bearing, .002" undersize. See O5709AB, O6919AB, O6920AB or O8467AB

8шт.

O8467AB

LINER, connecting rod bearing, .005" undersize. See O5709AB, O6919AB, O6920AB or O7809AB

8шт.

2581AA

X

SET OF (4) CYLINDER SLEEVES, pistons, rings, piston pins, packing and retainer rings

1шт.

2583AA

ROD, connecting, with cap, bushing, liners and cap screws

4шт.

2678AA

PULLER, cylinder sleeve, Consists of: 1 - 3341A crab, 1 - O2662AB stud with two 3/4" am. std. hex. nuts, N.C. thread and 1 - O6482AB plate.

1шт.

5604A

RING, piston oil, replacement

4шт.

6027A

RING, piston taper faced compression, replacement

8шт.

6028A

RING, piston continuous groove scraper, replacement

4шт.

3722AA

PISTON RING SET

RINGS, set of (16) replacement piston, Consists of: 4 - 5604A, 8 - 6027A and 4 - 6028A rings.

1шт.

5605A

CAP, crankshaft bearing, front or rear

2шт.

5606A

CAP, crankshaft bearing, center

1шт.

5607A

FLYWHEEL. Use 2507AA, crankshaft

1шт.

5616A

PULLEY, 6" dia. fan drive. Prior to tractor No. 4910902, also used on tractor No. 4911025 to No. 4911139 inclusive. See 5930A, crankshaft

1шт.

PIN, 3/8" x 2" type 1 full length taper groove, crankshaft

1шт.

5930A

PULLEY, 6-1/2" dia. fan drive. Tractor No. 4910902 and after, except tractor No. 4911025 to No. 4911139 inclusive. See 5616A, crankshaft

1шт.

PIN, 3/8" x 2" type 1 full length taper groove, crankshaft

1шт.

6067A

FLYWHEEL. Use 3828AA, crankshaft

1шт.

O794AB

THROWER, crankshaft oil

1шт.

O5565AB

GEAR, RING

GEAR, flywheel ring, crankshaft

1шт.

O5700AB

CRANKSHAFT

1шт.

KEY, No. A Woodruff, crankshaft

1шт.

O5701AB

GEAR, crankshaft

1шт.

O5702AB

BOLT, for 2507AA flywheel. See O8530AB, crankshaft

6шт.

NUT, 7/16" hexagon, light, N.F. thread, crankshaft

6шт.

WASHER, 7/16" standard lock, crankshaft

6шт.

O5703AB

X

LINER, crankshaft bearing, front or rear. Standard size. See O6923AB, O6924AB, O7807AB, O8468AB or 3564AA

4шт.

O5704AB

BEARING LINER

LINER, crankshaft bearing, center. Standard size. See O6921AB, O6922AB, O7808AB, O8469AB or 3564AA

2шт.

O5705AB

SCREW, cap, crankshaft bearing

6шт.

O5835AB

X

BEARING, clutch shaft pilot, New Departure No. 7504, crankshaft

1шт.

O6469AB

LOCK, clutch pilot bearing. Prior to tractor No. 5308165, crankshaft

1шт.

O6921AB

SLEEVE CYLINDER

LINER, crankshaft bearing, center, .010" undersize. See O5704AB, O6922AB, O7808AB or 3534AA

2шт.

O6922AB

LINER, crankshaft bearing, center, .020" undersize. See O5704AB, O6921AB, O7808AB or 3428AA

2шт.

O6923AB

LINER, crankshaft bearing, front or rear .010" undersize. See O5703AB, O6924AB, O7807AB or 3534AA

4шт.

O6924AB

LINER, crankshaft bearing, front or rear .020" undersize. See O5703AB, O6923AB, O7807AB or 3428AA

4шт.

O7807AB

X

LINER, crankshaft bearing, front or rear, .002" undersize. See O5703AB, O6923AB, O6924AB or 3563AA

4шт.

O7808AB

LINER, crankshaft bearing, center, .002" undersize. See O5704AB, O6921AB, O6922AB or 3563AA

2шт.

O8468AB

LINER, crankshaft bearing, front or rear, .005" undersize. See O5703AB, O6923AB, O6924AB, O7807AB or 3762AA

4шт.

O8469AB

LINER, crankshaft bearing, center, .005" undersize. See O5704AB, O6921AB, O6922AB, O7808AB or 3762AA

2шт.

O8530AB

BOLT, for 3828AA flywheel. See O5702AB, crankshaft

6шт.

NUT, 7/16" hexagon jam, light, N.F. thread, crankshaft

6шт.

WASHER, 7/16" standard lock, crankshaft

6шт.

2507AA

X

FLYWHEEL and ring gear. Prior to tractor No. 5308165, crankshaft

1шт.

3428AA

X

LINERS, set of main bearing, .020" undersize - consists of 2 - O6922AB and 4 - O6924AB, crankshaft

1шт.

3534AA

LINERS, set of main bearing. .010" undersize - consists of 2 - O6921AB and 4 - O6923AB, crankshaft

1шт.

3563AA

X

LINERS, set of main bearing, .002" undersize - consists of 4 - O7807AB and 2 - O7808AB, crankshaft

1шт.

3564AA

X

LINERS, set of main bearing - consists of 4 - O5703AB and 2 - O5704AB, crankshaft

1шт.

3762AA

LINERS, set of main bearing - consists of 4 - O8468AB and 2 - O8469AB, crankshaft

1шт.

3828AA

FLYWHEEL and ring gear, tractor No. 5308165 and after. See 2507AA, crankshaft

1шт.
