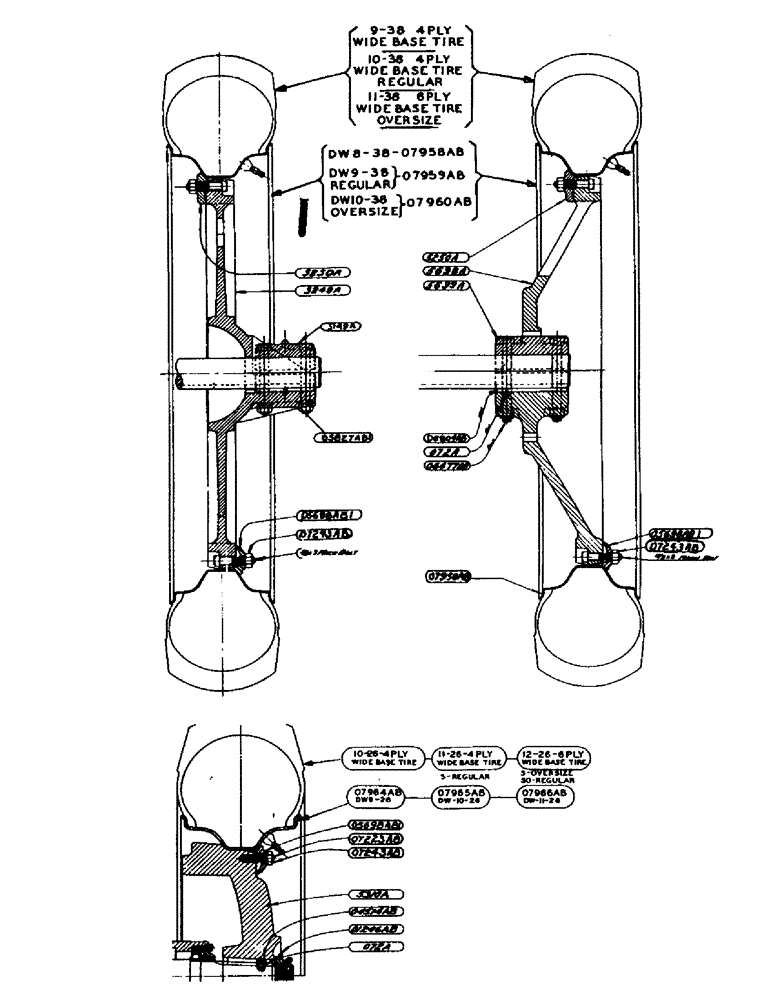

Запчасти Case IH S-SERIES (080) - REAR WHEELS FOR PNEUTATIC FARM TIRES, S, SC, SO, FOR SC TRACTORS (06) - POWER TRAIN

5149A

CAP, for 2303AA rear wheel. See 5699A, SC

2шт.

5249A

WHEEL, rear. Use 2303AA

1шт.

5250A

LUG, rear wheel locating, SC

12шт.

BOLT, 5/8" x 3" square head machine, less nut, SC

12шт.

NUT. Use O7243AB, SC

12шт.

5310A

WHEEL, rear, for 2530AA, 2532AA, 3450AA or 3663A, S, SO

2шт.

5698A

WHEEL, rear. Use 2669AA

1шт.

5699A

CAP, for 2669AA rear wheel. See 5149A, SC

2шт.

O4514AB

KEY, for hub of 5310A rear wheel, S, SO

2шт.

O5698AB1

X

CLAMP, rear wheel rim

12шт.

BOLT, 5/8" x 3" square head machine, less nut, SC

12шт.

NUT. Use O7243AB

1шт.

O5827AB1

BOLT, hub cap, for 5249A rear wheel, SC

8шт.

NUT, 3/4" hexagon, light, N.F. thread, SC

8шт.

WASHER, 3/4" standard lock, SC

8шт.

O6477AB

BOLT, hub cap, for 5698A rear wheel, SC

8шт.

NUT, 3/4" hexagon, light, N.F. thread, SC

8шт.

WASHER, 3/4" standard lock, SC

8шт.

O6904AB

KEY, for hub of 5249A and 6698A rear wheel, SC

2шт.

O7223AB

X

STUD, rear wheel rim, S, SO

12шт.

O7243AB

X

NUT, rear wheel ring, S, SO

12шт.

O7243AB

X

NUT, rear wheel ring, SC

24шт.

O7958AB

RIM, DW8-38 Goodyear wide base deep well, with drivers for 9-38 tires, SC

2шт.

O7959AB

RIM, DW9-38 Goodyear wide base deep well, with drivers for 10-38 tires, SC

2шт.

O7960AB

RIM, DW10-38 Goodyear wide base deep well, with drivers for 11-38 tires, SC

2шт.

O7964AB

RIM, DW9-26 Goodyear wide base deep well, with drivers for 10-26 tires, S, SO

2шт.

O7965AB

RIM, DW10-26 Goodyear wide base deep well, with drivers for 11-26 tires, S, SO

2шт.

O7966AB

RIM, DW11-26 Goodyear wide base deep well, with drivers for 12-26 tires, S, SO

2шт.

O7967AB

RIM, DW12-26 Goodyear wide base deep well, with drivers for 13-26 tires, SO

2шт.

2303AA

WHEEL, rear, for 2526AA or 2661AA wheels. Prior to tractor No. 4600729 See 2669AA. Consists of 1 - 5249A wheel, 1 - 5149A cap, 4 - O5827AB1 bolts, 4 - 3/4" hex. nuts and 4 - 3/4" lockwashers, SC

2шт.

A2303AA

2шт.

WHEEL, rear, with DW8-38 wide base rim for 9-38 tires. Tractor No. 4600729 and after. Consists of 6 - 5250A lugs, 1 - 2669AA wheel and cap, 6 - O5698AB1 clamps, 12 - O7243AB nuts, 1 - O07958AB rim and 12 - 5/8" x 3" square head machine bolts less nuts. SC

1шт.

2526AA

2шт.

WHEEL, rear, with DW9-38 wide base rim for 10-38 tires. Prior to tractor No. 4600729. Consists of 1 - 2303AA wheel, 6 - 5250A lug 4 - O5827AB1 bolts, 1 - O7959AB rim, 12 - 5/8" x 3" square head machine bolts less nuts, 4 - 3/4" nuts, 12 - O7243AB nuts, 6 - O5698AB1 clamps and 4 - 3/4" lockwashers, SC

1шт.

A2526AA

2шт.

WHEEL, rear with DW9-38 wide base rim for 10-38 tires. Tractor No. 4600729 and after. Consists of 6 - 5250A lugs, 1 - 2669AA wheel and cap, 6 - O5698AB1 clamps, 12 - O7243AB nuts, 1 - O7959AB rim, and 12 - 5/8" x 3" square head machine bolts less nuts, SC

1шт.

2530AA

WHEEL, rear, with DW9 - 26 wide base rim for 10-26 tires. Consists of 1 - 5310A wheel, 6 - O5698AB1, 6 - O7223AB studs, 6 - O7243AB nuts, and 1 - O7964AB rim, S, SO

2шт.

2532AA

WHEEL, rear, with DW10-26 wide base rim for 11-26 tires. Consist of 1 - 5310A wheel, 6 - O5698AB1 clamps, 6 - O7223AB studs, 6 - O7243AB nuts, and 1 - O7965AB rim, S, SO

2шт.

2659AA

WHEEL, rear, with DW11-26 wide base rim for 12-26 tires. Prior to tractor No. 4600000. Consists of 1 - 5310A wheel, 6 - O5698AB1, 6 - O7223AB studs, 6 - O7243AB nuts and 1 - O7966AB rim, S, SO

2шт.

2661AA

2шт.

WHEEL, rear, with DW10-38 wide base rim for 11-28 tires. Prior to tractor No. 4600729. Consists of 1 - 2303AA wheel, 6 - 5250A lugs, 4 - O5827AB1 bolts, 1 - O7960AB rim, 12 - 5/8" x 3" square head machine bolts less nuts, 4 - 3/4" hex nuts, 12 - O7243AB nuts, 6 - O5698AB1 clamps and 4 - 3/4" lockwashers, SC

1шт.

A2661AA

2шт.

WHEEL, rear, with DW10-38 wide base rim for 11-38 tires. Tractor No. 4600729 and after. Consists of 1 - 2669AA wheel and cap, 6 - 5250A lugs, 6 - O5698AB1 clamps, 12 - O7243AB nuts, 1 - O7960AB rim and 12 - 5/8" x 3" square head machine bolts less nuts, SC

1шт.

2669AA

WHEEL, rear, for A2303AA, A2526AA and A2661AA wheels. Tractor No. 4600729 and after. See 2303AA. Consists of 1 - 5698A wheel, 1 - 5699A cap, 4 - O6477AB bolts, 4 - 3/4" hex. nuts and 4 - 3/4" lockwashers, SC

2шт.

3450AA

WHEEL, rear, with DW12-26 wide base rim for 13-26 tires. Consists of 1 - 5310A wheel, 6 - O5698AB1 clamps, 6 - O7223AB studs, 6 - O7243AB nuts and 1 - O7967AB rim, SO

2шт.

3663AA

WHEEL, rear, with DW11-26 wide base rim for 12-26 tires. Consists of 1 - 5310A wheel, 6 - O5698AB1 clamps, 6 - O7223AB studs, 6 - O7243AB nuts, and 1 - O7966AB rim, S, SO

2шт.

4951A

WEIGHT for 5249A rear wheel. See 5556A and 1139AA, SC, pneumatic rear wheels

2шт.

BOLT, 3/4" x 3" machine, with hexagon nut, SC, weights for pneumatic rear wheels

6шт.

WASHER, 3/4" standard lock, SC, weights for pneumatic rear wheels

6шт.

5145A

WEIGHT for 5310A rear wheel. See A1040AA, S, SO, pneumatic

2шт.

BOLT, 3/4" x 4-1/2" machine, with hexagon nut, S, SO, weights for pneumatic rear wheels

6шт.

WASHER, 3/4" standard lock, S, SO, weights for pneumatic rear wheels

6шт.

5556A

WEIGHT for 5698A rear wheel. See 4951A and 2667AA, SC, pneumatic

2шт.

BOLT, 5/8" x 3-1/2" carriage, with hexagon nut, SC, weights for pneumatic rear wheels

8шт.

WASHER, 5/8" standard lock, SC, weights for pneumatic rear wheels

8шт.

WASHER, 5/8" U.S. standard, SC, weights for pneumatic rear wheels

8шт.

O1532AB

WASHER, rear wheel weight bolt. Used with 4951A and 5145A, pneumatic

6шт.

A1040AA

WEIGHTS, set of 2 - for 5310A rear wheel. Consists of: 2 - 5145A weights, 6 - O1532AB washers, 6 - 3/4" x 4-1/2" machine bolts with hexagon nuts and 6 - 3/4" lockwasher. Machinery item, S, SO, pneumatic

1шт.

1139AA

WEIGHTS, set of (2), for 5249A rear wheel. Consists of 2 - 4951A weights, 6 - O1532AB washers, 6 - 3/4" x 3" machine bolts with hex. nuts and 6 - 3/4" lockwasher. See 2667AA. Machinery item, SC, pneumatic

1шт.

2667AA

WEIGHTS, set of (2) for 5698A rear wheel. Consists of 2 - 5556A weights, 8 - 5/8" x 3-1/2" carriage bolts with hex. nuts, 8 - 5/8" lockwashers and 8 - 5/8" plain washers. See 1139AA. Machinery item, SC, pneumatic

1шт.
