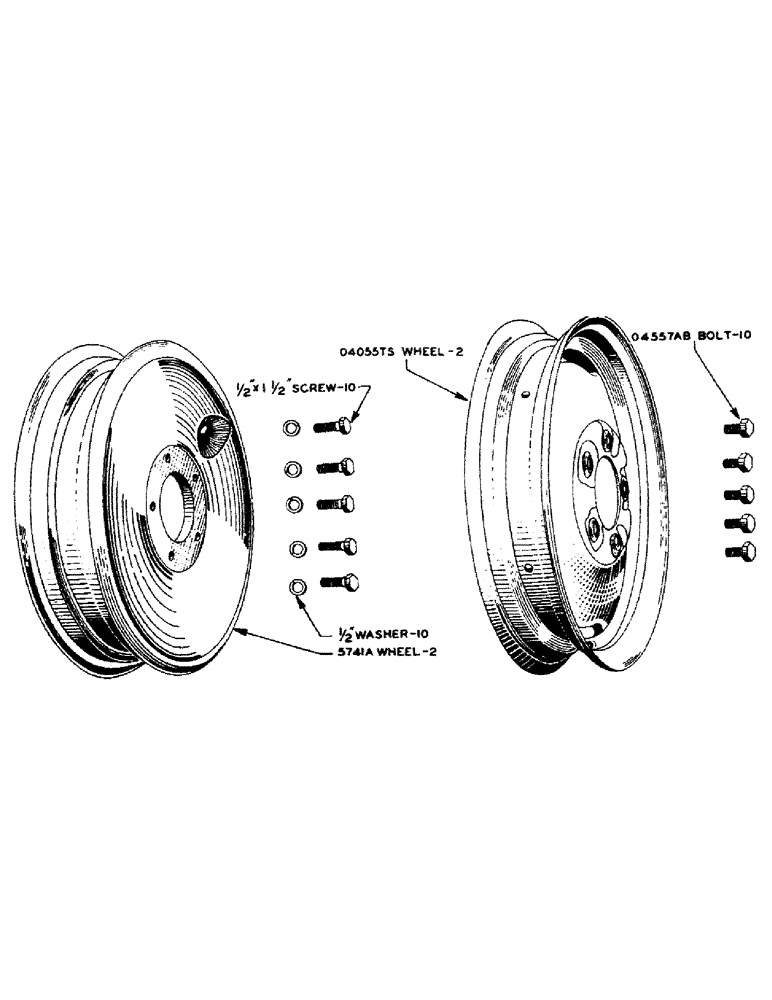

Запчасти Case IH S-SERIES (106) - FRONT WHEELS FOR PNEUMATIC FARM TIRES FOR S AND SO TRACTORS (06) - POWER TRAIN

5643A

HUB, front wheel. Use 2509AA or 3806AA

1шт.

5741A

WHEEL, front, less hub, for 5.00 x 15 tire. Tractor No. 4505420 and after. See O4556AB or O4055TS, S

2шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.F. thread

10шт.

WASHER, 1/2" standard lock, S

10шт.

5741A

WHEEL, front, less hub, for 5.00 x 15 tire. Tractor No. 4505420 to tractor No. 500000. See O4556AB or O4055TS, SO

2шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.F. thread, SO

10шт.

WASHER, 1/2" standard lock, SO

10шт.

O882AB

WASHER, front wheel spindle

2шт.

O1456AB

CONE

front wheel inner bearing, for 3802AA spindle. Timken No. 2788. Tractor No. 5313815 and after. See O3766AB

2шт.

O1461AB

X

CUP, front wheel outer bearing. Timken No. 14274

2шт.

O1462AB

X

CONE, front wheel outer bearing, Timken No. 14125

2шт.

O3765AB

X

CUP, front wheel inner bearing, for 2509AA hub. Timken No. O2820. Prior to tractor No. 5313815. See O8509AB

2шт.

O3766AB

BEARING

CONE, front wheel inner bearing, for 2546AA, 2547AA or 2996AA spindles. Timken No. O2877. Prior to tractor No. 5313815. See O1456AB

2шт.

O4554AB

CAP, front wheel hub

2шт.

O4556AB

WHEEL, front, less hub, for 5.00 x 15 tire. Prior to tractor No. 4505420. See 5741A or O4055TS.

2шт.

O4557AB

BOLT, for O4556AB or O4055TS front wheels

10шт.

O5823AB

SEAL

felt retainer, for 2509AA hub. Prior to tractor No. 5313815. See O8513AB

2шт.

O5824AB

FELT

WASHER, felt, front wheel hub

4шт.

O8509AB

X

CUP, front wheel inner bearing, for 3806AA hub. Timken No. 2726. Tractor No. 5313815 and after. See O3765AB

2шт.

O8513AB

X

SEAL, felt retainer, for 3806AA hub. Tractor No. 5313815 and after. See O5823AB

2шт.

O4055TS

WHEEL, front, less hub, for 5.50 x 16 - 4 ply tire. See 5741A or O4556AB

2шт.

2509AA

HUB, front wheel, with bearing cups, used with 2546AA, or 2996AA spindles, prior to tractor No. 5313815. See 3806AA. Consists of 1 - 5643A, 1 - O1461AB and 1 - O3765AB

2шт.

2514AA

X

RETAINER, felt, for 2509AA hub. Prior to tractor No. 5313815. See 3801AA

2шт.

3801AA

X

RETAINER, felt, for 3806AA hub. Tractor No. 5313815 and after. See 2514AA

2шт.

3806AA

HUB, front wheel, with bearing cups, used with 3802AA spindle. Tractor No. 5313815 and after. See 2509AA. Consists of 1 - 5643A, 1 - O1461AB and 1 - O8509AB

2шт.
