(1-20) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0044915 THROUGH AJB0055132

Запчасти Case IH 7110 (1-20) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0044915 THROUGH AJB0055132 (00) - PICTORIAL INDEX

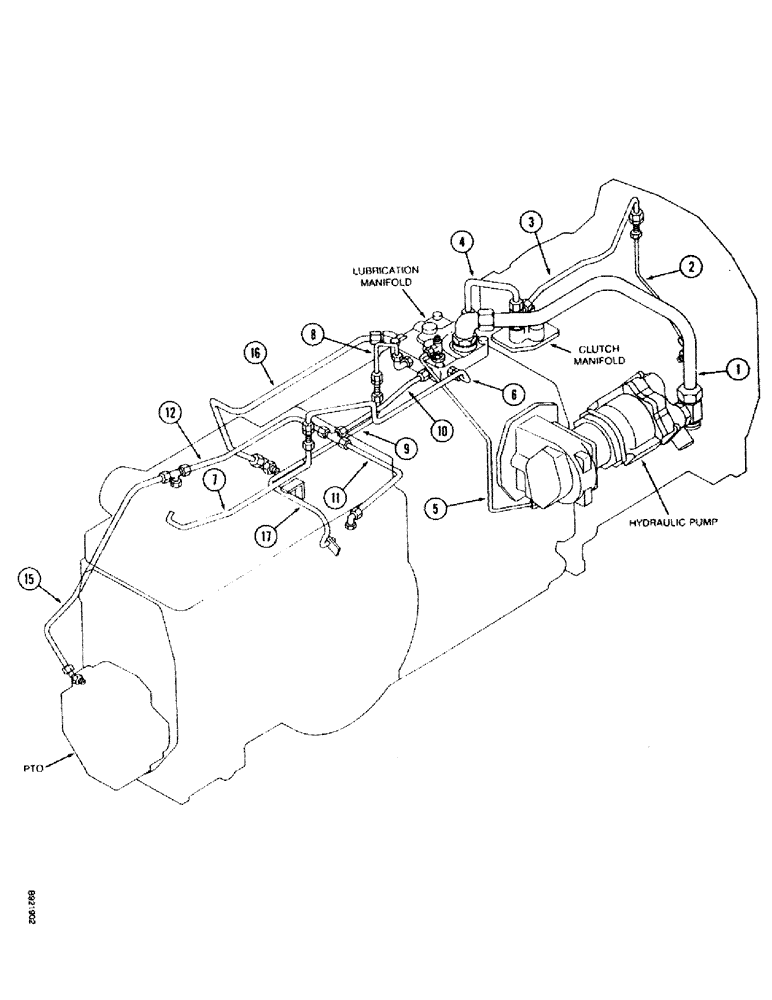

Схема запчастей Case IH 7110 - (1-20) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0044915 THROUGH AJB0055132 (00) - PICTORIAL INDEX
10
1
8
7
3
17
6
9
16
2
5
11
15
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Manifold Lubrication Tube, Pg 8-29

1шт.

2

Lubrication Supply Tube, Pg 6-23

1шт.

3

Creeper Drive Lubrication Tube, Pg 6-47

1шт.

4

Clutch Lubrication Tube, Pg 6-47

1шт.

5

Pump Drive Lubrication Tube, Pg 6-47

1шт.

6

Cylinder External Lubrication Tube, Pg 8-43

1шт.

7

Internal Lubrication Tube, Pg 6-47

1шт.

8

Range Spray Lubrication Tube, Pg 6-47

1шт.

9

Range Lubrication Tube, Pg 6-47

1шт.

10

Main Supply Lubrication Tube, Pg 6-49

1шт.

11

Right Brake Lubrication Tube, Pg 6-49

1шт.

12

Left Brake Lubrication Tube, Pg 6-49

1шт.

15

PTO Rear Lubrication Tube, Pg 6-49

1шт.

16

Range Input Lubrication Tube, Pg 6-47

1шт.

17

Bevel Gear Lubrication Tube, Pg 6-125

1шт.
