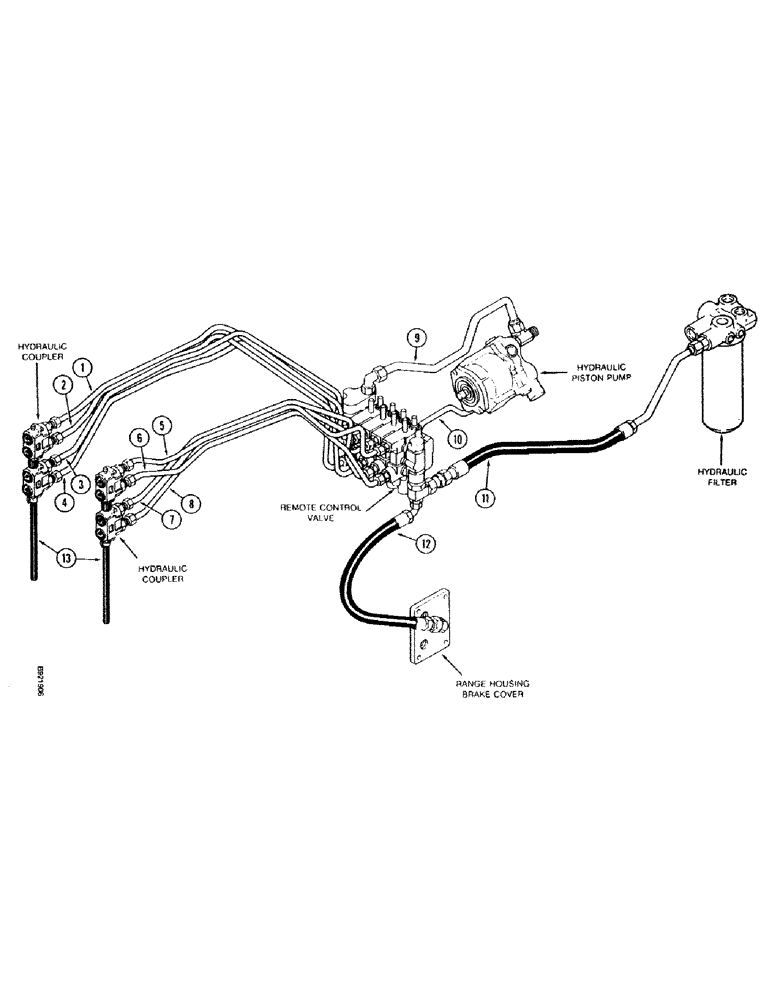

Запчасти Case IH 7110 (1-28) - PICTORIAL INDEX, REMOTE HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0055386 THROUGH AJB0060499 (00) - PICTORIAL INDEX

1

No. 1 Remote Drop Tube, Pg 8-59

1шт.

2

No. 1 Remote Raise Tube, Pg 8-59

1шт.

3

No. 2 Remote Drop Tube, Pg 8-59

1шт.

4

No. 2 Remote Raise Tube, Pg 8-59

1шт.

5

No. 4 Remote Drop Tube, Pg 8-85

1шт.

6

No. 4 Remote Raise Tube, Pg 8-85

1шт.

7

No. 3 Remote Drop Tube, Pg 8-75

1шт.

8

No. 3 Remote Raise Tube, Pg 8-75

1шт.

9

Priority Valve Supply Tube, Pg 8-31

1шт.

10

Pump Signal Tube, Pg 8-31

1шт.

11

Remote Return Hose, Pg 8-7

1шт.

12

Bleed Hose, Return, Pg 8-61, 8-61B

1шт.

13

Drain Hose, Coupler, Pg 8-59, 8-75

1шт.
