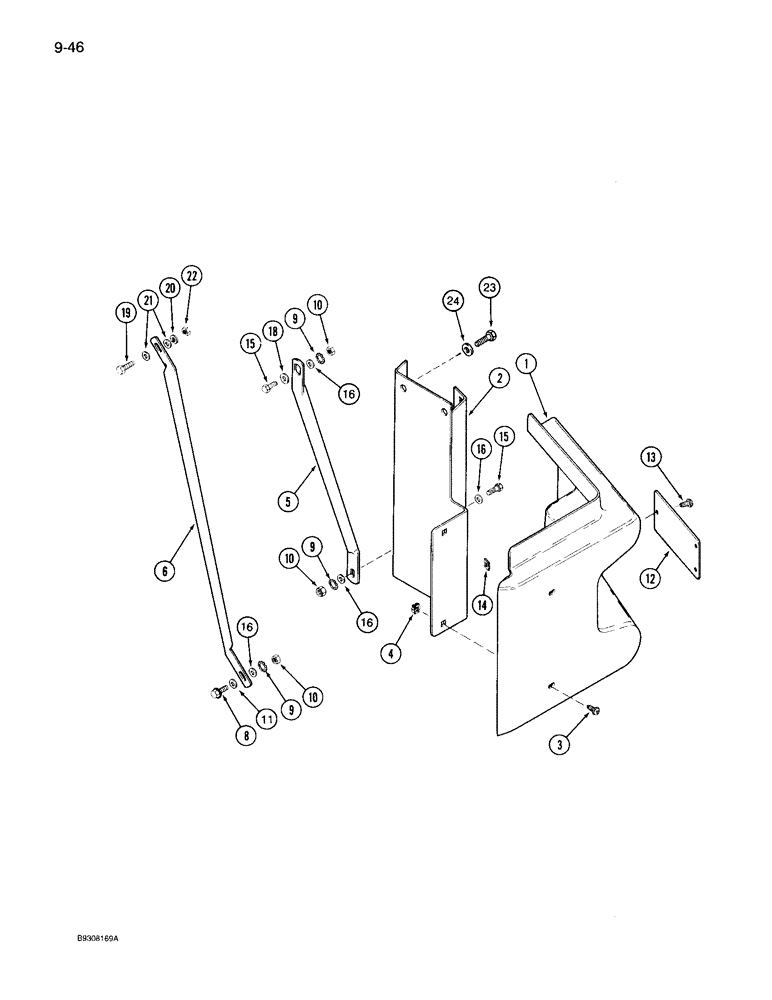

Запчасти Case IH 7110 (9-046) - HYDRAULIC OIL FILTER COVER, P.I.N. JJA0039446 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1348227C1

COVER ASSY

COVER - filter, hydraulic

1шт.

2

1348228C1

ANGLE

- hydraulic filter cover mounting

1шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

4шт.

4

104036C1

NUT

- expansion, No. 10-16 inch

4шт.

5

1348243C1

SUPPORT

ROD - mounting, filter cover

1шт.

6

1348244C1

SUPPORT

ROD - hydraulic filter cover support

1шт.

8

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 - 1.00 x 20 mm, Replaces: 845-6020

1шт.

9

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

3шт.

10

825-1406

NUT,M6, Cl 8

3шт.

11

195-81026

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/16 x 5/64 inch

1шт.

12

1334657C1

LARGE PLATE

PLATE - models without lower flood lamp, cover

1шт.

13

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

- special, 1/4 NC x 3/8 inch

3шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, hardened, 9/32 x 7/8 x 7/64 inch

1шт.

19

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

20

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

22

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

23

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
