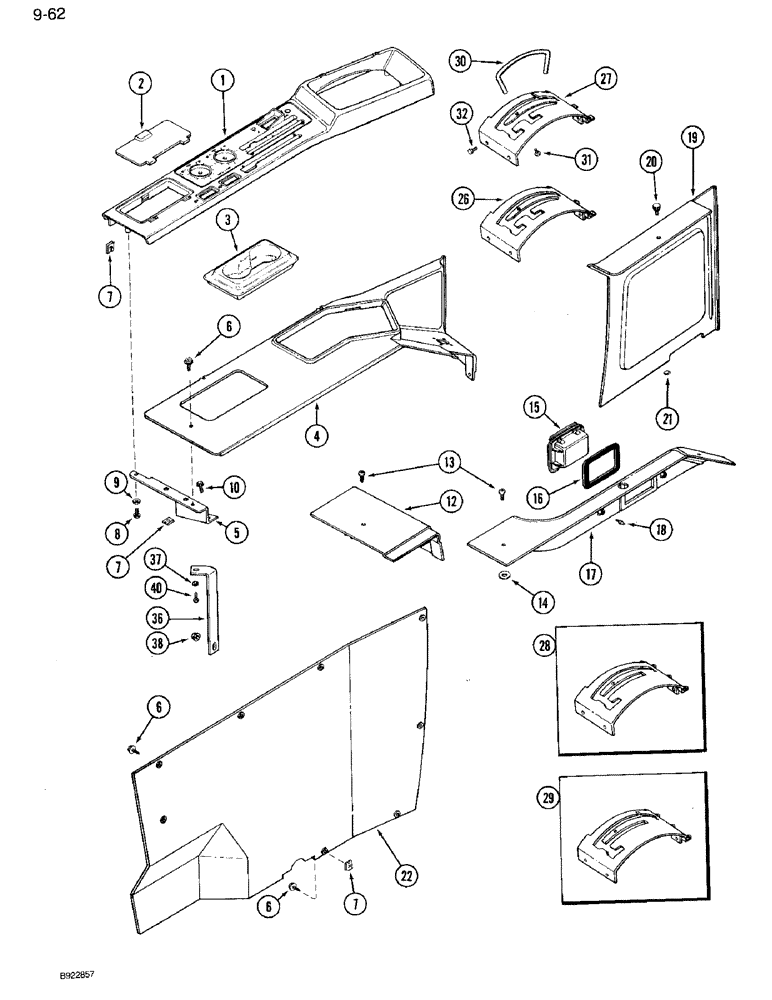

Запчасти Case IH 7120 (9-062) - FOUR POST ROPS, CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

1977588C2

COVER ASSY

COVER - control, hitch and transmission

1шт.

96998C1

LENS

amber, used with 1977588C2

1шт.

2

1977593C2

DOOR ASSY.

DOOR - hitch operation, with 1964671C4 decal, Replaces: 96730C3

1шт.

3

1344245C1

TRAY

- utility, Replaces: 97104C4

1шт.

4

97090C4

COVER

- remote

1шт.

5

96899C1

BRACKET

- cover support

1шт.

6

1975919C1

SELF-TAP SCREW

- cross slotted truss, polyseal

1шт.

7

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

1шт.

8

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- Phillips pan head, No. 10 NF x 1/2 inch

10шт.

9

495-31022

WASHER,#10

10шт.

10

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex, 6 x 20 mm

2шт.

12

97077C2

PANEL ASSY.

PANEL - corner end

1шт.

13

97207C1

SELF-TAP SCREW,#10 - 24 x 3/4"

- tapping, No. 10-24 x 3/4 inch

2шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 7/64") 1/2", SAE

1шт.

15

97000C1

ASH TRAY

TRAY - ash receiver

1шт.

16

97042C1

GASKET

- ash tray

1шт.

17

97089C3

PANEL ASSY.

PANEL corner, black

1шт.

17

96723C2

PANEL ASSY.

PANEL corner, grey

1шт.

18

1958720C1

STUD

- panel retaining

2шт.

19

1977811C2

PUMP

PANEL ASSEMBLY - cover, with decal, Replaces: 97092C4

1шт.

20

96956C2

BUTTON

KNOB - cover panel retaining

1шт.

21

1971363C1

RETAINER

- bolt

1шт.

22

97076C2

PANEL ASSY.

PANEL - console

1шт.

26

1981941C3

LARGE PLATE

PLATE ASSEMBLY - shift selector, 4-speed reverse, without creeper, if equipped, Replaces: 1340588C1 and 1981941C2, Includes: Decal

1шт.

REF

INSTRUCTION

DECAL - shift selector, 4-speed reverse, without creeper, See Figure 9-154

1шт.

27

1981942C4

LARGE PLATE

PLATE ASSEMBLY - shift selector, 4-speed reverse, with creeper, if equipped, Replaces: 1340589C1 and 1981942C3, Includes: Decal

1шт.

REF

INSTRUCTION

DECAL - shift selector, 4-speed reverse, with creeper, See Figure 9-154

1шт.

28

96577C5

PANEL

PLATE - shift selector, 2-speed reverse, without creeper, if equipped

1шт.

REF

INSTRUCTION

DECAL - shift selector, 2-speed reverse, without creeper, if equipped, See Figure 9-154

1шт.

29

97065C6

SECTOR

PLATE - shift selector, 2-speed reverse, with creeper, if equipped

1шт.

REF

INSTRUCTION

DECAL - shift selector, 2-speed reverse, with creeper, if equipped, See Figure 9-154

1шт.

30

96578C4

ROD

- rest, shift selector

1шт.

31

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

32

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 x 12 mm

4шт.

32

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

36

1974696C1

BRACKET

- console support

1шт.

37

495-31022

WASHER,#10

1шт.

38

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm, class 10.9

1шт.

40

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- pan head, No. 10-32 x 3/8 inch

1шт.
