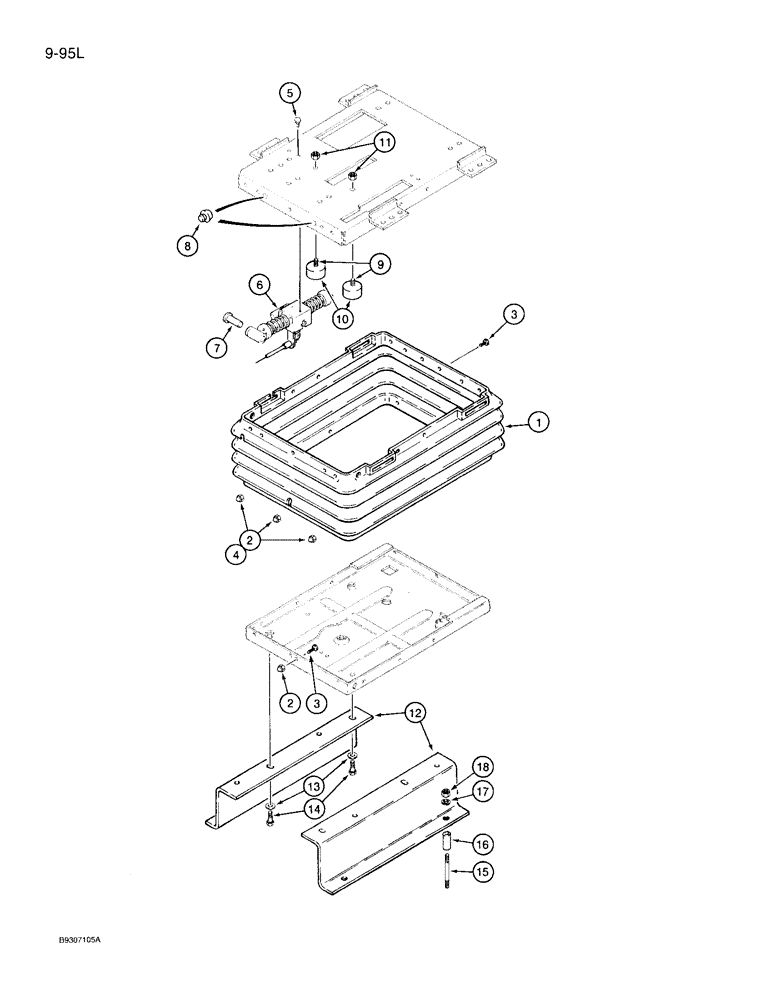

Запчасти Case IH 7120 (9-095L) - DELUXE AIR SUSPENSION SEAT, BOOT AND MOUNTS (09) - CHASSIS/ATTACHMENTS

1999936C1

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, parts list Figures 9-95A - 9-95L, Includes: Ref. 1 - 14 and P/N 132861A1 and 133421A1

1шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, parts list Figures 9-95C - 9-95L, Inlcudes: Ref. 1 - 11 and P/N 133421A1

1шт.

133421A1

PACKAGE

KIT - boot, with buttons, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

132872A1

KIT

- boot pins, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - dome

3шт.

3

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

23шт.

4

NSS

NOT SOLD SEPARAT

CLIP - dart

3шт.

5

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

6

132863A1

ISOLATOR

LATCH ASSEMBLY - isolator, fore and aft, component parts not serviced separately

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, included in 1990644C2 roller and kit on Figure 9-95G

1шт.

8

133422A1

BUMPER

- down stop

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, 1/4 NC x 3/4 inch

2шт.

10

1981849C2

SHOCK ABSORBER

BUMPER - upper housing

2шт.

11

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

12

134147A1

SUPPORT

BRACKET - mounting, seat

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

15

1954650C1

STUD

- 8 x 80 mm

4шт.

16

F15988

SPACER

- seat mounting

4шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
