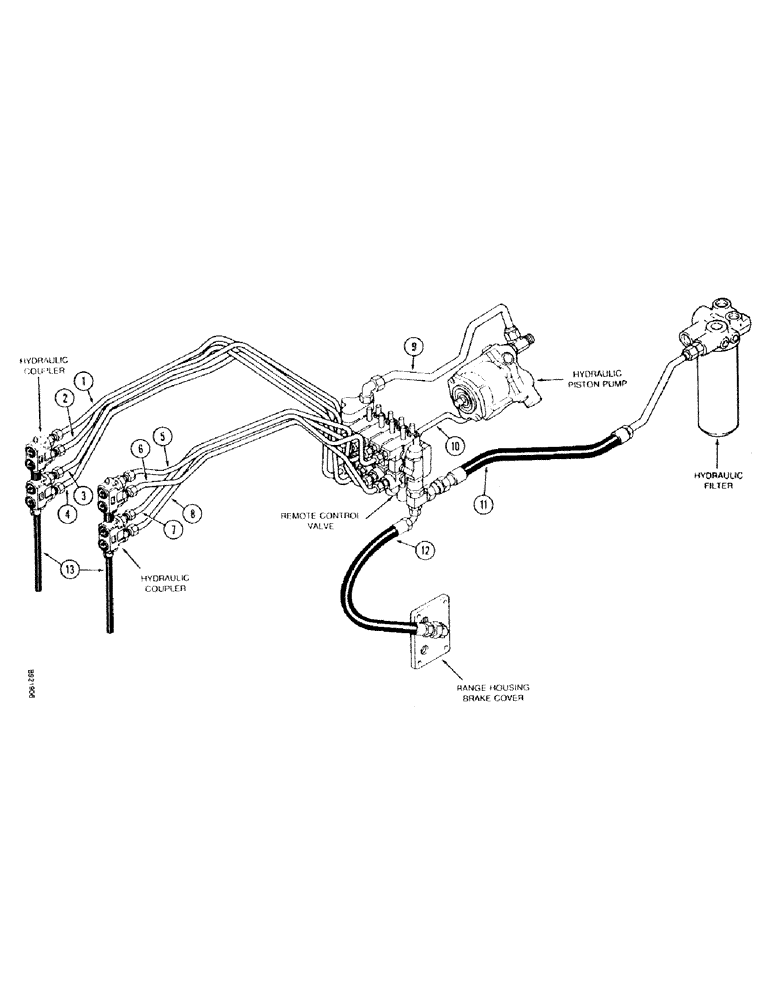

Запчасти Case IH 7140 (1-028) - PICTORIAL INDEX, REMOTE HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0055386 THROUGH AJB0060499 (00) - PICTORIAL INDEX

1

No. 1 Remote Drop Tube, Figure 8-56

1шт.

2

No. 1 Remote Raise Tube, Figure 8-56

1шт.

3

No. 2 Raise Drop Tube, Figure 8-56

1шт.

4

No. 2 Remote Raise Tube, Figure 8-56

1шт.

5

No. 4 Remote Drop Tube, Figure 8-80

1шт.

6

No. 4 Remote Raise Tube, Figure 8-80

1шт.

7

No. 3 Remote Drop Tube, Figure 8-72

1шт.

8

No. 3 Remote Raise Tube, Figure 8-72

1шт.

9

Priority valve Supply Tube, Figure 8-28

1шт.

10

Pump Signal Tube, Figure 8-28

1шт.

11

Remote Return Hose, Figure 8-04

1шт.

12

Bleed Hose, Return, Figure 8-58, 8-59A

1шт.

13

Drain Hose, Coupler, Figure 8-56, 8-72, 8-80

1шт.
