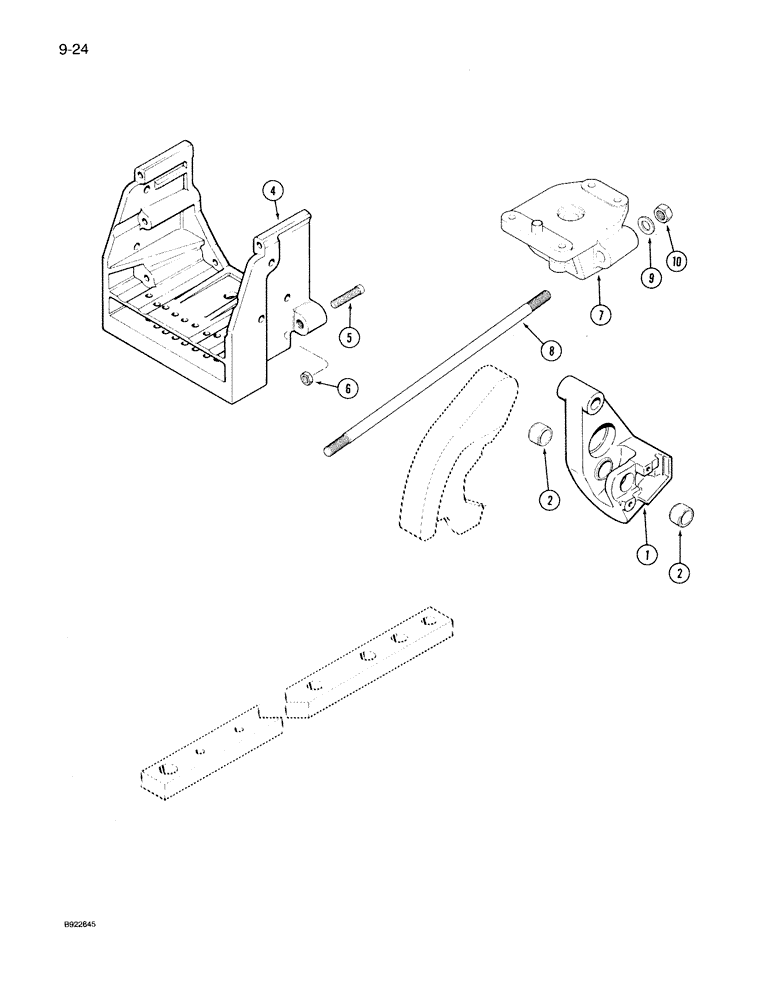

Запчасти Case IH 7140 (9-024) - REAR FRAME TIE ROD, PRIOR TO TRANSMISSION S/N AJB0014373 (09) - CHASSIS/ATTACHMENTS

1982149C1

SET OF PARTS

KIT - rear frame tie rod, Includes: Refs. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - lower link, left, Includes: Ref. 2

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - lower link, right, Shown, Includes: Ref. 2

1шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

- bracket

1шт.

4

1286979C3

SUPPORT

- limiter, cam

1шт.

5

879-32080

SET SCREW,Hex Skt, M20 x 80mm, Flat Pt

SCREW - hex socket, 20 x 80 mm

2шт.

6

829-1320

NUT,M20, Cl 10

- hex, 20 mm, class 10.9

2шт.

7

1982131C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - drawbar pivot

1шт.

8

1981979C1

THREADED ROD

ROD - tie, drawbar support

2шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 ID x 44 x 5 mm, hardened

2шт.

10

832-41324

NUT,M24 x 3, Cl 10

NUT, LOCK, M24 x 3, Cl 10

2шт.
