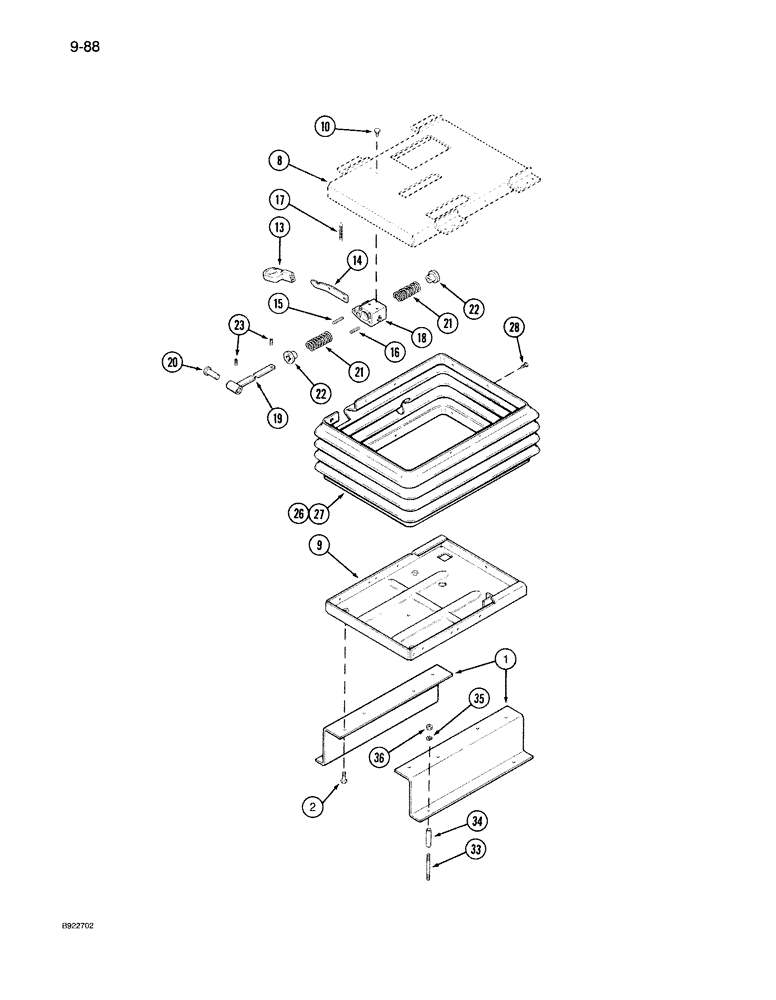

Запчасти Case IH 7150 (9-088) - AIR SUSPENSION SEAT, SUSPENSION AND MOUNTS, PRIOR TO P.I.N. JJA0028200 (09) - CHASSIS/ATTACHMENTS

1340097C3

SEAT

ASSEMBLY air suspension, includes seat belt and brackets, Replaces: 1340097C2, no longer available, order 1999936C1 seat assembly in Figure 9-099A, Includes: Refs. 1 thru 28

1шт.

1

1977735C1

SUPPORT

BRACKET - mounting, seat

2шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

1340096C1

SEAT

ASSEMBLY - air suspension, without seat belt and brackets, continued from Figure 9-084, no longer available, order 1999936C1 seat assembly in Figure 9-099A, Includes: seat suspension kit and Ref. 8 thru 28

1шт.

1343849C1

SET OF PARTS

KIT - seat suspension, continued from Figure 9-084, no longer available, order 1990641C2 kit, Figures 9-094 - 9-098, Includes: Refs. 8 thru 23

1шт.

8

REF

INSTRUCTION

HOUSING - upper, suspension, See Figure 9-084

1шт.

9

1981834C1

HOUSING

- lower, suspension

1шт.

10

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex head self-tapping, 5/16 NC x 3/4 inch

2шт.

1981837C1

LATCH

ASSEMBLY - isolator, fore and aft, use 1990645C1 kit, Figure 9-098, Includes: Refs. 13-23

1шт.

13

1981850C1

GRIP

KNOB - isolator control, fore and aft, no longer available, order 1999692C1 kit shown below

1шт.

14

NSS

NOT SOLD SEPARAT

LATCH - isolator Replaces: 1343884C1

1шт.

15

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

16

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - extension Replaces: 1981863C1

1шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK - isolator Replaces: 1981839C1

1шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

19

NSS

NOT SOLD SEPARAT

BAR - spring Replaces: 1981838C1

1шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - spring bar Replaces: 1981846C1

1шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - compression Replaces: 1981840C1

2шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - spring Replaces: 1981841C1

2шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

23

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

Part of Kit P/N 1990645C1 in Figure 9-098

1шт.

26

1344090C1

SET OF PARTS

KIT - boot, suspension, Replaces: 1981786C1, no longer available, order 1990647C2 kit, Figure 9-098, Includes: Refs. 27-28

1шт.

27

NSS

NOT SOLD SEPARAT

BOOT - suspension, included in 1990647C2, Figure 9-098

1шт.

28

700709502

FASTENER

PIN - barbed, bag of 25, Replaces: 1343837C1, included in 1990647C2 kit, Figure 9-098

1шт.

33

1954650C1

STUD

- 8 x 80 mm

4шт.

34

F15988

SPACER

- mounting, seat

4шт.

35

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, Includes: Ref. 22 in Figure 9-082 and Ref. 13 in this figure

1шт.
