(1-046) - PICTORIAL INDEX, HITCH HYDRAULICS

Запчасти Case IH 7150 (1-046) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX

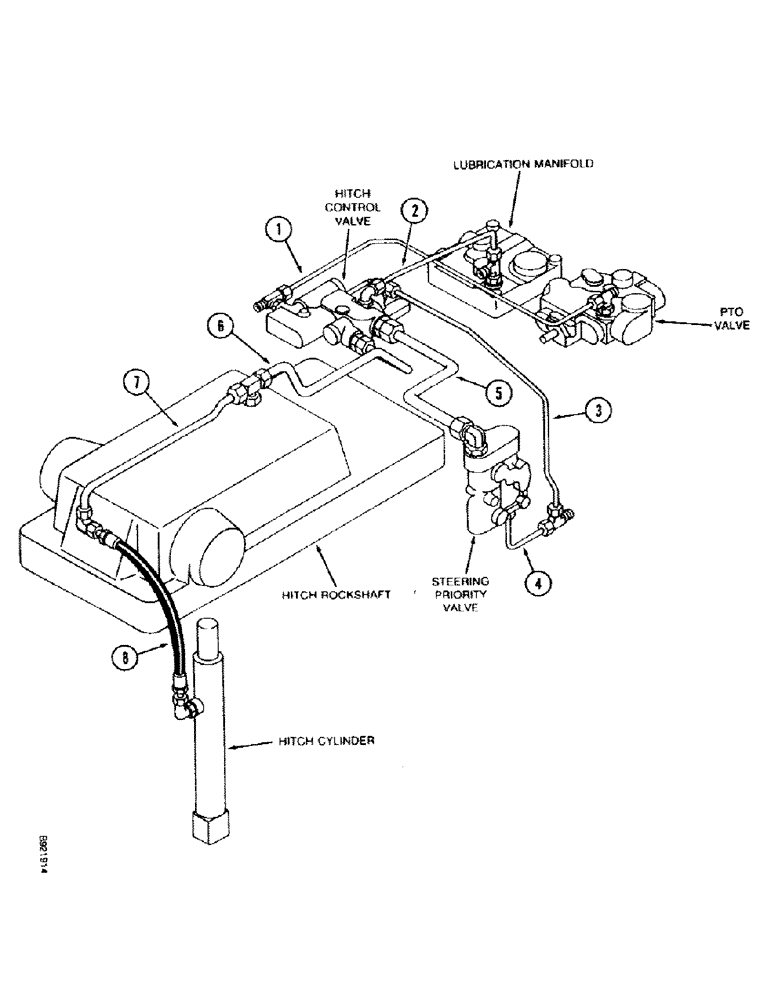

Схема запчастей Case IH 7150 - (1-046) - PICTORIAL INDEX, HITCH HYDRAULICS (00) - PICTORIAL INDEX
4
8
2
5
3
1
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Pilot Pressure Tube, Figure 8-40

1шт.

2

Valve Return Tube, Figure 8-40

1шт.

3

Signal Tube, Figure 8-40

1шт.

4

Short Signal Pump Tube, Figure 5-06, 5-08

1шт.

5

Valve Inlet Tube, Figure 8-40

1шт.

6

Cylinder Supply Hose, Figure 8-42

1шт.

7

Hitch Booster Tube, Figure 8-40

1шт.

8

Cylinder Assist Hose, Figure 8-40

1шт.
