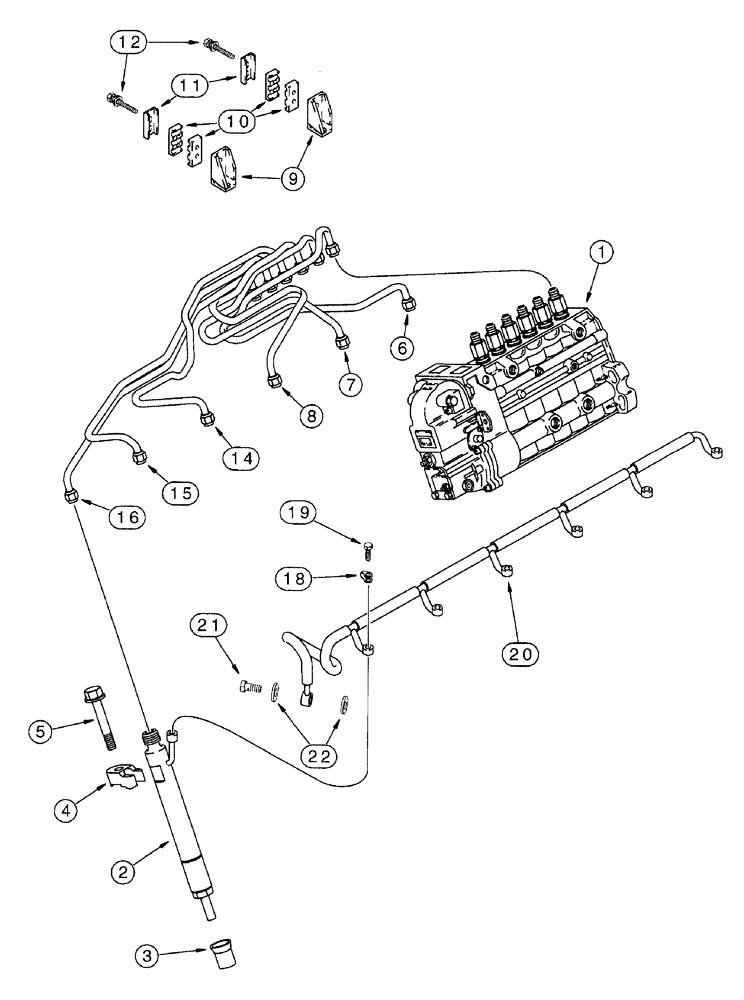

Запчасти Case IH 7210 (3-002) - FUEL INJCTION SYSTEM, 6T-830 ENGINE, ALL 7210 TRACTORS, 7220 MODELS PRIOR TO P.I.N. JJA0064978 (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, new, 7210 Tractor only, for correct assembly and components, see fig. 3-12

1шт.

1

J922145

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, 7220 Tractor only prior to Tractor P.I.N. JJA0064978, parts list fig. 3-14

1шт.

1

JR922145

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC922145

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list fig. 3-18

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 3 cylinder

1шт.

9

J917777

BRACE

BRACKET - fuel tube

2шт.

10

J917747

CLAMP

fuel tube

4шт.

11

J904519

SUPPORT

tube retaining

2шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

Replaces J917712 bolt and J903723 washer

4шт.

14

J910521

FUEL TUBE

fuel injector No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

fuel injector, No. 6 cylinder

1шт.

18

J903380

SEAL

connector

6шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

20

J920595

TUBE ASSY.

fuel drain

1шт.

21

J924726

BANJO BOLT

check, replaces J916360 valve

1шт.

22

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.
