(9-118) - CAB, REAR ACCESS KIT AND SUNVISOR

Запчасти Case IH 7220 (9-118) - CAB, REAR ACCESS KIT AND SUNVISOR (09) - CHASSIS/ATTACHMENTS

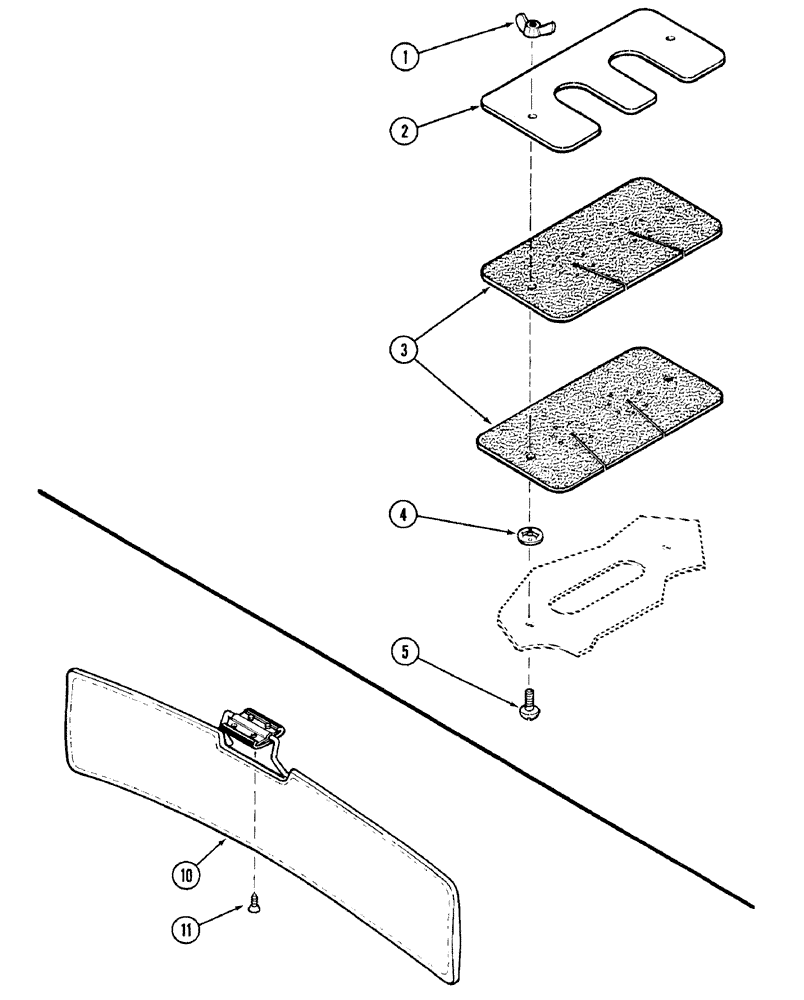

Схема запчастей Case IH 7220 - (9-118) - CAB, REAR ACCESS KIT AND SUNVISOR (09) - CHASSIS/ATTACHMENTS
2
1
3
11
10
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A167146

PACKAGE

ACCESS KIT - rear, cab, order from Machinery Price List

1шт.

1

129-500

WING NUT,#10-32

2шт.

2

A165352

PLATE

cable access

1шт.

3

A165354

SEAL

cable access

2шт.

4

A165523

FASTENER

RETAINER - special

2шт.

5

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

10

97133C1

VISOR, SUN

1шт.

11

1971367C2

SELF-TAP SCREW,Cross Oval Hd, #10-16 x 3/4"

Polyseal

2шт.
