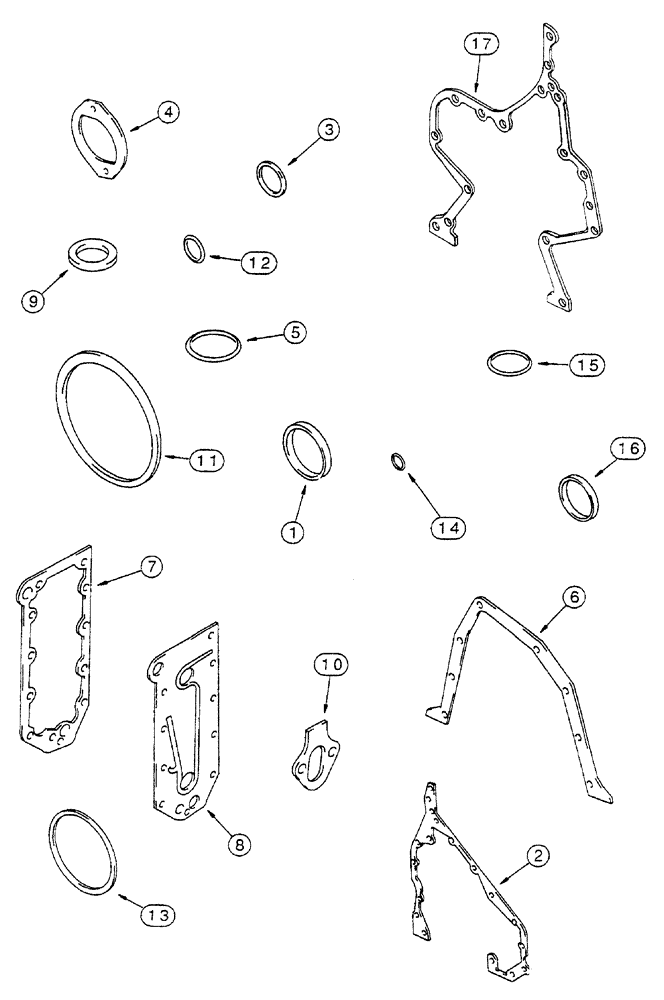

Запчасти Case IH 7250 (2-136) - CYLINDER BLOCK GASKET KIT, 6T-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINE, PIN JJA0064978 AND AFTER (02) - ENGINE

A77855

KIT

gasket, cylinder block

1шт.

For complete engine overhaul, order (1) valve grind kit, Figure 2-134, (1) cylinder block kit and (1) oil pan gasket kit, Figure 2-62; the front and rear crankshaft seal kit, Figure 2-114; and the required cylinder head gasket, Figure 2-66.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J929253

GASKET

housing, gear

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

4

J931608

GASKET

access cover plate, replaces J919601 gasket

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

water pump

1шт.

6

J914301

GASKET

rear cover retainer, crankshaft

1шт.

7

J918174

GASKET,0.71mm Thk

cooler core, oil

1шт.

8

J929011

GASKET,1.19mm Thk

cooler cover, oil

1шт.

9

J901798

SEALING WASHER

WASHER - sealing

1шт.

10

J931059

GASKET

mounting, fuel transfer pump, replaces J923054 gasket

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sealing, sleeve

6шт.

14

J913994

O-RING

sealing

1шт.

15

J916284

O-RING

O-RING

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING - quad, fuel injection pump

1шт.

17

J931351

GASKET

gear housing

1шт.
