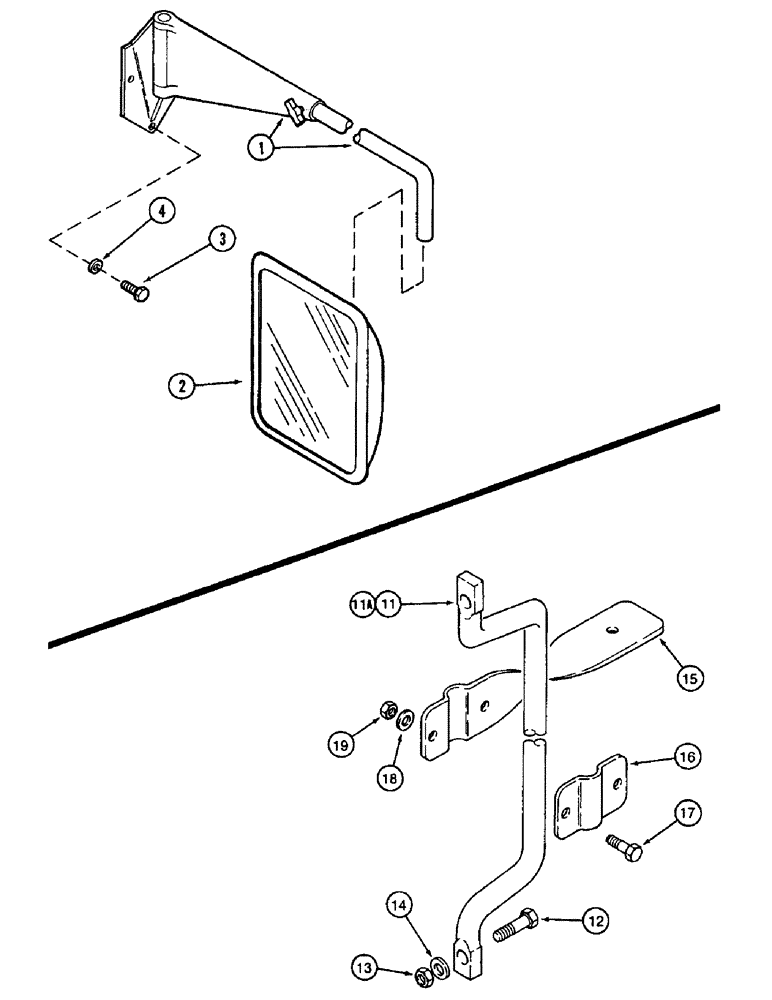

Запчасти Case IH 8930 (9-106) - MIRROR AND MONITOR MOUNTING KITS (09) - CHASSIS/ATTACHMENTS

1

1530998C1

SUPPORT ASSY.

BRACKET ASSEMBLY - mirror, left-hand or right-hand, pivot bolt has an M22 head on bolt, no longer available, order 1530998C2 assembly

2шт.

Ref # 1 (1530998C1): The bracket-plate from the cab assy which #1 bolts to is NSS. It is a weldment to the cab assy. For safety & liability reasons, it is NSS.

1шт.

1

1530998C2

SUPPORT

BRACKET ASSEMBLY - mirror, left-hand, pivot bolt has an M13 head on bolt, 258476A1 is a component, Includes: Ref.

2шт.

136294A1

SUPPORT

KIT - mounting bracket

1шт.

136296A1

PAWL

KIT - detent, if used, to service 1530998C1 assembly

1шт.

NSS

NOT SOLD SEPARAT

KIT - detent, if used, to service 1530998C2 assembly

1шт.

136298A1

ARM

KIT - if used, to service 1530998C1 assembly

1шт.

258477A1

ARM

KIT - if used, to service 1530998C2 assembly

1шт.

136299A1

TUBE

KIT - arm

1шт.

136300A1

HANDLE GRIP

KIT - handle

1шт.

2

185773A1

MIRROR

rear view, INCLUDES: CLAMP, MIRROR, BOLT, WASHER, CAP, BUSHING

2шт.

132219A1

CLAMP

mirror

1шт.

185774A1

MIRROR

glass

1шт.

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

185775A1

CAP

bolt head

1шт.

132220A1

BUSHING

mirror

1шт.

3

256320A1

BOLT

BOLT - hex, full threads, 8 - 1.25 x 20 mm, zinc cobalt plate, replaces 614-8020 bolt

6шт.

4

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, zinc cobalt plate, replaces 895-11008 washer

6шт.

104470A1

PACKAGE

MOUNTING KIT - monitor bar, two bracket, order from Machinery Price List, Includes: Ref. 11-19

1шт.

11

103212A1

BAR

monitor mounting, 356 mm (14-1/64 inch) long, kit

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Monitor mounting kit

2шт.

13

825-1410

NUT,M10, Cl 8

Monitor mounting kit

2шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Monitor mounting kits

2шт.

15

103213A1

HOLDER

BRACKET - mounting, monitor, kit

2шт.

16

103226A1

CLAMP

mounting bracket, monitor kit

2шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Monitor mounting kit

4шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Monitor mounting kit

4шт.

104471A1

PACKAGE

MOUNTING KIT - monitor bar, three bracket, order from Machinery Price List, Includes: Ref. 11A-19

1шт.

11a

104466A1

BAR

monitor mounting, 556 mm (21-7/8 inch) long, kit

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Monitor mounting kit

2шт.

13

825-1410

NUT,M10, Cl 8

Monitor mounting kit

2шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Monitor mounting kits

2шт.

15

103213A1

HOLDER

BRACKET - mounting, monitor, kit

3шт.

16

103226A1

CLAMP

mounting bracket, monitor kit

3шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Monitor mounting kit

6шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Monitor mounting kit

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Monitor mounting kit

4шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Monitor mounting kit

6шт.
