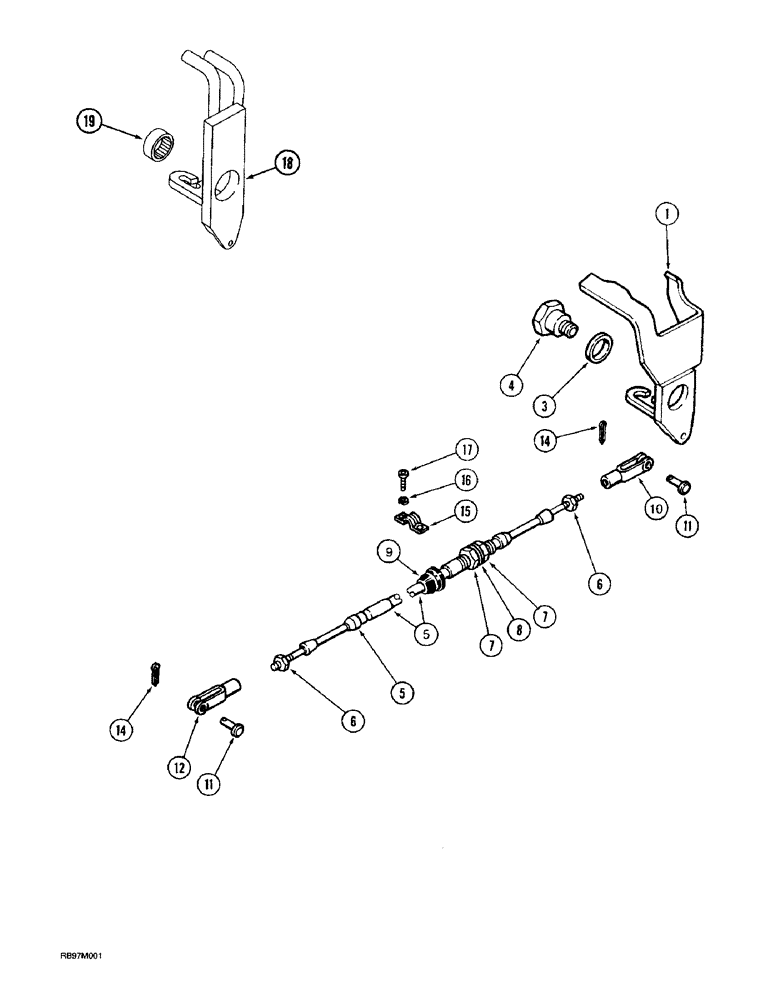

Запчасти Case IH 8940 (6-052) - TRANSMISSION, PARK LOCK CONTROL (06) - POWER TRAIN

1

1981906C3

LEVER

ASSEMBLY - park lock (Without manual shuttle shift), Includes: Ref. 3

1шт.

3

96423C1

NEEDLE BEARING,1" ID x 1.2505" OD x 0.5"

needle

1шт.

4

1340016C1

BOLT,Parklock Pivot Shldr, Hex, M16 x 2 x 26.23mm

shoulder

1шт.

5

1267745C3

CABLE

ASSEMBLY - park lock, Includes: Ref. 6, 7, 8, 9

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

7

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

2шт.

8

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

9

96989C2

GROMMET

cable

1шт.

10

213-124

ADJUSTABLE CLEVIS,1/4"-28

1шт.

11

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

2шт.

12

28787R1

CLEVIS COUPLING

cable

1шт.

14

432-48

COTTER PIN,1/16" x 1/2"

2шт.

15

120008C1

CLAMP

cable

1шт.

16

892-11004

LOCK WASHER,M4

2шт.

17

863-4012

HEX SOC SCREW,M4 x 12mm, Cl 12.9

BOLT - hex socket, 4 - 0.7 x 12 mm, class 10.9

2шт.

18

292518A1

LEVER

ASSEMBLY - park lock (With manual shuttle shift), Includes: Ref. 19

1шт.

19

96423C1

NEEDLE BEARING,1" ID x 1.2505" OD x 0.5"

needle

1шт.
