(4-046) - RADIO AND SPEAKERS

Запчасти Case IH 8940 (4-046) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

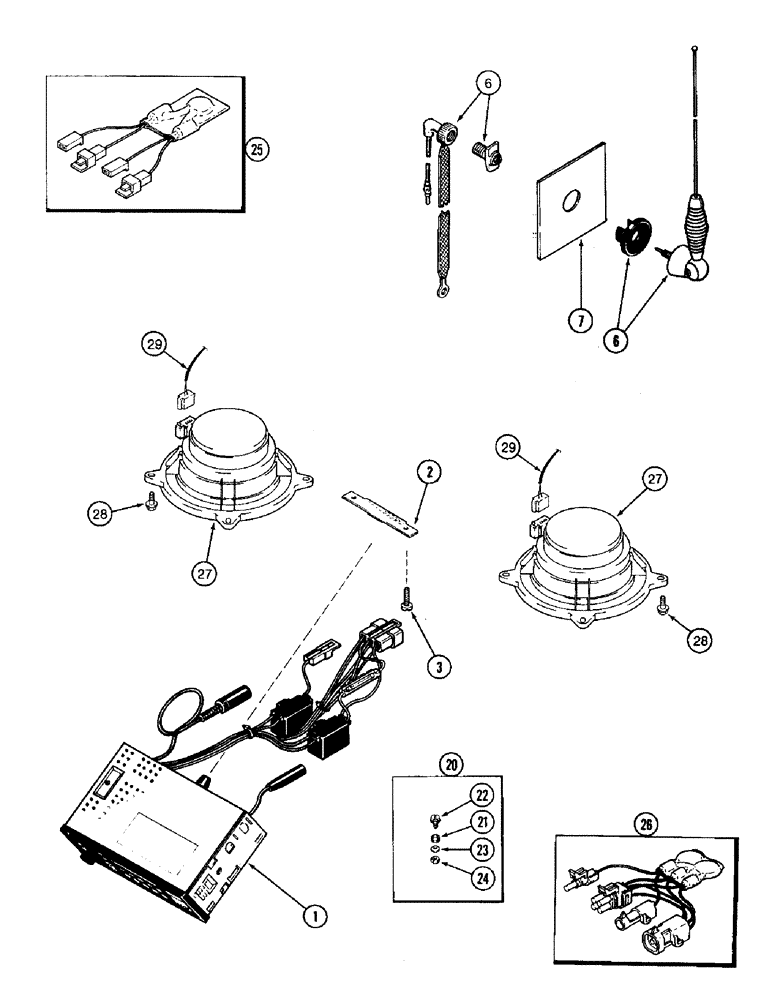

Схема запчастей Case IH 8940 - (4-046) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS
29
22
27
26
23
7
1
29
27
28
24
2
25
28
6
21
6
3
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

141950A2

RADIO

AM-FM stereo, order ZAE1000 radio from Machinery Price List

1шт.

1

141951A2

RADIO

AM-FM stereo, with cassette tape player, order ZAE3000 from Machinery Price List

1шт.

2

97127C3

SUPPORT ASSY.

radio

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

2шт.

6

191842A2

ANTENNA

ASSEMBLY - radio, includes base, mast, cable, and hardware, with 90 degree antenna connector

1шт.

1987530C1

SCREW

flat head, special, antenna base, not shown

1шт.

7

253420A1

SUPPORT

PLATE - mounting, antenna

1шт.

20

1964958C1

KIT

radio support, Includes: Ref. 21-24

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - rubber

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex, 5 x 15 mm

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

1шт.

24

NSS

NOT SOLD SEPARAT

NUT - hex lock, 5 mm

1шт.

25

1987508C1

SUPPRESSOR

blower frequency

1шт.

26

1987509C1

SUPPRESSOR

wiper frequency

1шт.

27

182721A2

SPEAKER

radio, 5-1/4 inch, round, mounts in rear headliner

2шт.

28

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

machine, hex washer head, No. 8 NC x 3/4 inch

8шт.

29

195551A1

HARNESS

adapter, speakers to headliner harness

2шт.
