(14.102.05[03]) - PTO 540/1000 RPM - COVER AND ENGAGEMENT, WITH CONTINUOUSLY VARIABLE TRANSMISSION

Запчасти Case IH MAGNUM 190 (14.102.05[03]) - PTO 540/1000 RPM - COVER AND ENGAGEMENT, WITH CONTINUOUSLY VARIABLE TRANSMISSION (14) - MAIN GEARBOX & DRIVE

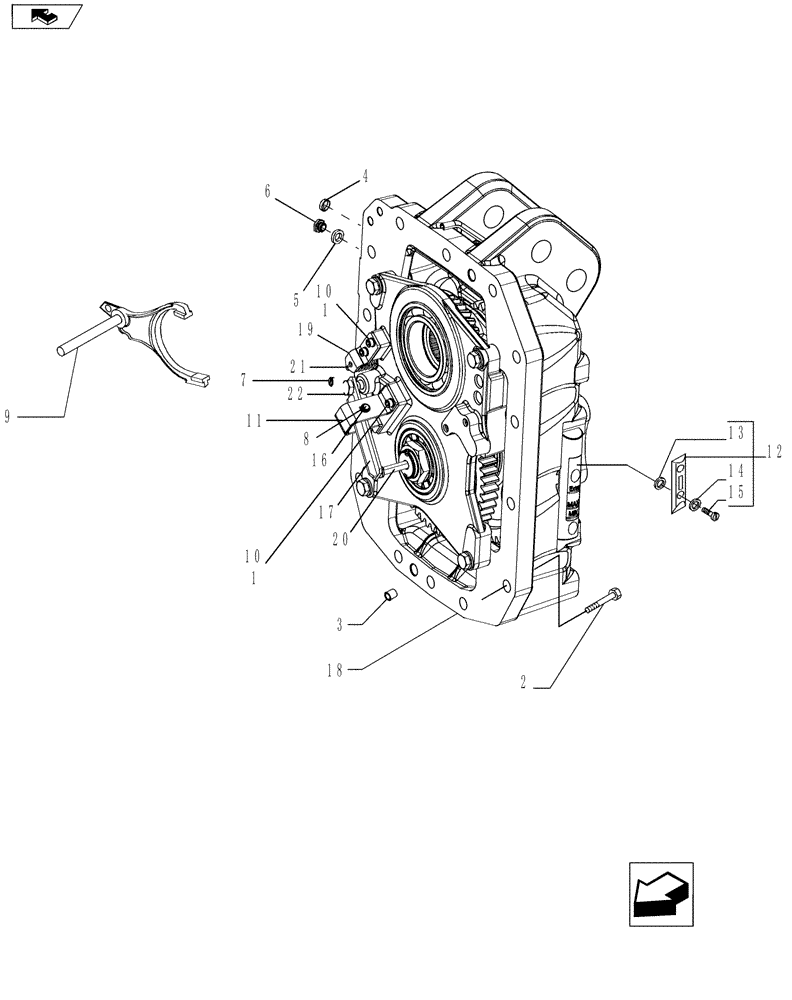

Схема запчастей Case IH MAGNUM 190 - (14.102.05[03]) - PTO 540/1000 RPM - COVER AND ENGAGEMENT, WITH CONTINUOUSLY VARIABLE TRANSMISSION (14) - MAIN GEARBOX & DRIVE
20
16
home
2
5
22
18
8
12
11
9
21
19
14
10
1
17
1
4
13
7
3
6
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

2

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

12шт.

2

15981224

BOLT,Hex, M16 x 1.5 x 65mm, Cl 8.8

2шт.

3

44908048

BUSHING,16mm OD x 14mm L

2шт.

4

14328701

PLUG,M20, Tapered

1шт.

5

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

6

10300814

PLUG,HEX, M18 x 1.5

1шт.

7

5171363

PIN

Threaded

1шт.

8

11065976

CIRCLIP,M10, Ext

1шт.

9

87600402

YOKE

1шт.

10

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

4шт.

11

5179750

SUPPORT

1шт.

12

87356021

LEVEL GAUGE

Incl. 13, 14, 15

1шт.

13

87349969

RUBBER SEAL

2шт.

14

47130060

O-RING

2шт.

15

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

16

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

17

5171261

LEVER

1шт.

18

87576362

HOUSING

1шт.

19

87345949

SUPPORT

1шт.

20

87602927

PIN,10mm OD x 209mm L

1шт.

21

4983677

SPRING

1шт.

22

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.
