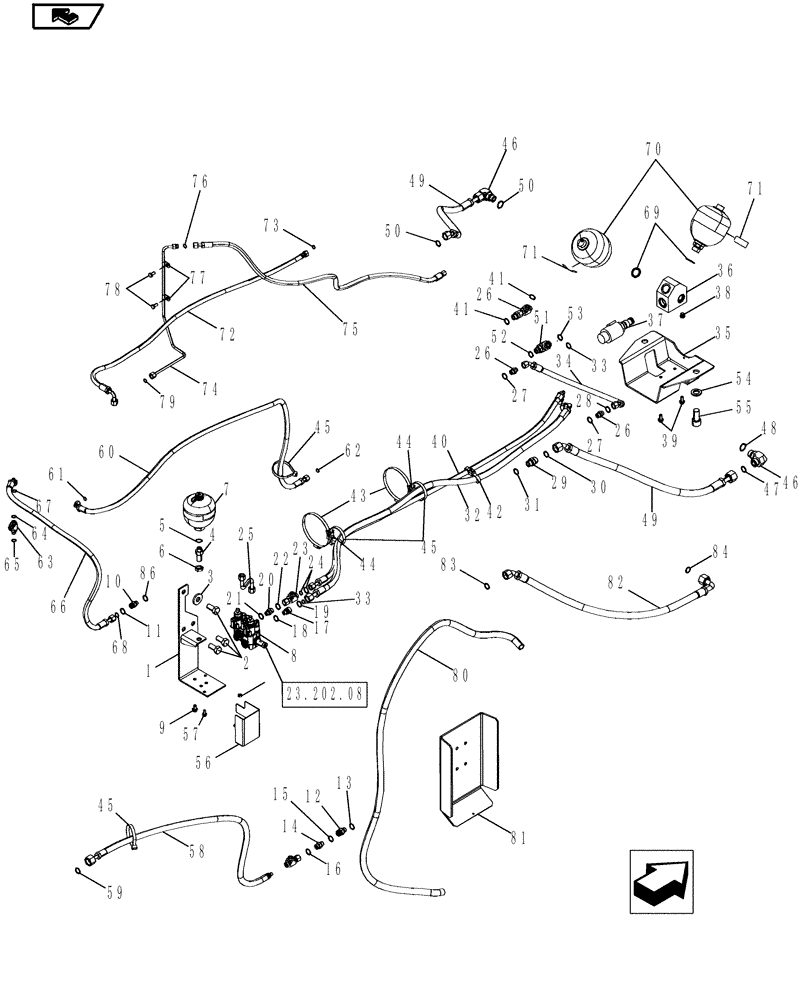

1
87751603
BRACKET
1шт.
2
627-20040
BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd
3шт.
3
86592703
WASHER,21mm ID x 50mm OD x 6mm Thk
1шт.
4
87381298
HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB
Inc. 5
1шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
6
701-903
NUT,13/16" - 16
1шт.
7
87602613
ACCUMULATOR,1L
1 Liter
1шт.
8
87668716
VALVE
Suspended Axle Control
1шт.
9
844-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
3шт.
10
86579676
HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB
Inc. 11, 86
1шт.
11
86598101
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
12
87476353
HYD CONNECTOR
Inc. 13
1шт.
13
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
1шт.
14
223971A1
CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB
Inc. 15, 16
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
17
87389189
HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB
Inc. 18, 19
1шт.
18
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
19
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
1шт.
20
700-169
HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB
Inc. 21, 22
1шт.
21
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
22
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
1шт.
23
701-416
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
Inc. 24
3шт.
24
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
25
84163522
HYD TUBE,0.50" OD
Emergency Brake Valve Outlet
1шт.
26
700-162
HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
Inc. 27, 28
2шт.
27
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
28
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
29
700-103
HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB
Inc. 30, 31
1шт.
30
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
31
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
32
87751605
HOSE
Axle Valve A Port, Inc. 33
1шт.
33
9992069
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
34
87623748
HOSE
Cylinder Cross-over
1шт.
35
84140980
BRACKET
Blocking Valve Support
1шт.
36
87749687
VALVE
1.4 Litre Accumulator Blocking, Inc. 37, 38
1шт.
37
87749685
BODY
1шт.
38
87749686
SOLENOID
1шт.
39
844-10025
BOLT,Hex, M10 x 25mm, Cl 8.8
4шт.
40
87751606
HOSE
Axle Valve B Port, Inc. 41
1шт.
41
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
42
86991000
CLAMP
1шт.
43
214-14104
HOSE CLAMP,155.45mm - 177.8mm
2шт.
44
86991001
SPACER
2шт.
45
86991007
CABLE TIE,509mm L
CABLE STRAP
4шт.
46
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Inc. 47, 48
2шт.
47
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
48
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
49
84143042
HOSE
Accumulator to Cylinder, Inc. 50
2шт.
50
9992069
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
4шт.
51
700-420
TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB
Inc. 52, 53
1шт.
52
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
53
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
54
896-11024
WASHER,26mm ID x 44mm OD x 5mm Thk
2шт.
55
2186808
HEX SOC SCREW,M24 x 50mm, Cl 8.8
2шт.
56
87753871
COVER ASSY
Suspension Valve
1шт.
57
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
58
84174366
HYDRAULIC HOSE
Valve Supply, Inc. 59
1шт.
59
9991976
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
60
84224847
HYDRAULIC HOSE,9.53mm ID x 2020mm L
Valve Load Sense, inc. 61, 62
1шт.
61
9825770
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
62
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
63
86579701
TEE,11/16"-16 ORFS x M16 x 1.5 ORB Run
Inc. 64, 65
1шт.
64
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
65
86598100
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
1шт.
66
84158913
HOSE
Valve Return, Inc. 67, 68
1шт.
67
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
68
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
69
340493A2
SEALING RING,30.3mm ID x 42.8mm OD x 2.5mm Thk
2шт.
70
87622941
ACCUMULATOR,1.4L
1.4 Liter
2шт.
71
82029752
DECAL
Warning
3шт.
72
84288731
HOSE ASSY.
Differential Lock Drain, Inc. 73
1шт.
73
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
74
84167888
HYD TUBE,0.375" OD
Front Differential Lock Supply, Inc. 79
1шт.
75
84152406
HOSE ASSY.
Differential Lock Supply, Inc. 76
1шт.
76
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
77
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
2шт.
78
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
If Used
2шт.
78
844-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
Flanged, If Used
2шт.
79
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
80
87403388
CONDUIT
Discharge Hose
1шт.
81
87662484
COVER
1шт.
82
87668713
HOSE
Accumulator to Left Hand Cylinder, Inc. 83, 84
1шт.
83
9992069
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
84
9991976
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
85
221580A1
PLUG,M27 x 2 ORB
(Not Shown)
1шт.
86
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
