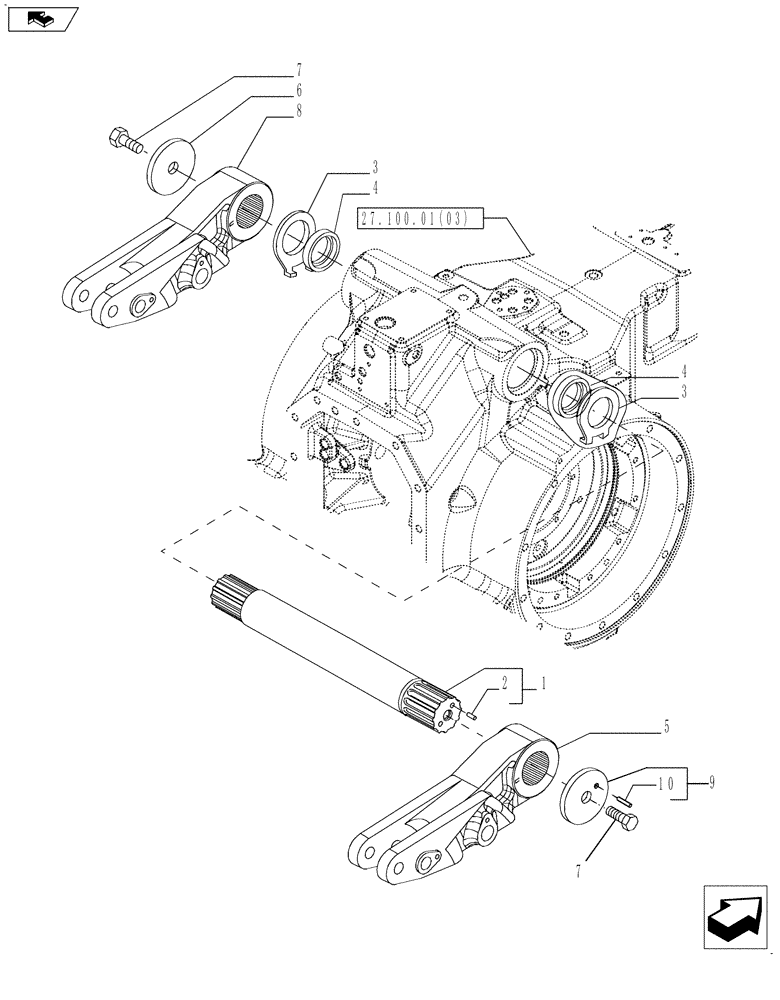

Запчасти Case IH MAGNUM 190 (39.110.01) - LIFTER, ROCK SHAFT & ASSOCIATES, WITH POWERSHIFT TRANSMISSION (39) - FRAMES AND BALLASTING

1

5198501

ROCKSHAFT,626mm L

1шт.

2

14163971

LOCK PIN,4mm OD x 20mm L

1шт.

3

5185953

SPACER,75.3mm ID x 130mm OD x 6mm L

2шт.

4

5185955

SEAL,80mm ID x 100mm OD x 8mm Thk

2шт.

5

5198416

LIFT ARM

1шт.

6

5185967

WASHER,21mm ID x 116mm OD x 8mm Thk

1шт.

7

15987924

BOLT,Hex, M20 x 1.5 x 40mm, Cl 8.8

M20x1.5x40

2шт.

8

5198417

LIFT ARM

1шт.

9

5198505

WASHER,20.5mm ID x 115mm OD x 8mm Thk

Inc. 10

1шт.

10

10336910

SPINDLE,6mm OD x 38mm L

1шт.
