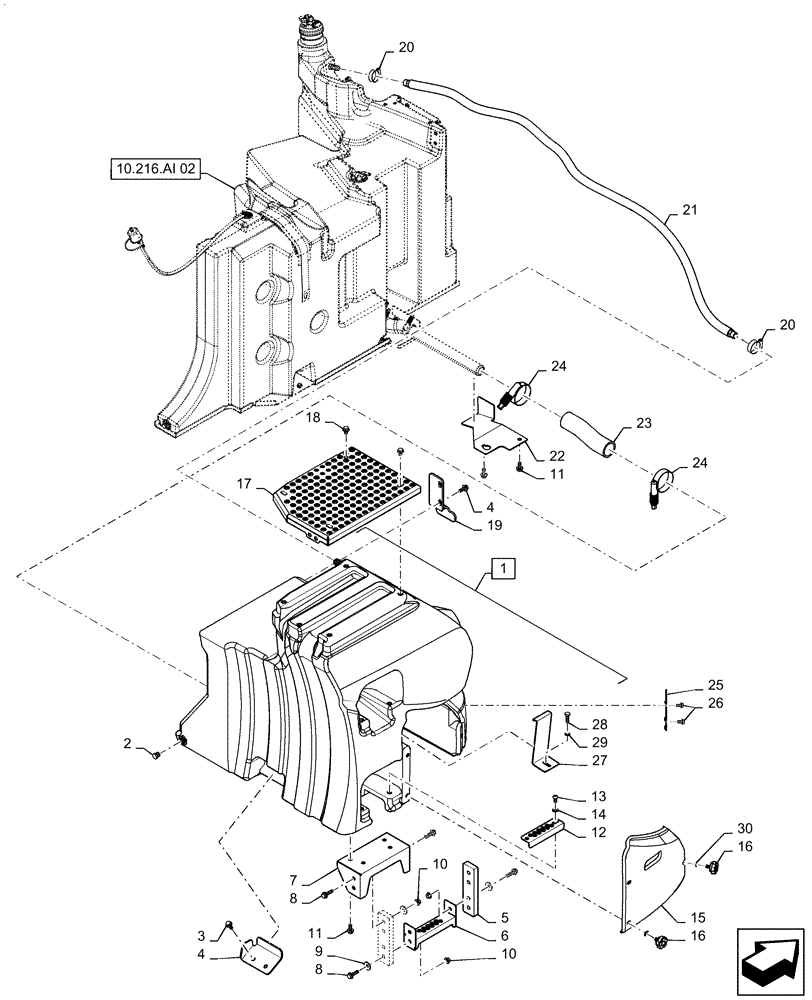

Запчасти Case IH MAGNUM 200 (10.216.AI[01]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

47442734

FUEL TANK

Assy, RH; Incl 2

1шт.

2

84466043

DRAIN PLUG

Fuel Tank

2шт.

3

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

4шт.

4

47492763

PLATE

Tank Support, Rear

1шт.

5

47403349

RISER

Flexible Step

2шт.

6

47403345

STEP

Fuel Tank, RH Lower

1шт.

7

47403350

PLATE

Step Support

1шт.

8

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

8шт.

9

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

5шт.

12

47403343

STEP

Fuel Tank, RH, Access

2шт.

13

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

M10 x 20 Full 10.9 ZN

4шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

15

47579529

ACCESS COVER

Battery Box

1шт.

16

84325019

KNOB

Battery Box Access Cover

3шт.

17

47410880

PLATFORM

Fuel Tank, RH Top

1шт.

18

87646158

BOLT,Hex, M10 x 15mm, Cl 8.8

Flange, M10 x 15 Full 8.8 znd

5шт.

19

47538833

PLATE

Fuel Tank Support

1шт.

20

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

Wormgear 20 x 32 mm STL ZND

2шт.

21

47394418

HOSE

Fuel Tank, Air Cross Over

1шт.

22

84601403

SHIELD

Hose, Fuel Tank

1шт.

23

84601405

FUEL HOSE

Crossover RH, 48mm ID x 6.4mm Thk x 256mm L

1шт.

24

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

25

47391201

MOUNTING PLATE

Fuse

1шт.

26

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

27

47522086

BRACKET

Battery Hold Down, Original Equipment, Use With Production Battery Only

1шт.

27

48071562

BRACKET

Battery Hold Down, Use With Production Battery or Service Battery

1шт.

28

86642317

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

29

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

30

47428266

RETAINER

Washer, Locking

3шт.
