(90.116.AC[07]) - FRONT FENDERS & FENDER MOUNTING PARTS - NARROW, CLASS 4.75 SUSPENDED FRONT AXLE

Запчасти Case IH MAGNUM 200 (90.116.AC[07]) - FRONT FENDERS & FENDER MOUNTING PARTS - NARROW, CLASS 4.75 SUSPENDED FRONT AXLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

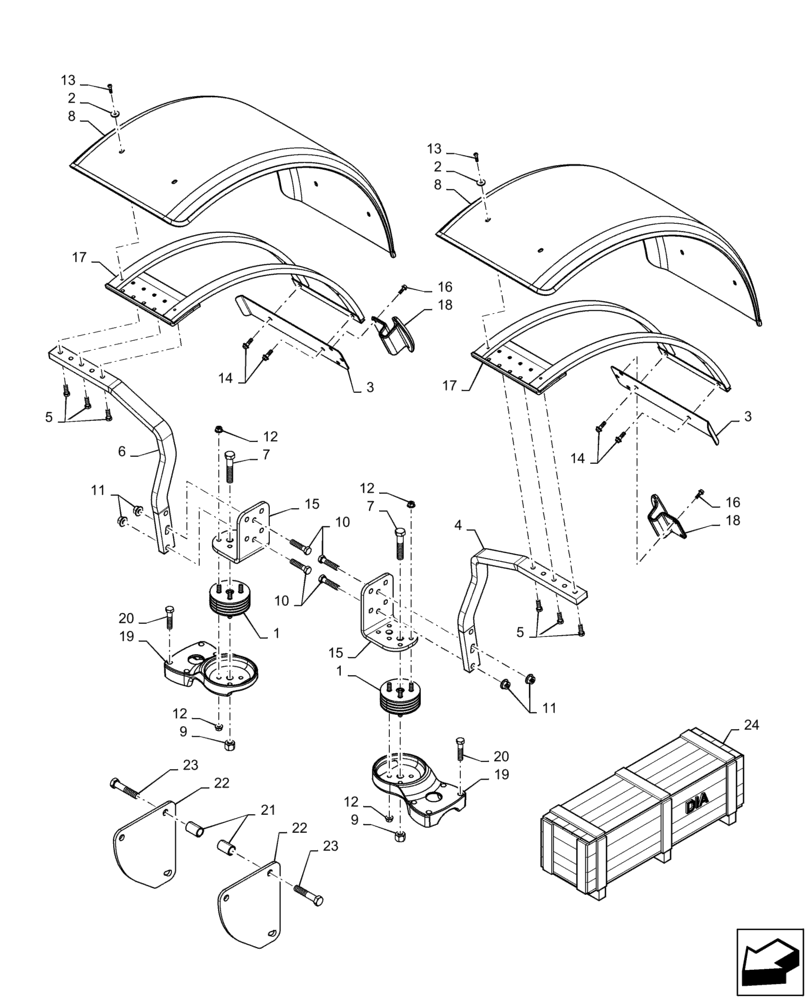

Схема запчастей Case IH MAGNUM 200 - (90.116.AC[07]) - FRONT FENDERS & FENDER MOUNTING PARTS - NARROW, CLASS 4.75 SUSPENDED FRONT AXLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
12
3
13
20
9
17
10
16
3
24
13
1
7
12
1
11
6
14
15
12
19
8
22
2
9
11
18
2
15
14
7
18
20
16
20
21
5
10
5
22
4
19
20
23
12
8
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

226690A2

RUBBER BUMPER

Isolator, Fender Mount

2шт.

2

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

3

47357515

SUPPORT

Fender Bumper Bar

2шт.

4

47796426

SUPPORT

Fender, LH

1шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

6

47796421

SUPPORT

Fender, RH

1шт.

7

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

8

84283483

FENDER

Narrow, 540 mm

2шт.

9

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

11

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

12

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

13

9849829

SCREW,M8 x 1.25 x 30mm

8шт.

14

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

15

84546385

SUPPORT

Fender, Upper

2шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

17

87411717

FRAME

Fender Support

2шт.

18

84546378

BUMPER

2шт.

19

84573070

BRACKET

Fender, Lower, Class 4.75 Axle

2шт.

20

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

21

84580679

SPACER

Fender Bumper Plate

6шт.

22

47535226

PAD

Fender Stop

2шт.

23

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

6шт.

24

47808589

DIA KIT, TRACTOR

MFD Fender, Narrow, Class 4.75 Axle with Saddle Suspension, Incl 1 - 23

1шт.
