(90.116.BA[01]) - FENDER MOUNTING BRACKETS

Запчасти Case IH MAGNUM 200 (90.116.BA[01]) - FENDER MOUNTING BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS

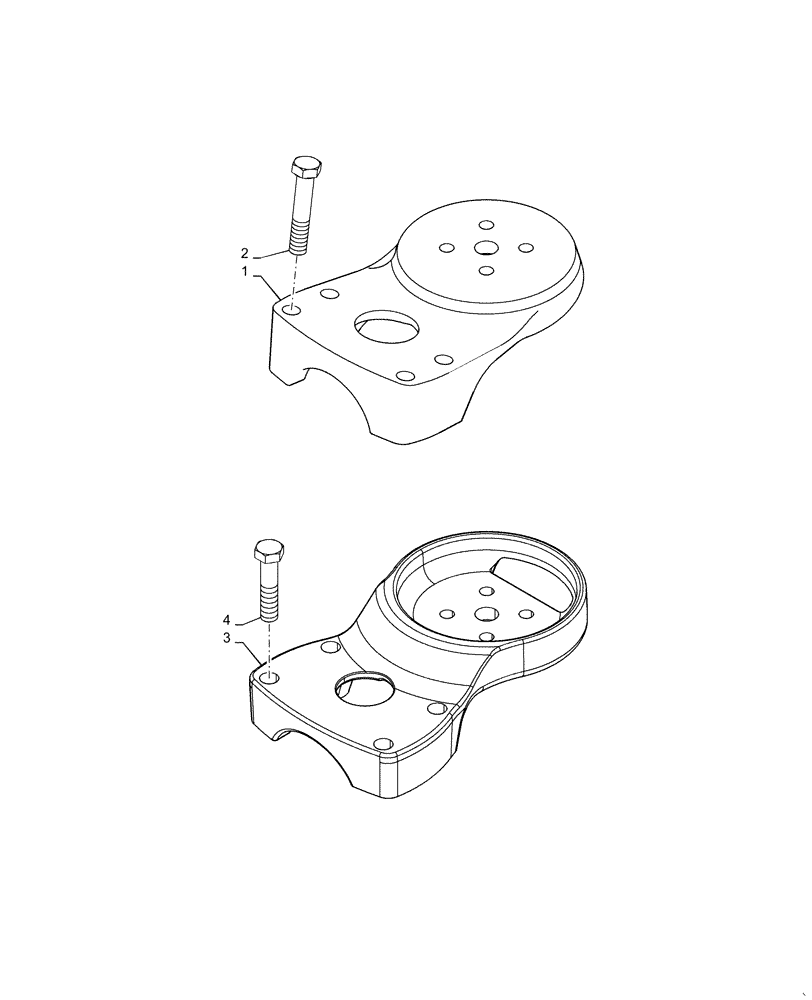

Схема запчастей Case IH MAGNUM 200 - (90.116.BA[01]) - FENDER MOUNTING BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47399567

BRACKET

Front Fender Mounting, To Steering Knuckle, Class 4 or 4.5 Axle

2шт.

2

1148521

BOLT,Hex, M16 x 85, 10.9

Class 4 or 4.5 Axle

8шт.

3

84573070

BRACKET

Front Fender Mounting, To Steering Knuckle, Class 4.75 or 5 Axle

2шт.

4

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Class 4.75 or 5 Axle

8шт.
