(27.100.01[05]) - REAR AXLE FINAL DRIVE GREASE LINES

Запчасти Case IH MAGNUM 225 (27.100.01[05]) - REAR AXLE FINAL DRIVE GREASE LINES (27) - REAR AXLE SYSTEM

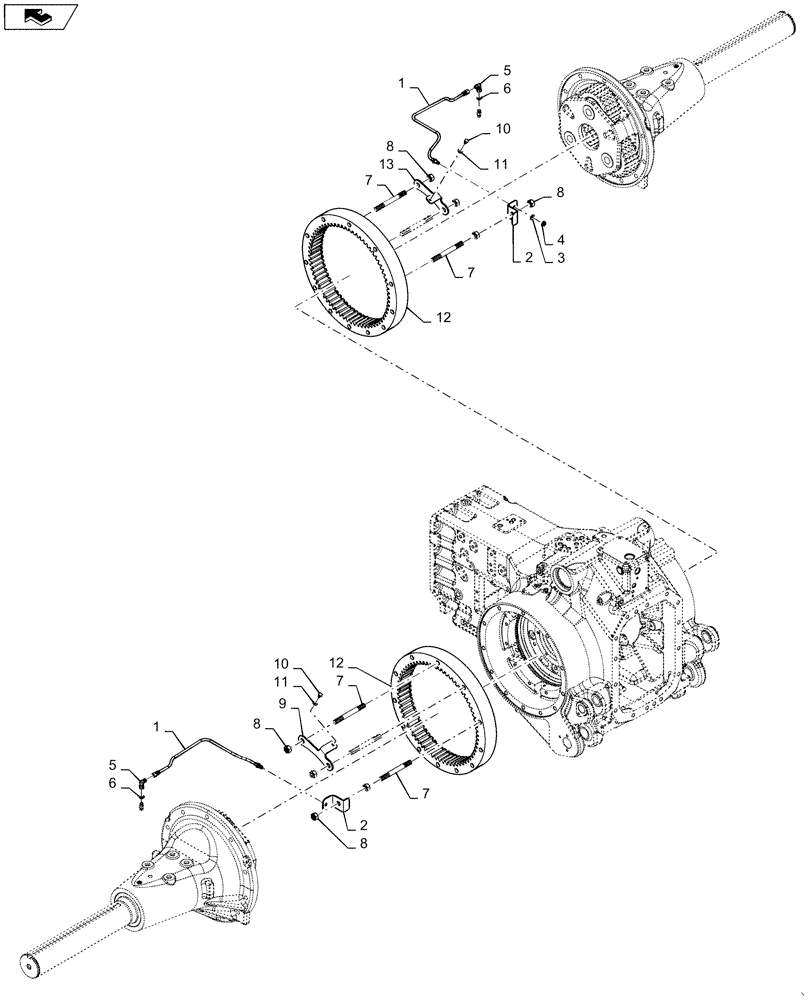

Схема запчастей Case IH MAGNUM 225 - (27.100.01[05]) - REAR AXLE FINAL DRIVE GREASE LINES (27) - REAR AXLE SYSTEM
10
1
7
7
1
8
5
13
home
6
7
8
12
2
8
11
2
10
12
6
9
3
7
8
4
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87572760

HOSE ASSY.,6.4mm ID x 533mm L

Grease

2шт.

2

84518551

BRACKET

Rear Axle Grease Hose

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

F53473

LOCK NUT,1/8-27 NPSM

1/8-27 NPSM Bank Lube Hose

2шт.

5

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

2шт.

6

87802702

HYD CONNECTOR

Adapter, M10-1.0 ORB to -4 Male JIC

2шт.

7

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

6шт.

8

12164124

NUT,M16 x 1.5, Cl 8

26шт.

9

84488700

BRACKET

RH Cyl Pipe

1шт.

10

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

12

87307352

RING GEAR

Inernal Final Drive

2шт.

13

84488702

BRACKET

LH Cyl Pipe

1шт.
