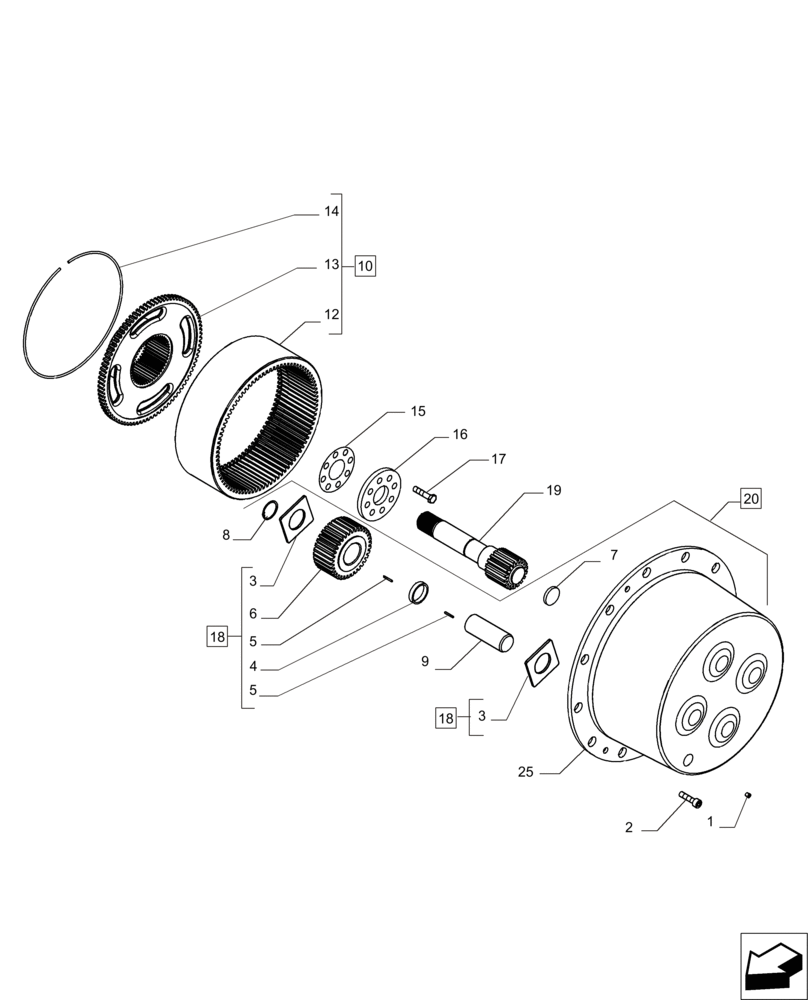

Запчасти Case IH MAGNUM 235 (25.108.AB[02]) - FRONT AXLE PLANETARIES AND HUB, MFD, 12 BOLT HUB - DANA (25) - FRONT AXLE SYSTEM

1

221-887

PLUG

2шт.

2

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

3

NSS

NOT SOLD SEPARAT

Washer, Incl in 18

8шт.

4

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 18

4шт.

5

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

328шт.

6

NSS

NOT SOLD SEPARAT

Pinon, Incl in 18

4шт.

7

302184A1

HOLE PLUG BUTTON

1шт.

8

100-21150

SNAP RING,1.50", Int, #150

4шт.

9

302196A1

PIN,38.1mm OD x 100mm L

4шт.

10

281985A1

RING GEAR,Assembly, Planetary

Incl 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Ring Gear, Incl in 10

1шт.

13

NSS

NOT SOLD SEPARAT

Plate, Incl in 10

1шт.

14

NSS

NOT SOLD SEPARAT

Lock Ring, Incl in 10

1шт.

15

302180A1

SHIM KIT

2шт.

16

281986A1

LARGE PLATE

PLATE, LARGE

2шт.

17

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

16шт.

18

316328A1

FIP KIT

Incl 3 - 6

1шт.

19

281982A3

SUN GEAR,Planetary Drive, HD, 18T

2шт.

20

302174A1

GEAR WHEEL

Incl 1 - 9

2шт.

20

302174A1R

REMAN-AXLE

Reman Incl 1 - 9

2шт.

20

302174A1C

CORE-AXLE

Core Return Number

2шт.
