(90.124.AC) - DELUXE SEAT WITH RETRACTABLE BELTS

Запчасти Case IH MAGNUM 235 (90.124.AC) - DELUXE SEAT WITH RETRACTABLE BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

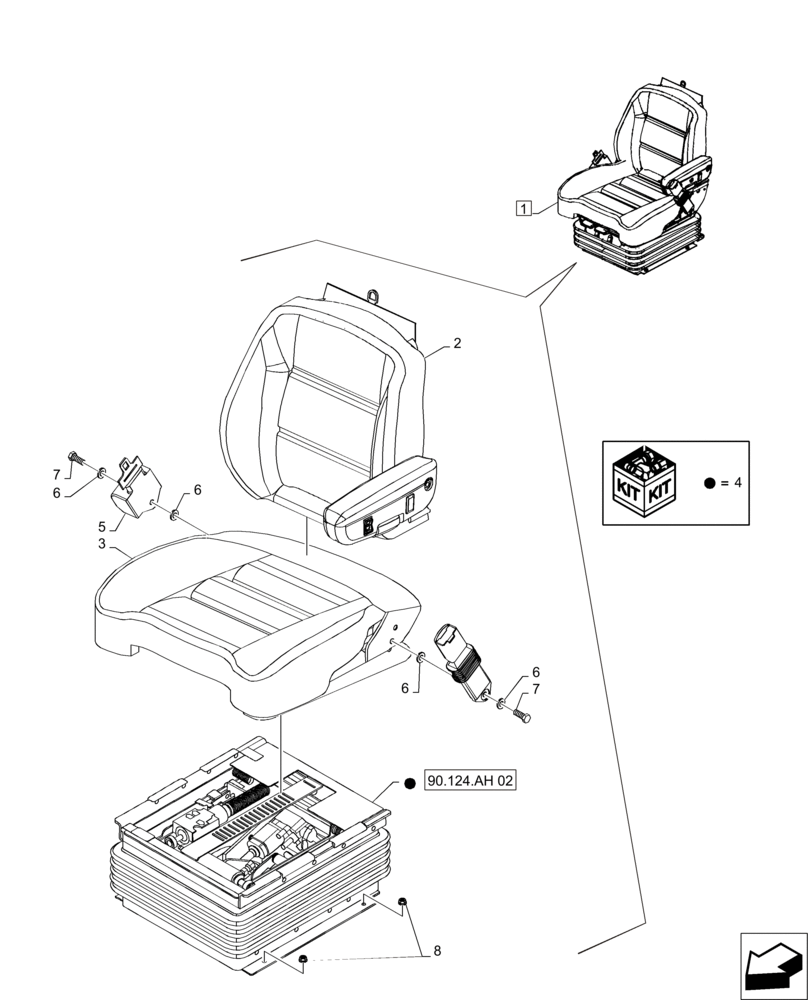

Схема запчастей Case IH MAGNUM 235 - (90.124.AC) - DELUXE SEAT WITH RETRACTABLE BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
6
4
1
6
2
6
8
90.124.ah 02
7
3
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84380417

DRIVER SEAT

Incl 2 - 8

1шт.

2

84392249

SEAT CUSHION

1шт.

3

84392247

SEAT CUSHION

1шт.

4

84406039

SERVICE KIT

Assy

1шт.

5

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
