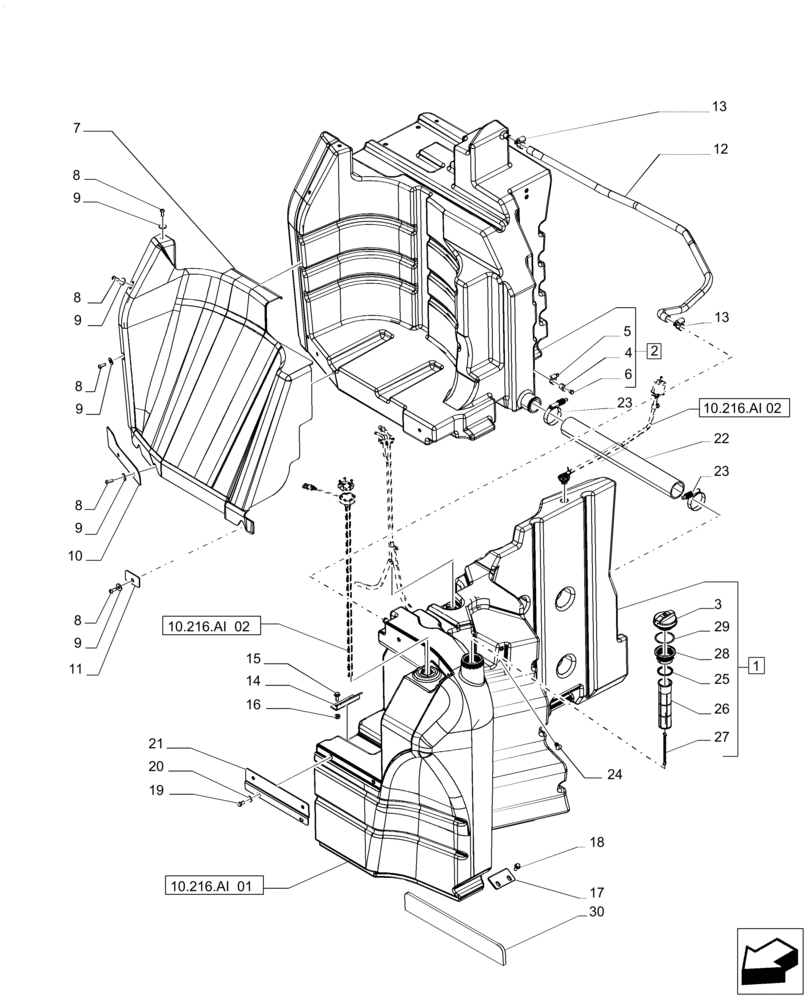

Запчасти Case IH MAGNUM 235 (10.216.AI[03]) - FUEL TANKS & MOUNTING, T2 WITH POWERSHIFT TRANSMISSION (10) - ENGINE

1

47777579

FUEL TANK

Incl 3, 25 - 29

1шт.

2

47821488

FUEL TANK

Incl 4 - 6

1шт.

3

84602136

CAP

1шт.

4

87752134

REDUCER

1шт.

5

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

6

87752135

DRAIN PLUG

1шт.

7

47623589

COVER

, Start Serial: HCCZM235HDCM18417

1шт.

8

87675525

SCREW,BTN HD, M8 x 1.25 x 20mm, Cl 12.9

6шт.

9

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

6шт.

10

84417017

BRACKET

1шт.

11

47625886

BRACKET

, Start Serial: HCCZM235HDCM18417

1шт.

12

84416988

FUEL HOSE

1шт.

13

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

14

84253788

BRACKET

2шт.

15

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

16

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

17

243779A4

LARGE PLATE

3шт.

18

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

6шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

21

84267334

MOUNTING PLATE

1шт.

22

84271159

HOSE,63.5mm ID x 639mm L, SAE 30R6

1шт.

23

L115548

CLAMP,57.15mm - 79.38mm

2шт.

24

87529297

CLIP

4шт.

25

47592129

WASHER

1шт.

26

84575373

FUEL FILTER

1шт.

27

84546017

CHAIN (AG)

1шт.

28

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

30

87721300

BASE PLATE

3шт.
