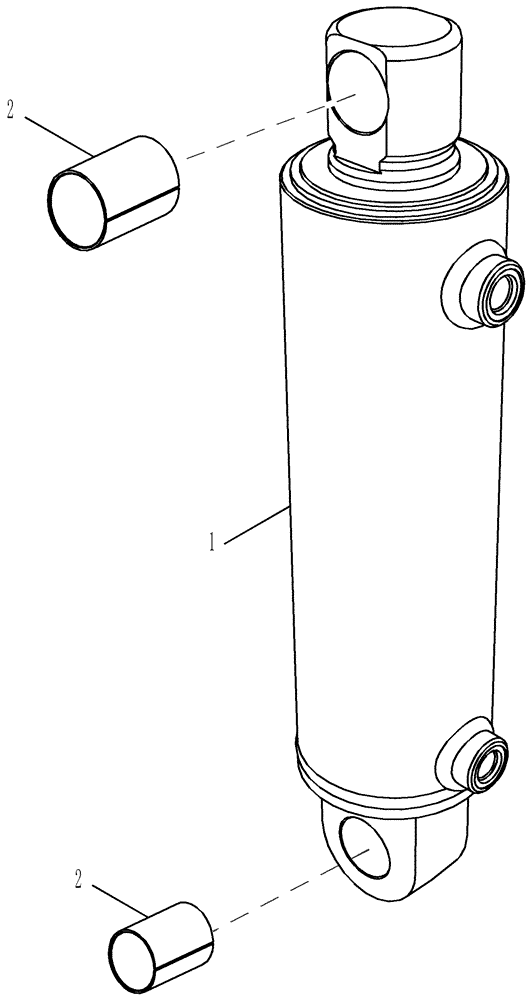

Запчасти Case IH MAGNUM 255 (08-25) - CYLINDER ASSEMBLY - HITCH (95 MM) (08) - HYDRAULICS

1

87542725

CYLINDER,Double Acting, 63.5mm Rod, 260.4mm Stroke

95 mm ID x 111 mm OD x 260 mm Stroke, Part Number Stamped on Cylinder, Inc. 2 - 5

2шт.

1

87542725R

REMAN-HYD CYLINDER

MAGNUM 255 TRACTOR (EMERGING MARKET) (1/06)

2шт.

1

87542725C

CORE-HYD CYLINDER

Return Number

2шт.

2

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

2шт.

3

87708872

SEAL KIT

Seal Kit (Not Shown)

1шт.

4

87708873

RING

Ring (Not Shown)

1шт.

5

87708874

RING

Retaining Ring (Not Shown)

1шт.
