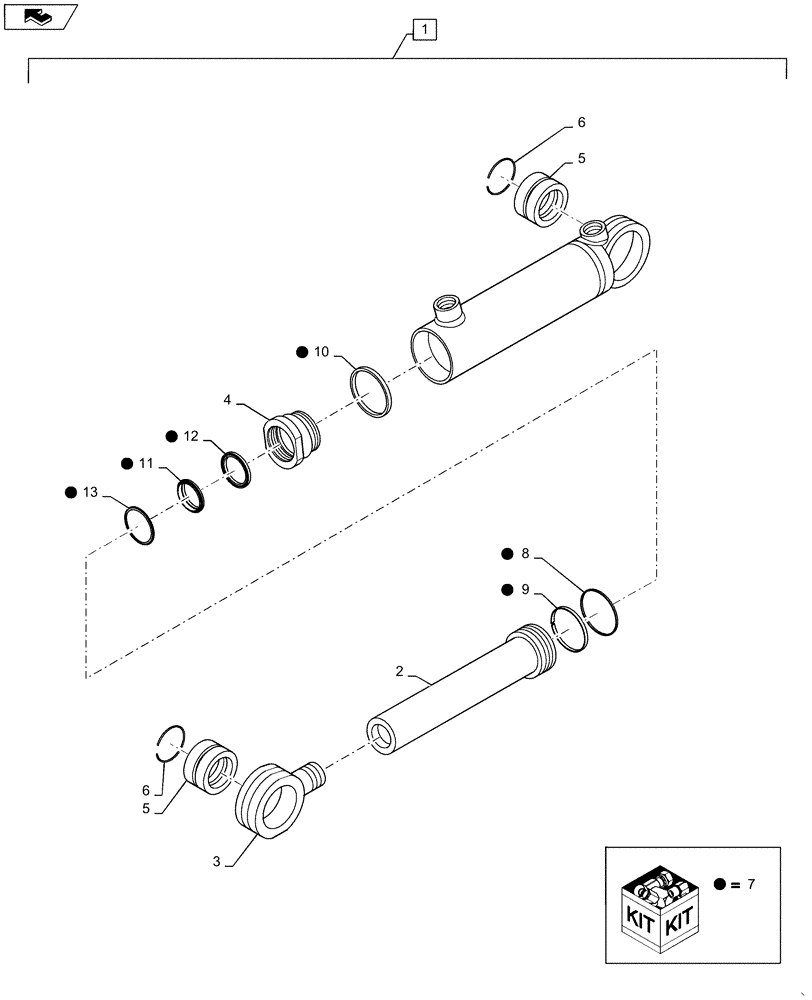

Запчасти Case IH MAGNUM 260 (25.122.AB[01]) - VAR - 420228 CNH CYLINDER, AXLE SUSPENSION, CLASS 4.75 (25) - FRONT AXLE SYSTEM

1

84365647

HYDRAULIC CYLINDER,Double Acting, 55mm Rod, 219mm Stroke

Saddle Suspension, CL 4.75; Inc. 2 - 13, Continued on Figure 25.122.AB 01

1шт.

2

47496457

PISTON ROD

1шт.

3

47496459

EYE

1шт.

4

47496458

CYLINDER END CAP

2шт.

5

47475862

BALL JOINT

2шт.

6

47475863

RING

2шт.

7

47496460

SEAL KIT

Saddle Suspension, CL4.75; Incl 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON SEAL; Incl in 7

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE RING; Incl in 7

1шт.

10

NSS

NOT SOLD SEPARAT

STATIC SEAL; Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

SECONDARY ROD SEAL; Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

PRIMARY ROD SEAL; Incl in 7

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER; Incl in 7

1шт.
