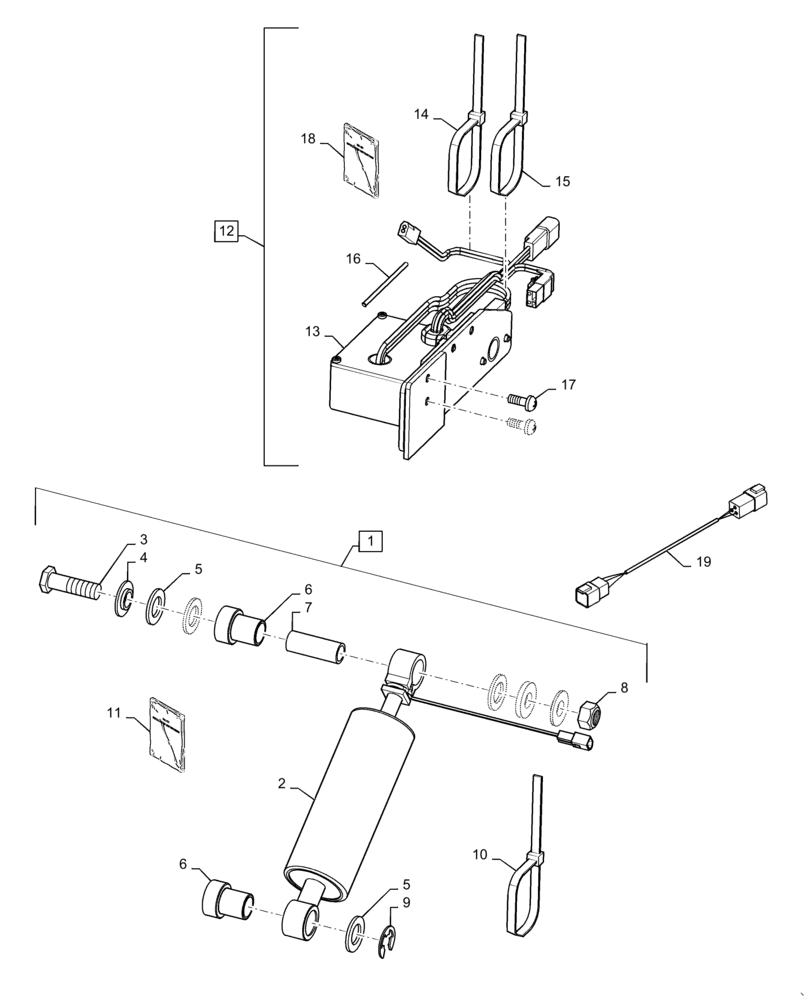

Запчасти Case IH MAGNUM 2654 (90.120.BB[06]) - VAR - 429373, 449058 - SEAT, AIR SUSPENSION - CONTROL DAMPER ASSY. - DELUXE SEMI-ACTIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86994260

SERVICE KIT

Ride Control Shock, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Shock, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Washer, Spacer, Incl in 1

6шт.

6

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Lock Nut, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Retaining Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Cable Tie, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Instructions, Incl in 1

1шт.

12

87395396

DAMPER

Kit, Control, Incl 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

Control Dampening, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Cable Tie, Incl in 12

2шт.

15

NSS

NOT SOLD SEPARAT

Cable Tie, Incl in 12

2шт.

16

NSS

NOT SOLD SEPARAT

Tubing, Heat Shrink, Incl in 12

2шт.

17

NSS

NOT SOLD SEPARAT

Screw, Pan Hd., #10 x .50 Phillips, Incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Instructions, Incl in 12

1шт.

19

87626130

HARNESS

Ride Control Mode Selector

1шт.
