(21.105.BC[01]) - FILTER ASSY, TRANSMISSION, POWERSHIFT

Запчасти Case IH MAGNUM 280 (21.105.BC[01]) - FILTER ASSY, TRANSMISSION, POWERSHIFT (21) - TRANSMISSION

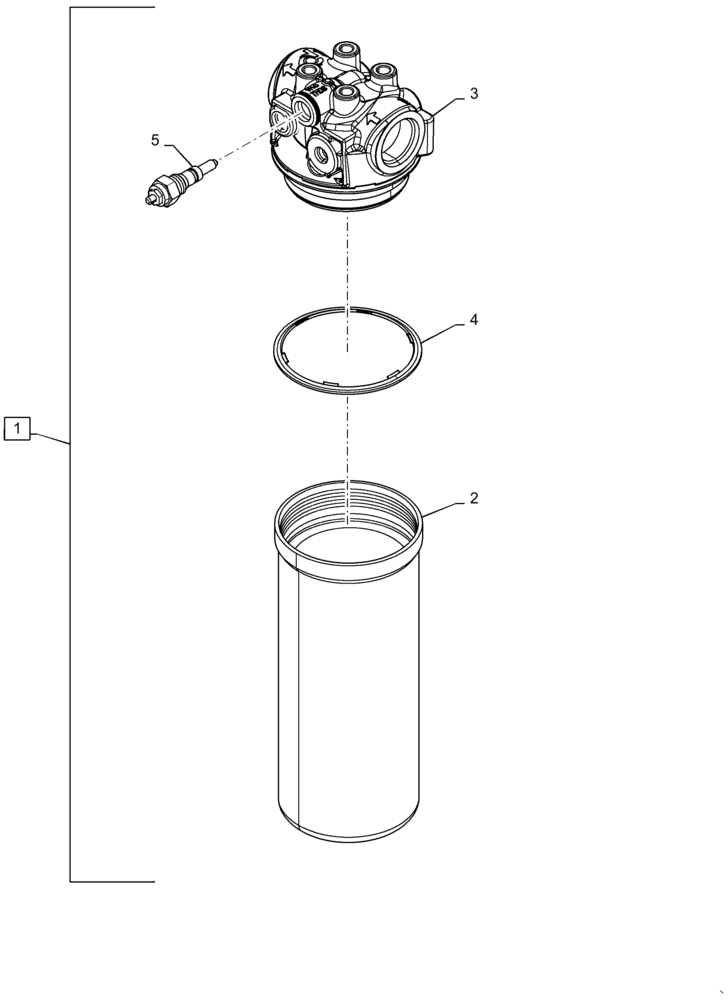

Схема запчастей Case IH MAGNUM 280 - (21.105.BC[01]) - FILTER ASSY, TRANSMISSION, POWERSHIFT (21) - TRANSMISSION
4
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47768619

FILTER ASSY

Transmission, Hydraulic Oil, Powershift, Incl 2 - 5

1шт.

2

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

Element

1шт.

3

47768620

FILTER HEAD

1шт.

4

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

5

1957801C1

PRESSURE SWITCH

1шт.

Выбрано товаров: 5
