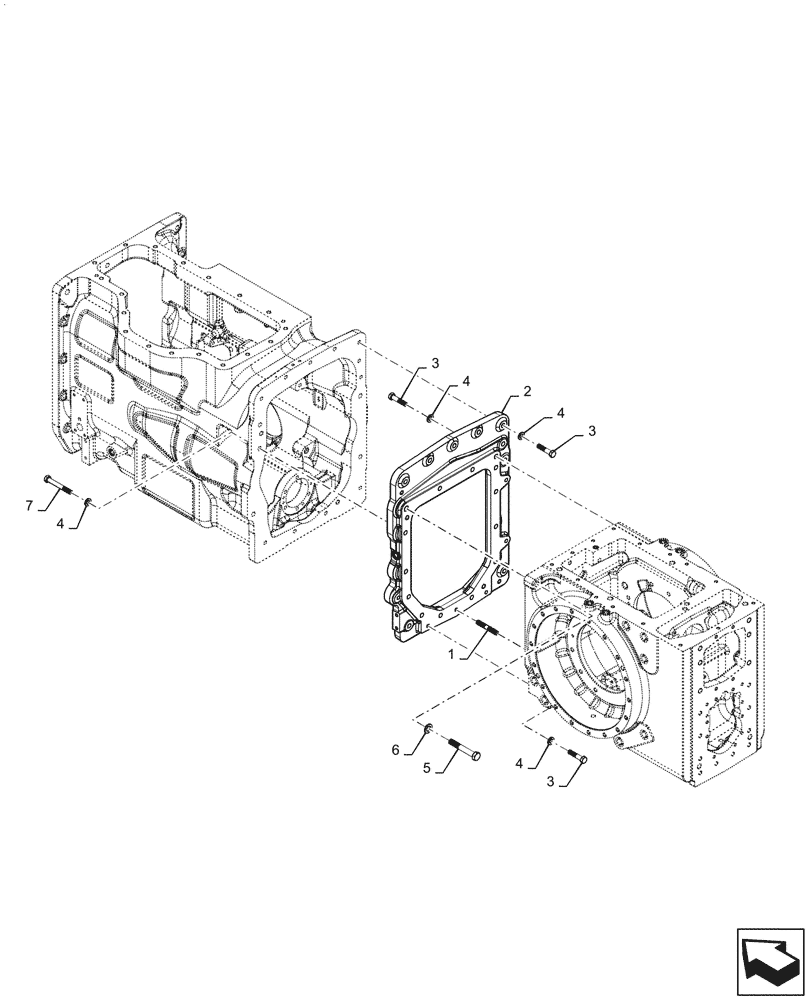

Запчасти Case IH MAGNUM 310 (21.504.AQ[02]) - VAR - 429334, 429335 - TRANSMISSION - CVT - STANDARD FINAL DRIVE ADAPTER PLATE - ASN ZFRF03732 (21) - TRANSMISSION

1

47819480

STUD,M16 x 2 x 105mm, Cl 10.9

1шт.

2

47631445

ADAPTER

CVT Transmission to Standard Final Drive

1шт.

3

47682458

BOLT,M16 x 2 x 70mm, Cl 12.9

24шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

25шт.

5

87341998

BOLT,Hex, M20 x 130mm, Cl 10.9

1шт.

6

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

7

47682597

BOLT,M16 x 2 x 120mm, Cl 12.9

1шт.
