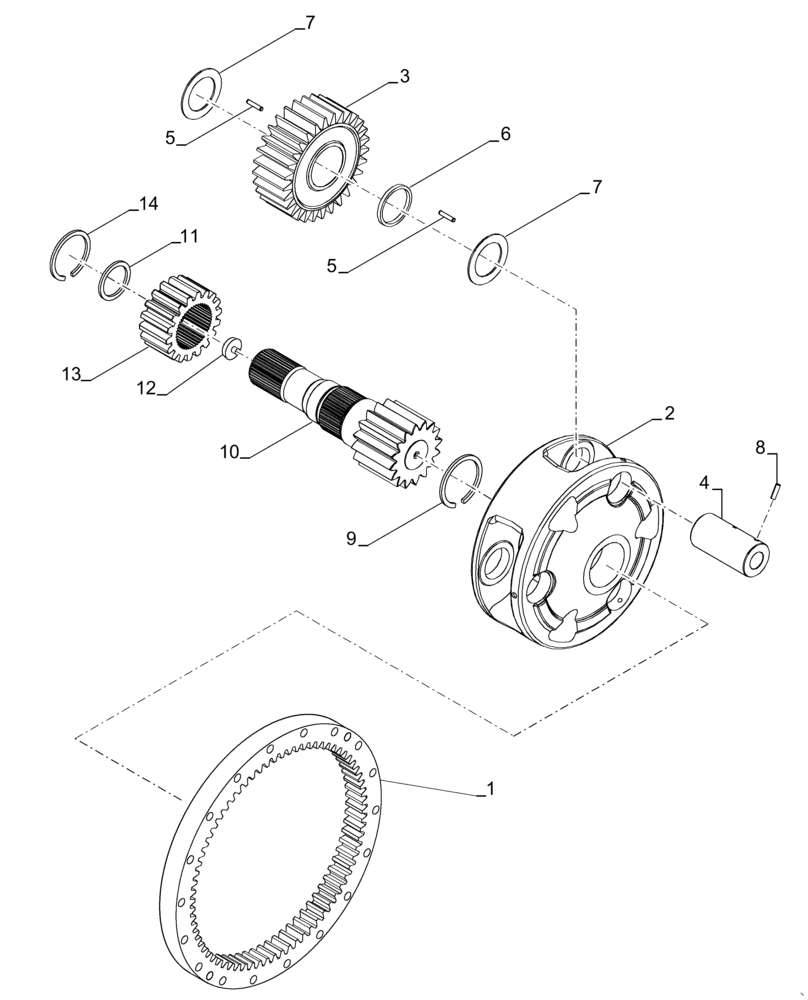

Запчасти Case IH MAGNUM 340 (27.120.AF[03]) - REAR AXLE, PLANETARY - MAGNUM 340 (27) - REAR AXLE SYSTEM

1

310695A1

RING GEAR,77T

2шт.

2

388366A1

PINION CARRIER

GEAR CARRIER

2шт.

3

87738713

PLANETARY GEAR

6шт.

4

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

6шт.

5

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

396шт.

6

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

Nylon

6шт.

7

84214687

WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Steel, Service Only, Replaces Black Plastic Thrust Washer This Application

12шт.

8

838-3826

PIN,M8 x 26, Coiled

6шт.

9

101-11350

SNAP RING,#350, Ext

2шт.

10

395481A1

GEAR SHAFT

16T, Left Hand

1шт.

10

395481A1

GEAR SHAFT

16T, Right Hand

1шт.

11

1259753C1

THRUST WASHER

2шт.

12

1981327C1

PLUG

Sun Shaft Locator, Right Hand Only

1шт.

13

1259732C1

HUB,47T Internal/18T External

2шт.

14

101-11275

SNAP RING,#275, 2.594, Ext

2шт.
