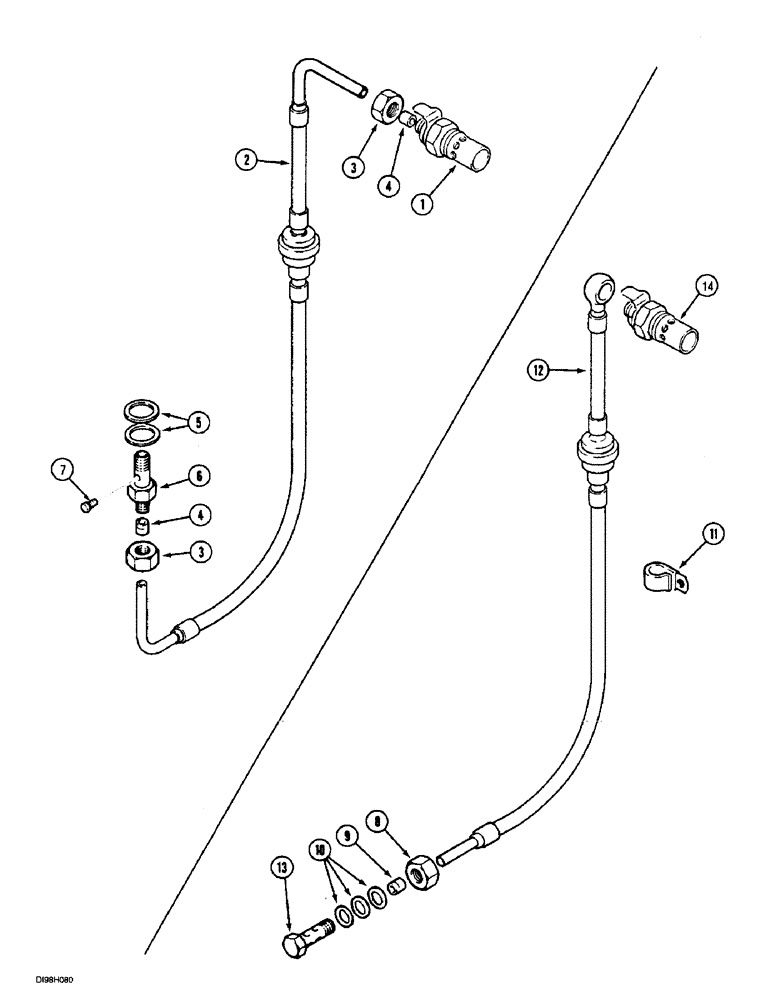

Запчасти Case IH 5150 (2-098) - THERMOSTART ATTACHMENT (02) - ENGINE

1

J914809

HEATER PLUG

ELEMENT, 20329, 5120, Engine No. : - 52110449

1шт.

2

J914810

TUBE,4.76 mm OD x 330, 38 mm L

20329 Engine No. : - 52160700

1шт.

3

A77614

TUBE NUT

3/8 NF

1шт.

4

A77613

SEAL

1шт.

5

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

2шт.

6

A189226

BANJO BOLT

CONNECTOR, 20329 Engine No. : - 52160700

1шт.

7

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

6x10 mm, 20329 Engine No. : - 52160700

1шт.

8

A77614

TUBE NUT

3/8 NF

1шт.

9

A77613

SEAL

SEAL

1шт.

10

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

3шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

20329 Engine No. : 52160701 -

2шт.

12

131979A2

HOSE ASSY.

20329 Engine No. : 52160701 -

1шт.

13

131998A1

BANJO BOLT,M12 x 1.5 x 38mm

BOLT banjo, 20329 Engine No. : 52160701 -

1шт.

14

A77616

GLOW PLUG

ELEMENT, 20329, 5120, Engine No. : 52110450 -

1шт.

14

A77616

GLOW PLUG

ELEMENT, 20329, 5130, 5140, 5150

1шт.
