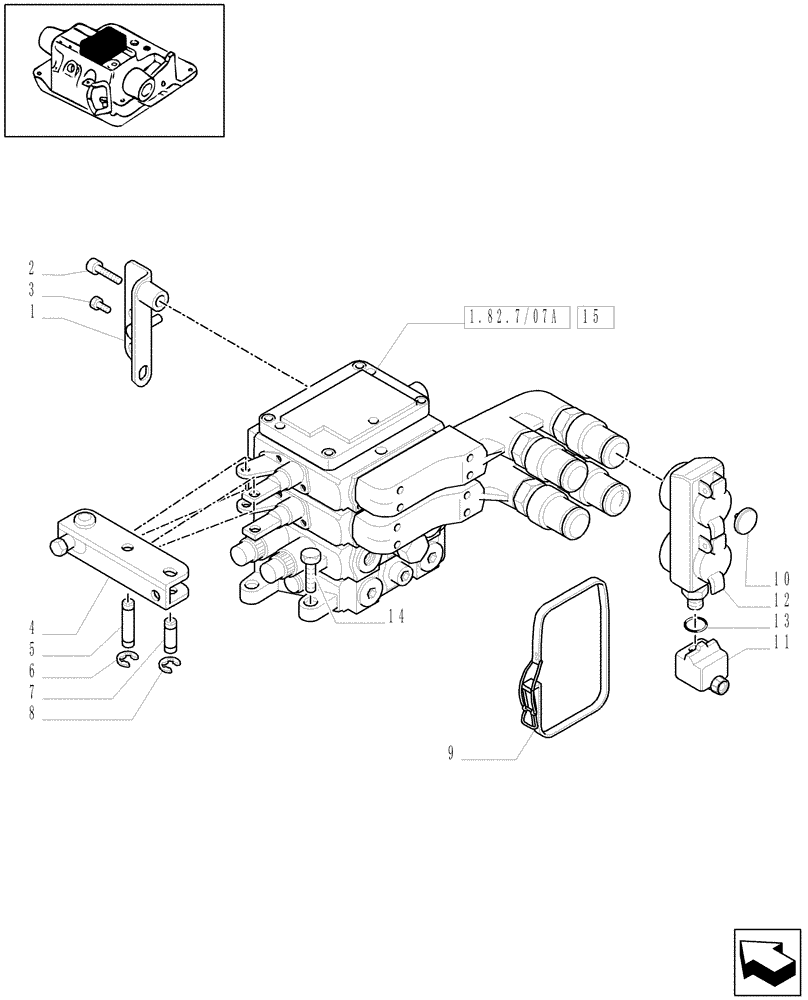

Запчасти Case IH MAXXUM 100 (1.82.7/07[01]) - 2 REMOTES FOR FIXED DISPLACEMENT PUMP AND EDC AND RELEVANT PARTS - C6788 (VAR.330849) (07) - HYDRAULIC SYSTEM

1

87390554

STOP

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

2шт.

5

5193177

PIN,6mm OD x 29.48mm L

2шт.

6

11063971

SPRING CLIP,M6

D=6

4шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

2шт.

8

11065676

SNAP RING,M8, Ext

4шт.

9

82031973

SPRING CLIP

1шт.

10

82029895

DISC,20mm D, Black

Black

2шт.

11

82031972

RESERVOIR, HYDRAULIC

100MM wide, Serial Range: -C5736

2шт.

11

87652228

RESERVOIR, HYDRAULIC

, Serial Range: D5736-C6264

2шт.

11

84161329

BOTTLE

, Start Serial: D6264

2шт.

12

82035718

DUST CAP

Incl. 10, Serial Range: -C5909

2шт.

12

87733574

DUST CAP

Incl. 10, Start Serial: D5909

2шт.

13

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

87312720

CONTROL VALVE

ASSY

1шт.
